SKU: T8293C

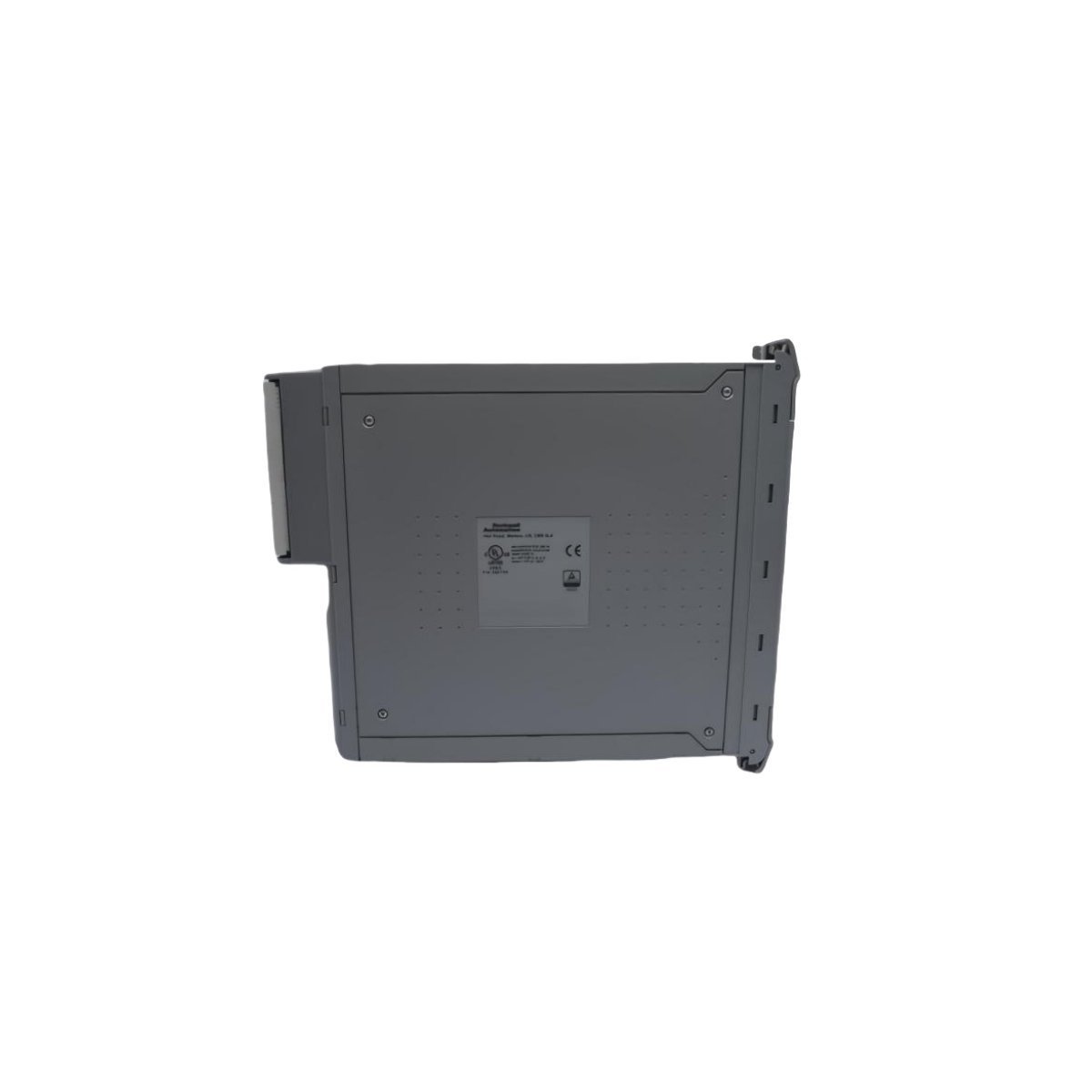

ICS Triplex Trusted T8293C Power Distribution Unit

The ICS Triplex T8293C is a high-integrity Power Distribution Unit for the Trusted TMR system. It provides redundant 24 VDC power management, advanced branch circuit monitoring, and active short-circuit protection, ensuring continuous uptime and SIL 3 safety compliance for critical industrial controllers.

Critical Energy Management for TMR Architectures

The ICS Triplex T8293C functions as the primary energy management hub for the Trusted Triple Modular Redundant (TMR) controller platform. By coordinating the delivery of stabilized 24 VDC power across the system backplane, this Power Distribution Unit (PDU) ensures that every processing and I/O module receives a consistent electrical supply. Furthermore, the T8293C manages redundant power feeds, effectively isolating the internal system bus from external voltage fluctuations or source failures. Because the unit serves as a high-integrity gateway, it prevents power-related issues from compromising the safety functions of the entire controller, which remains vital in high-stakes environments like chemical processing and offshore drilling.

Advanced Diagnostic Monitoring and Load Protection

Engineers prioritize the T8293C because it incorporates intelligent monitoring capabilities that go beyond simple electricity routing. The unit continuously tracks current consumption and voltage levels for each branch circuit, providing real-time diagnostic feedback to the main processor. In addition to monitoring, the T8293C features active current limiting and short-circuit protection to prevent a single component failure from damaging the wider system. Because the module identifies electrical anomalies instantaneously, it allows maintenance teams to pinpoint faulty field wiring or failing hardware before a total system shutdown occurs. Consequently, this proactive protection layer significantly increases the Mean Time Between Failures (MTBF) for the overall safety installation.

Industrial Resilience and Seamless System Integration

Rockwell Automation designed the ICS Triplex T8293C to endure the rigorous conditions of heavy industry, including high-vibration zones and extreme temperature swings. The module utilizes a high-density form factor that maximizes space within the Trusted chassis while maintaining superior thermal dissipation properties. Moreover, the T8293C supports hot-swappable replacement, which enables technicians to exchange power units without de-energizing the safety system or interrupting critical processes. Since the unit integrates seamlessly into the standard Trusted framework, it simplifies the task of scaling power capacity as users add more I/O modules to the configuration. This combination of rugged hardware and flexible integration makes the T8293C an indispensable component for modern, high-availability automation.
