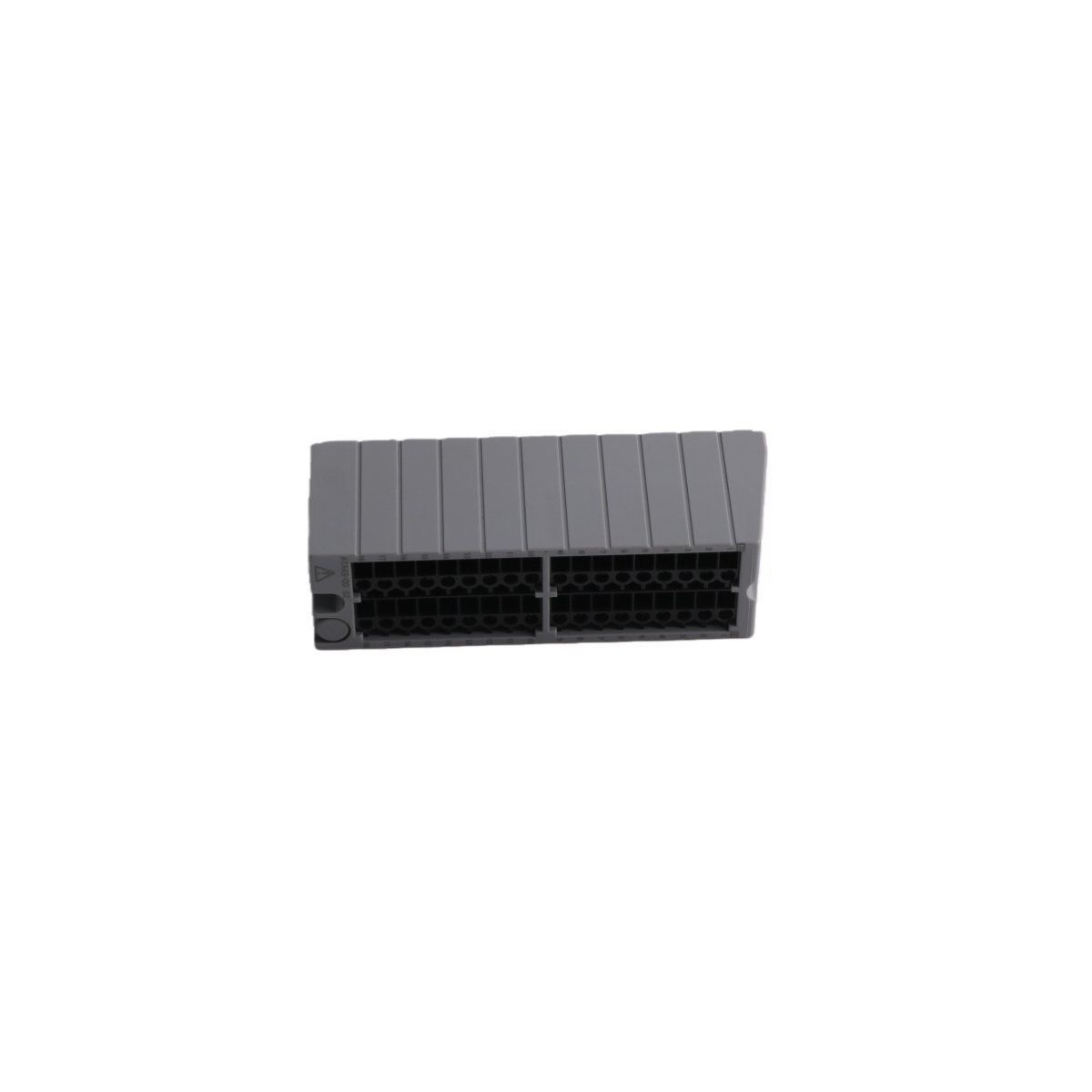

Yokogawa ATA4S-10 S2 Pressure Clamp Terminal Block Centum VP

High-Integrity Interface for Analog Signals

The Yokogawa ATA4S-10 S2 is a specialized External Terminal Block (ETB) designed specifically for the Centum VP Distributed Control System. This unit serves as the physical landing point for field wiring, bridging the connection between process instruments and the system’s I/O modules. Because analog signals are highly susceptible to electrical interference, the ATA4S-10 S2 incorporates integrated surge absorption circuitry. Consequently, this design protects the internal electronics of the DCS from voltage transients, lightning strikes, and switching surges that occur in industrial environments. By utilizing pressure clamp technology, the module ensures a gas-tight, vibration-resistant connection without the need for specialized crimping tools.

Primary Technical Specifications

• Manufacturer: Yokogawa
• Model Identification: ATA4S-10 S2
• Component Type: Pressure Clamp Terminal Block (with Surge Absorber)
• Signal Compatibility: Analog Input / Analog Output signals
• Terminal Method: Pressure Clamp (Spring-loaded)
• Number of Terminals: Optimized for 16-channel analog modules
• Surge Protection: Integrated gaseous discharge or semiconductor-based absorption
• Operational Temperature: -10°C to +55°C
• Physical Weight: 0.3 kg
• Dimensions: 3.3 cm x 10.7 cm x 13 cm
• Manufacturing Origin: Japan

Enhanced Installation and Protection Logic

Automation engineers prioritize the ATA4S-10 S2 because it significantly streamlines the cabinet assembly process. Specifically, the pressure clamp mechanism maintains constant contact force on the wire, which prevents signal flickering caused by thermal expansion or mechanical vibration. Furthermore, the “S2” hardware revision indicates enhanced dielectric properties and a more robust mounting bracket for DIN rail installations. Moreover, the integrated surge protection eliminates the need for external, rail-mounted surge arrestors, thereby saving valuable cabinet space and reducing potential failure points. Since the block is specifically tuned for analog loops, it maintains low impedance to ensure that 4-20 mA signals remain accurate and drift-free.

Essential Industrial Applications

• Remote Instrument Enclosures: Providing a secure termination point in outdoor or high-vibration environments.
• Petrochemical Refineries: Protecting critical flow and pressure loops from electrical noise and atmospheric transients.
• Power Generation: Interfacing with boiler control sensors where electromagnetic interference (EMI) is prevalent.
• Water Treatment Plants: Managing
