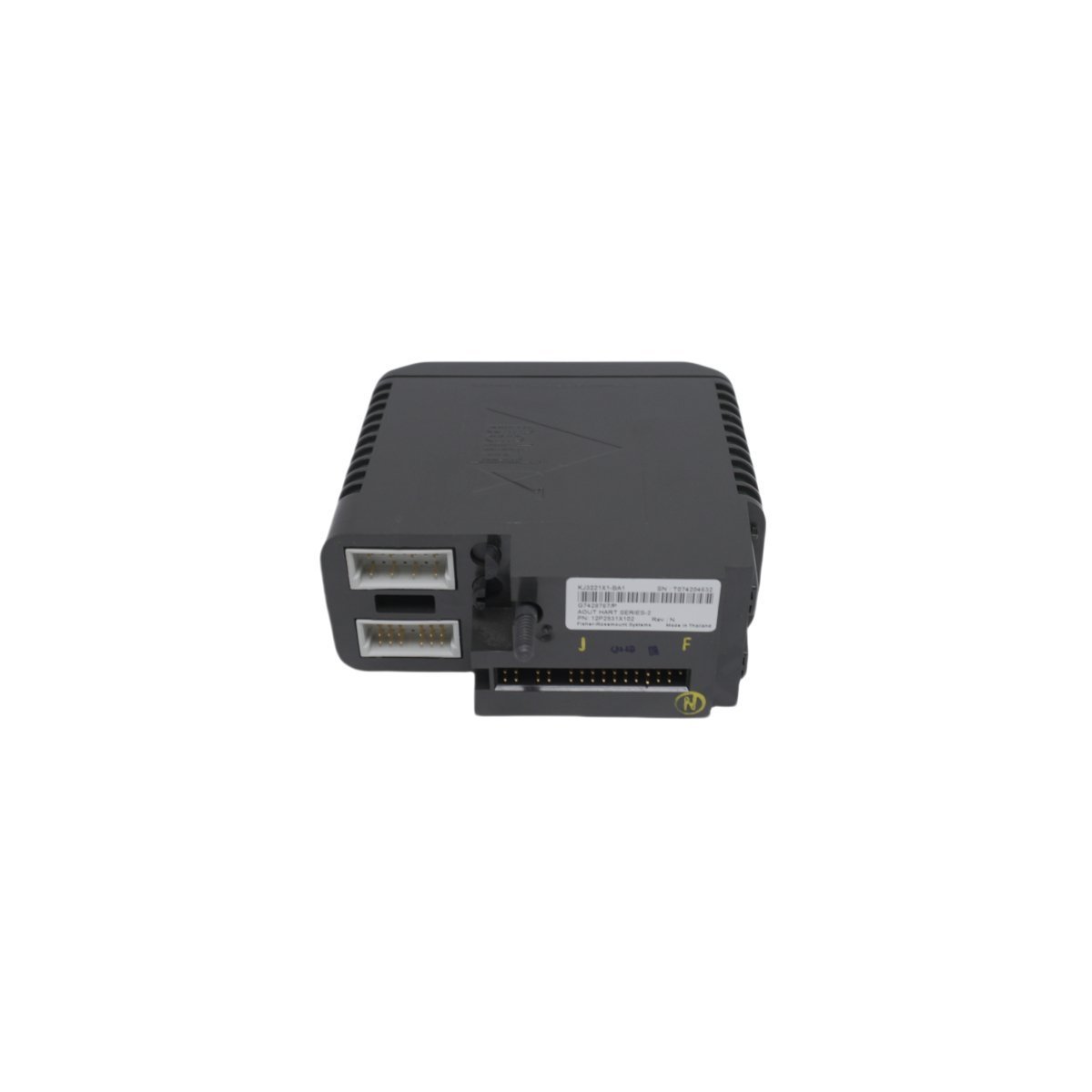

The Emerson KJ3221X1-BA1 12P2531X102, also cataloged as the KJ3221X1-BA1 12P2531X102 Terminal Block, operates as a dedicated hardware component for field signal termination and loop distribution within distributed control platform architectures.
| Parameter | Specification |
|---|---|
| Model | KJ3221X1-BA1 12P2531X102 |
| Brand | Emerson |
| Origin | USA |
| Weight | 0.2 kg |
| Dimensions | 8.1 x 7.9 x 8.8 cm |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Passive termination block |
The terminal block routes analog and discrete field wiring directly to corresponding I/O card connection points while maintaining channel-to-channel isolation to prevent electrical interference across loops. The internal pin configuration supports 4-20 mA HART loop protocol routing for remote transmitter communication and diagnostic polling. Cold junction compensation (CJC) interfaces and FOUNDATION Fieldbus or Profibus PA signal paths maintain transmission integrity without inducing loop attenuation or signal degradation.
Q: Can the terminal block be wired while system power is active on the DeltaV subsystem?
A: Field wiring changes should follow standard safety procedures, ensuring that loop power is isolated before torquing terminal screws to prevent accidental short circuits.
Q: How does the module handle high-frequency electromagnetic noise from nearby power lines?
A: Grounding lugs and integrated shielding paths drain induced noise currents away from signal conductors to protect sensitive control loop data.
Mount the unit securely onto the standard DIN rail or carrier assembly within the enclosure, ensuring that all field wiring shields connect to the designated ground bar. Check terminal screw torque values to maintain low-resistance electrical contact under high-vibration industrial conditions.
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
