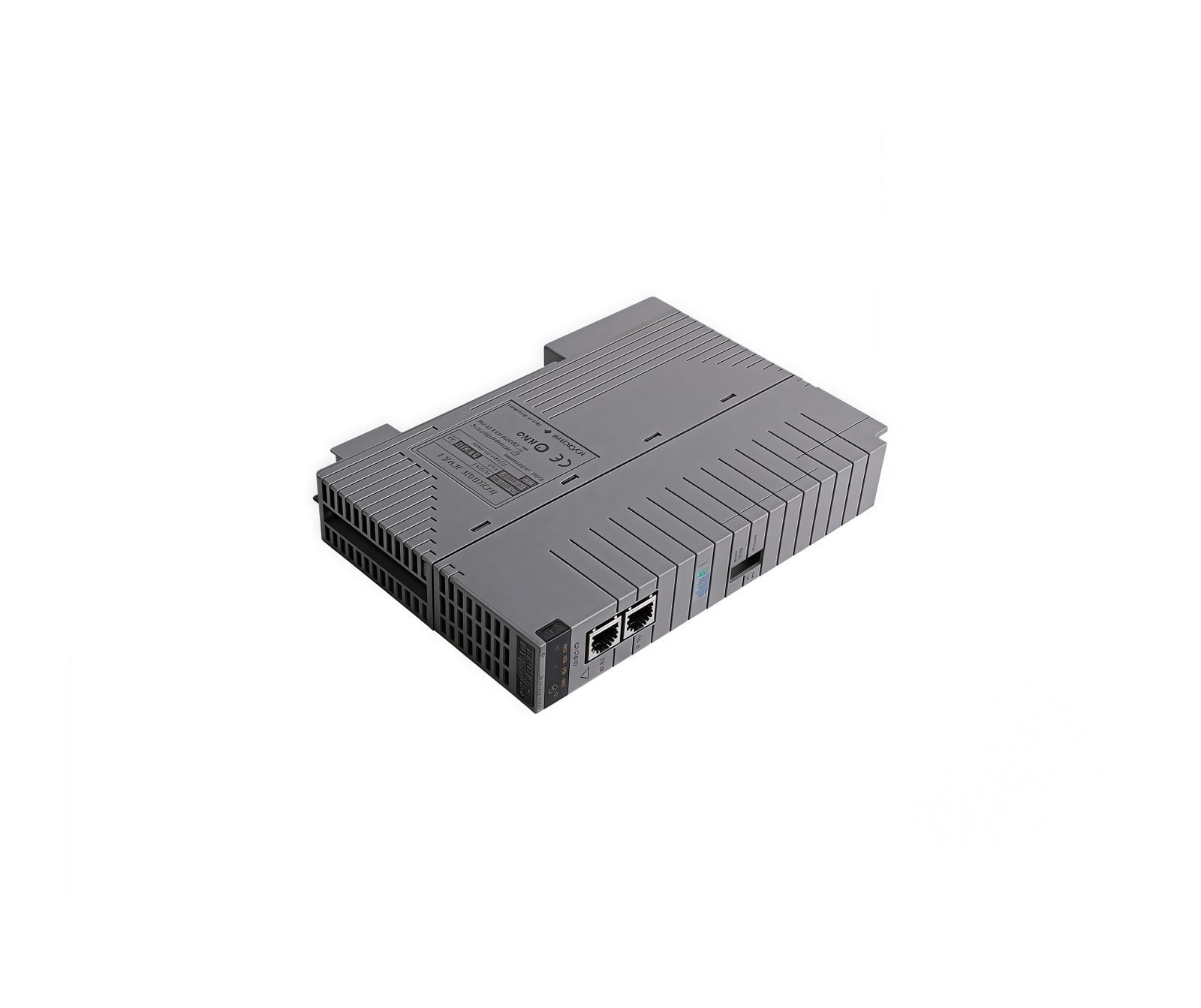

Yokogawa CP451-50 Processor Module (CPU) Centum VP

Central Processing Unit for Industrial Automation

The Yokogawa CP451-50 serves as the primary computational engine for the AFV30D and AFV30S Field Control Stations (FCS). This module executes complex control logic, manages real-time process data, and coordinates communication across the Field Interface I/O (FIO) subsystem. Because the processor utilizes a high-speed RISC architecture, it performs deterministic regulatory control and sequence management with high precision. Furthermore, the module integrates seamlessly into the Centum VP distributed control environment, facilitating stable data exchange between field instruments and the Human Interface Station (HIS).

Key Technical Characteristics

• Processor Clock Speed: 100 MHz high-efficiency core.
• System Memory: 128 MB main memory featuring Error-Correcting Code (ECC) technology.
• I/O Handling Capacity: Manages up to 128 local I/O points and coordinates up to 16 expansion nodes.
• Redundancy Support: Specifically designed for dual-redundant configurations to ensure bumpless failover.
• Data Integrity: Incorporates dedicated hardware diagnostics to monitor internal parity and circuit health.
• Physical Specifications: Weighs approximately 0.7 kg with a standard width of 5.1 cm.
• Legacy Compatibility: Supports existing AFV300 and AFV400 system backplanes for simplified upgrades.

Operational Reliability and Fail-Safe Mechanisms

Maintenance engineers prefer the CP451-50 because it prioritizes system uptime through hardware-level self-monitoring. Specifically, the module utilizes a dedicated redundancy link that maintains constant synchronization between primary and standby processors. Consequently, if the active unit encounters a hardware fault, the standby unit assumes control within milliseconds without disrupting the process loop. Moreover, the module includes front-facing status LEDs that provide immediate visual feedback regarding CPU readiness and communication health. Since the memory architecture includes ECC, the system automatically corrects single-bit errors, which prevents logic corruption in high-EMI industrial environments.

Industrial Applications and Integration

• Refinery Control: Overseeing continuous distillation and cracking processes with high-reliability PID loops.
• Chemical Synthesis: Executing intricate batch control sequences and safety interlock logic.
• Power Generation: Managing burner management systems (BMS) and turbine auxiliary control.
• Water Utilities: Controlling distributed pump stations and large-scale filtration systems through long-distance FIO links.
