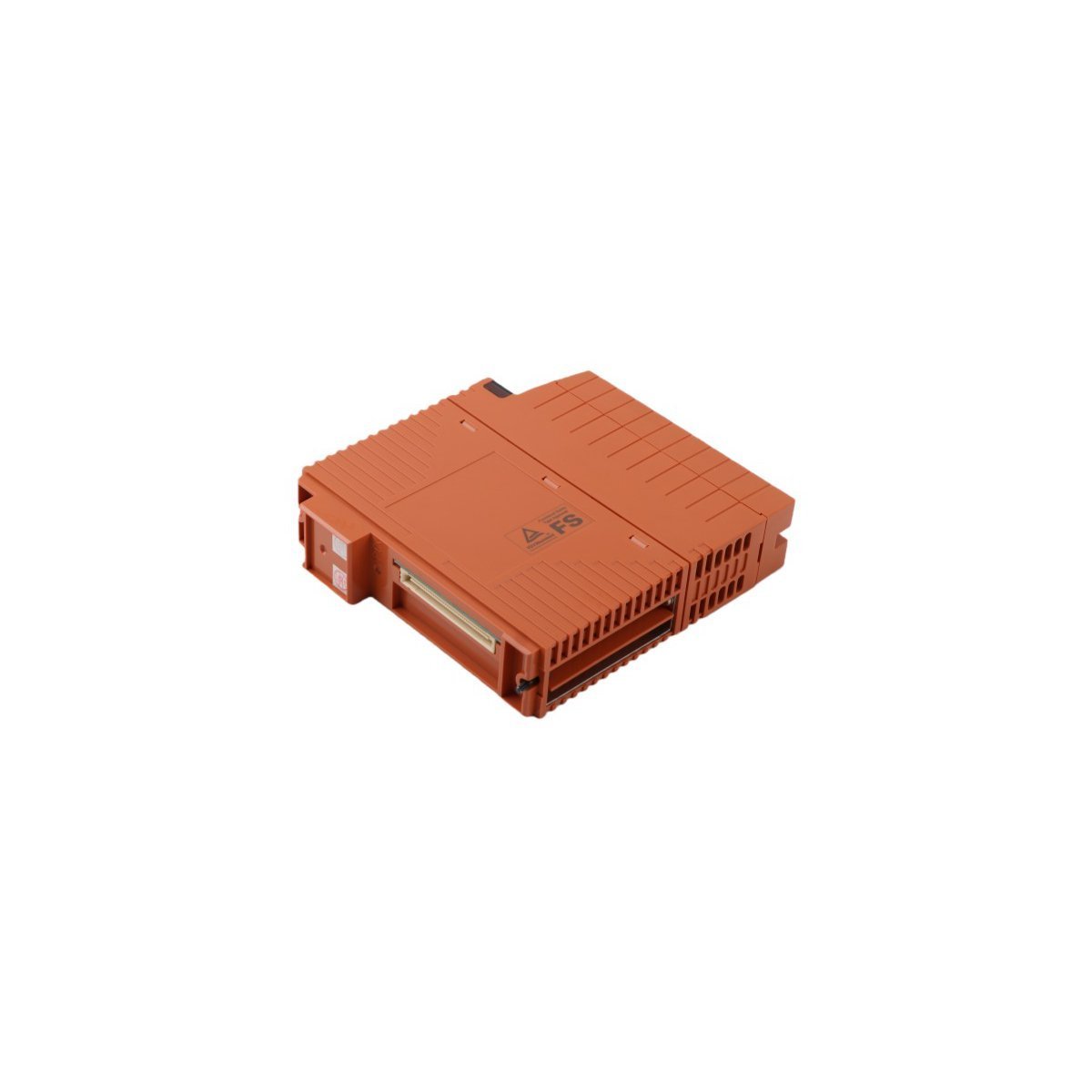

Yokogawa SSB401-13 ESB Bus Interface Module

Technical Overview

The Yokogawa SSB401-13 functions as a high-speed ESB (Extended Serial Backplane) Bus Interface Module for Centum VP and ProSafe-RS architectures. As a slave interface, this module bridges safety node units and the main controller’s ESB bus. It processes safety-critical data packets at high velocities, ensuring the logic solver receives real-time information from remote I/O nodes without latency.

High-Speed Data Integrity

To meet modern safety instrumented system (SIS) demands, the SSB401-13 operates at a transmission speed of 128 Mbps. This bandwidth enables the system to manage up to thirteen safety node units simultaneously on a single segment. The module employs specialized signal conditioning to maintain data integrity over ESB bus cables, shielding the signal from electromagnetic interference typically found in power plants and refineries.

Redundancy and Safety Compliance

Following IEC 61508 standards, the SSB401-13 supports a dual-redundant architecture. In mission-critical setups, engineers install two SSB401 modules to create redundant communication paths. If a path or module fails, the system automatically switches to the secondary line to maintain the safety function. This fault tolerance supports:

• Emergency Shutdown (ESD): Closes safety valves immediately during a trip.
• Fire and Gas (F&G): Maintains constant communication with detection sensors.
• Burner Management (BMS): Executes fail-safe logic for industrial boilers.

Technical Specifications

• Manufacturer: Yokogawa
• Model Number: SSB401-13
• Module Type: ESB Bus Interface Module (Slave)
• Transmission Speed: 128 Mbps
• Max Node Capacity: 13 Safety Node Units
• Redundancy: Supports dual-redundant communication
• Weight: 0.3 kg
• Dimensions: 3.3cm x 10.7cm x 13cm
• Country of Origin: Japan
• Safety Standard: Complies with SIL 3 (IEC 61508)

Strategic Applications

The SSB401-13 serves as a foundational component for distributed safety architectures. Engineers specify this module to:

• Expand I/O capacity within Yokogawa Centum VP DCS environments.
• Link remote safety nodes to a centralized ProSafe-RS controller.
• Prevent overpressure events in petrochemical processing through high-speed logic.
• Protect turbines and synchronize shutdown logic in power generation facilities.
