330103-00-06-10-12-05 Product datasheet
Model number: | 330103-00-06-10-12-05 | Module Type： | Proximity Probes | |
Manufacture: | Bently Nevada | Condition： | Brand New | |
Range of Product: | 3300 Proximity Transducer System | Lead time： | In Stock | |
Weight: | 0.08 kg | HS CODE： | 8537101190 | |
Dimension: | 1.8×1.5x112cm | MOQ: | 1 | |
Product Origin: | USA | System： | TSI | |
Discontinued on: | active | Communication Service: | Ethernet router |
330103-00-06-10-12-05 Functional Description

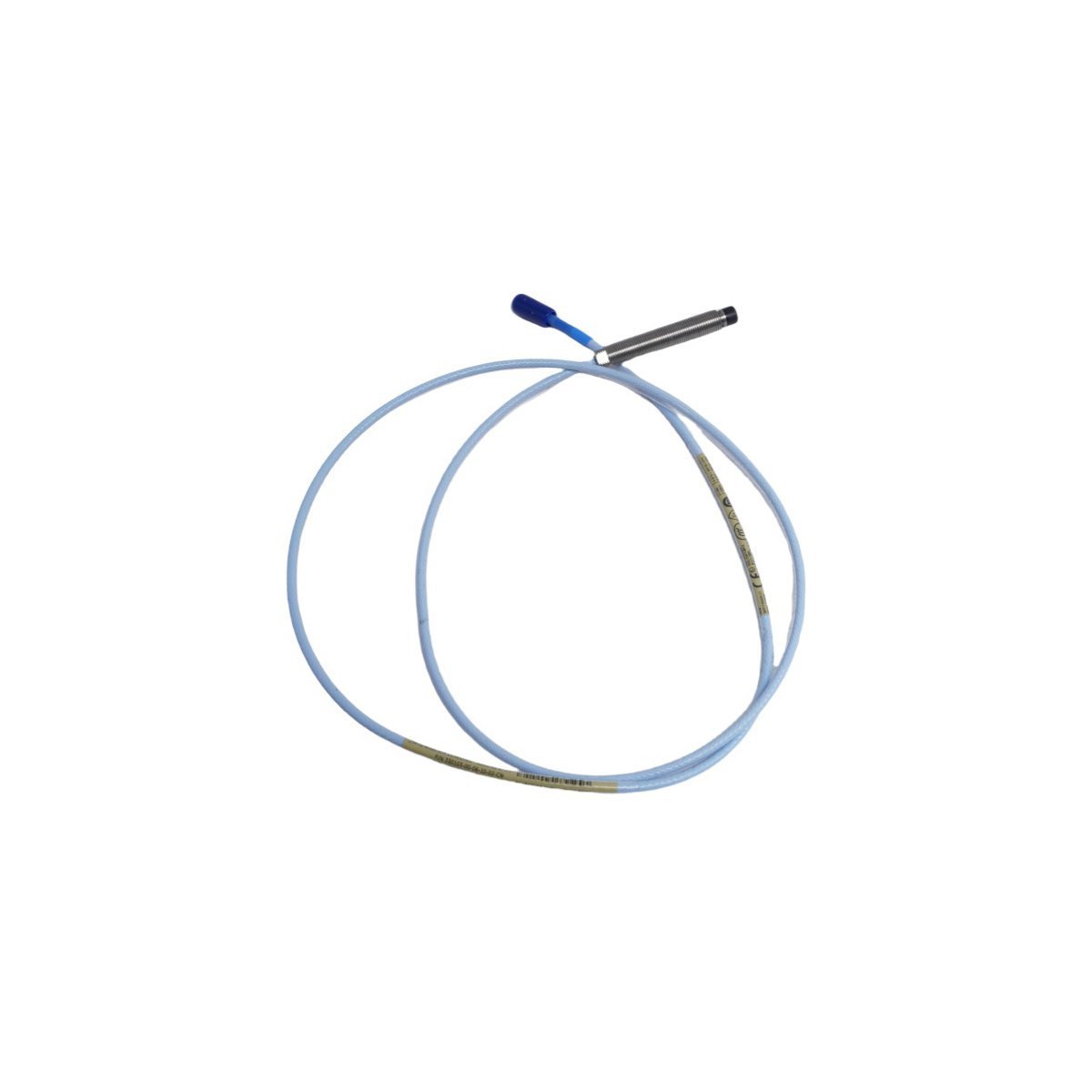

The Bently Nevada 330103-00-06-10-12-05 Proximity Probesis a complete 8mm proximity transducer system that delivers exceptional performance for critical industrial applications. This system consists of three key components: an 8mm probe, extension cable, and Proximitor sensor, working together to provide precise measurements of both static position and dynamic vibration in rotating machinery.
The 3300 Series 330103-00-06-10-12-05fully complies with API 670 requirements for mechanical configuration and measurement accuracy. The system’s eddy current technology generates output voltages directly proportional to target distance, ensuring reliable data for condition monitoring and predictive maintenance programs.
The Bently Nevada Proximity Probes 330103-00-06-10-12-05offers complete component interchangeability, eliminating the need for time-consuming bench calibration. Its backward compatibility with 3300 series 5mm probes provides installation flexibility when space constraints prevent using standard 8mm probes.
With its dual measurement capability, the Bently Nevada 330103-00-06-10-12-05 serves both vibration analysis and Keyphasor reference applications. The 330103-00-06-10-12-05 BENTLY NEVADA PDFrepresents the industry benchmark for machinery protection in power generation, oil & gas, and heavy industrial applications.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 89477-30 is a specialized interconnect cable engineered for the 3500 Machinery Protection System. Its primary function is to establish a high-integrity communication link between a 3500/42M Proximitor/Seismic Monitor and its corresponding rear-mounted I/O module. The cable transmits raw, unamplified dynamic vibration and axial position signals from the I/O module's input terminals to the monitor's processing circuitry. It concurrently carries the -24 Vdc power from the monitor to the I/O module, which in turn powers the connected Proximitor probes. The 89477-30 is constructed as a multi-conductor, shielded assembly to ensure high signal-to-noise ratio (SNR) and protect the low-amplitude transducer signals from electromagnetic interference (EMI) and radio-frequency interference (RFI) prevalent in industrial environments. This robust shielding is critical for the accuracy of sub-mil (micrometer) level measurements required for effective machinery diagnostics and protection. The cable's specific length and keyed connectors ensure proper installation and signal path integrity within the 3500 rack architecture.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 89477-30 |
| Product Type | Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 3.0 meters (9.8 feet) |
| Connector Type | Multi-pin, keyed D-subminiature with jackscrew locking mechanisms |
| System Compatibility | Bently Nevada 3500/42M Proximitor/Seismic Monitor and associated I/O modules |
| Cable Construction | Multi-conductor, 22 AWG, with overall foil and/or braid shielding |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Signal Type | Transmits dynamic transducer signals (vibration, position) and DC power |
| Application Environment | For internal use within 3500 system racks; not rated for field installation |
In Oil & Gas and Power Generation applications, the 89477-30 interconnect cable demonstrates high reliability essential for continuous machinery protection. Its performance is defined by its ability to maintain signal integrity in environments with significant electrical noise and mechanical vibration. The cable's robust construction, featuring secure locking connectors and comprehensive shielding, prevents signal degradation and intermittent connections, which are potential sources of false trips or missed alarms in a protection system. The specified operating temperature range of -30°C to +65°C ensures stable performance within control cabinets and rack rooms that experience thermal cycling. The reliability of the 89477-30 is a critical factor in the overall safety integrity level (SIL) rating of the 3500 system, as it provides the foundational data link for detecting incipient faults such as bearing wear, imbalance, and shaft cracks in critical rotating assets.
Q: What systems is the 89477-30 compatible with?
A: The 89477-30 interconnect cable is designed exclusively for the Bently Nevada 3500 Machinery Protection System. It specifically facilitates the connection between a 3500/42M Proximitor/Seismic Monitor and its corresponding I/O module (e.g., 3500/42M I/O with Internal Terminations). It is not designed or validated for use with other Bently Nevada system series (such as 3300) or any third-party monitoring equipment.
Q: What are the installation requirements?
A: Installation must be performed by a qualified instrumentation technician familiar with the 3500 system. The cable is to be routed within the 3500 rack, ensuring it is not pinched, kinked, or subjected to tension. Adhere to a minimum bend radius of 10 times the cable's outer diameter. The keyed connectors prevent incorrect mating; do not apply force if resistance is met. After seating the connectors, fully tighten the jackscrews to prevent disconnection from cabinet vibration. Route the 89477-30 cable away from high-voltage AC power wiring to further mitigate any risk of noise induction.
The Bently Nevada 200350-12-00-00 is a general-purpose, case-mounted industrial accelerometer designed for measuring absolute bearing housing or machine casing vibration. It utilizes a piezoelectric sensing element that generates a low-impedance voltage signal directly proportional to the acceleration of the component to which it is mounted. This analog voltage signal is transmitted via a two-wire system, which also supplies constant current power to the sensor's internal electronics (IEPE standard). The 200350-12-00-00 is specifically engineered for integration with Bently Nevada machinery protection systems, such as the 3500 series. It directly interfaces with the 3500/42M Proximitor/Seismic Monitor, which processes the raw acceleration signal. The monitor can then provide real-time acceleration data or perform single integration to derive velocity, a common parameter for assessing rotating machinery health. Constructed from 316L stainless steel with a hermetic seal, the 200350-12-00-00 is built to withstand harsh industrial environments, ensuring reliable signal transmission and long operational life in critical machinery monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 200350-12-00-00 |
| Product Type | Accelerometers |
| Condition | Brand New |
| Warranty | 12 Months |
| Sensitivity | 10.2 mV/m·s⁻² (100 mV/g) ±5% |
| Frequency Response | 0.5 Hz to 10 kHz (±3 dB) |
| Measurement Range | ±490 m/s² (±50 g) peak |
| Power Requirement (IEPE) | 18 to 30 VDC, 2 to 10 mA Constant Current |
| Connector | 2-pin MIL-C-5015, Top Exit |
| Operating Temperature Range | -55 °C to +121 °C (-67 °F to +250 °F) |
| Case Material | 316L Stainless Steel, Hermetically Sealed |
In Oil & Gas and Power Generation applications, the 200350-12-00-00 provides essential data for condition monitoring of critical assets like gas and steam turbines, compressors, pumps, and generators. Its reliability is substantiated by its robust construction; the hermetically sealed 316L stainless steel housing (rated to IP68) prevents ingress of moisture, chemicals, and particulates common in these environments. The sensor is designed for high MTBF (Mean Time Between Failures) through the use of solid-state electronics and minimal moving parts. Environmentally, the 200350-12-00-00 is specified to operate reliably from -55 °C to +121 °C, accommodating a wide range of ambient and machine surface temperatures. It is also designed to survive high-g shock events (up to 5000 g peak), ensuring data integrity is maintained even during machinery startup, shutdown, or upset conditions.
Q: What systems is the 200350-12-00-00 compatible with?
A: The 200350-12-00-00 is designed for primary compatibility with Bently Nevada monitoring systems, including the 3500 Machinery Protection System (interfacing with the 3500/42M Proximitor/Seismic Monitor) and the 3300 Monitoring System. It is also compatible with any third-party data acquisition or monitoring system that can provide standard IEPE (Integrated Electronics Piezo-Electric) sensor power, specifically a constant current source of 2 to 10 mA at a voltage of 18 to 30 VDC.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The mounting surface must be a flat, smooth (recommended finish of 0.8 μm / 32 μin Ra), and clean area on the machine case. A single mounting hole must be drilled and tapped for the sensor's 1/4-28 UNF mounting stud. Apply a thin, uniform layer of coupling fluid (silicone grease) to the mounting surface to eliminate air gaps and ensure optimal vibration transmission. The sensor must be tightened to the specified torque of 2.7 to 5.4 N·m (24 to 48 lbf·in) using a calibrated torque wrench. Ensure the interconnecting cable is routed to prevent strain on the connector and is shielded from high-voltage lines or other sources of electromagnetic interference. Use of conduit is recommended for physical protection.
The Bently Nevada 84661-67 is a specialized interconnect cable engineered for the transmission of low-level analog signals from Velomitor piezo-velocity sensors to a machinery protection system. Its primary function is to provide a reliable, noise-immune physical link between a sensor mounted on rotating machinery and a monitoring module, such as the Bently Nevada 3500/42M. The cable is constructed with a shielded, twisted-pair configuration using 22 AWG conductors. This design is critical for preserving the integrity of the millivolt-level velocity signal by minimizing interference from electromagnetic (EMI) and radio frequency (RFI) sources common in industrial environments. The 84661-67 cable transmits the dynamic voltage signal proportional to the machine's case vibration velocity, enabling the 3500 system to perform accurate vibration analysis and machinery diagnostics. The cable features a ruggedized jacket for resistance to industrial chemicals and abrasion, and its specific length and connectorization are designed for seamless integration without field modification, ensuring consistent system performance and measurement accuracy.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 84661-67 |
| Product Type | Velomitor Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 67 feet (20.4 meters) |
| Cable Construction | Shielded, twisted pair, 22 AWG (0.34 mm²) conductors |
| Sensor End Connector | 2-socket MIL-C-5015 style, environmentally sealed |
| Monitor End Connection | Prepared leads for terminal block installation on 3500/42M I/O module |
| Shielding | Overall aluminum/polyester foil shield with tinned copper drain wire |
| Jacket Material | Chlorinated Polyethylene (CPE) for oil and chemical resistance |
| Operating Temperature Range | -30°C to +100°C (-22°F to +212°F) |
In Oil & Gas and Power Generation applications, the 84661-67 interconnect cable demonstrates high reliability and signal fidelity under demanding operational conditions. Its robust CPE jacket provides protection against hydrocarbons, corrosive chemicals, and mechanical abrasion frequently encountered in these environments. The specified operating temperature range of -30°C to +100°C ensures consistent performance from cold startups to high-temperature operating conditions near turbines, compressors, and pumps. The cable's shielding effectiveness is critical for transmitting clean, low-noise vibration signals from Velomitor sensors, which is essential for the accurate detection of machinery faults such as imbalance, misalignment, and bearing degradation. Proper installation, including correct shield grounding at the monitor end only, prevents ground loops and ensures the high signal-to-noise ratio required for the advanced diagnostic algorithms within the 3500 monitoring system.
Q: What systems is the 84661-67 compatible with?
A: The 84661-67 cable is designed primarily for use with the Bently Nevada 3500 Machinery Protection System, connecting directly to the terminal block of a 3500/42M Velomitor/Seismic Monitor I/O Module. It is compatible with Bently Nevada Velomitor sensors, including the 330500 and 330525 models, and other piezo-velocity sensors that utilize a 2-pin MIL-C-5015 style connector and have similar output characteristics.
Q: What are the installation requirements?
A: Proper installation is critical for signal integrity. 1) Route the 84661-67 cable in dedicated instrument trays or conduit, separated from high-voltage power cables to prevent induced noise. 2) The cable shield drain wire must be terminated at the instrument ground (GND) terminal on the 3500/42M I/O module. Do not connect the shield at the sensor end to prevent ground loops. 3) Ensure the connector at the sensor is fully seated and the locking ring is tightened to maintain the environmental seal. 4) Secure the cable with appropriate clamps to provide strain relief and prevent vibration-induced damage to the cable or connectors. Adhere to a minimum bend radius of 10 times the cable's outer diameter.
The Bently Nevada 31000-16-05-00-100-03-02 is a proximity probe housing assembly designed for the physical protection and precise positioning of eddy current proximity probes. Its primary function is to provide a rigid, environmentally sealed conduit for mounting a probe to a machine case, enabling accurate measurement of shaft vibration and position. Constructed from 303 stainless steel, the housing offers high resistance to corrosion and physical damage common in industrial environments. This specific assembly, part number 31000-16-05-00-100-03-02, features a 3/4-14 NPT male thread for mounting into the machine case, ensuring a secure and pressure-tight fit. The housing allows for fine adjustment of the probe's distance to the target surface, which is critical for setting the correct DC gap voltage. The signal from the probe, which is an integral part of a complete transducer system, is transmitted through an extension cable to a Proximitor sensor. The Proximitor demodulates this signal into a voltage proportional to the gap, which is then fed into a Bently Nevada 3500 Machinery Protection System for continuous monitoring, analysis, and alarming.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-05-00-100-03-02 |
| Product Type | Proximity Probe Housing Assemblies |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Standoff Adapter Length | 10.0 inches (254 mm) |
| Total Case Length | 2.1 inches (53 mm) |
| Probe Compatibility | Designed for Bently Nevada 3300 XL 8 mm Proximity Probes |
| Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
The 31000-16-05-00-100-03-02 housing assembly is engineered for high reliability in demanding industrial settings. In Oil & Gas applications, its 303 stainless steel construction and NPT threaded connection provide excellent resistance to corrosive agents such as hydrogen sulfide (H2S) and ensure pressure containment when installed correctly. In Power Generation environments, the assembly maintains positional stability for the probe across the wide operating temperatures associated with steam and gas turbines, preventing measurement drift due to thermal expansion. The rigid design protects the sensitive probe tip and extension cable from external impact and high vibration, directly contributing to the high Mean Time Between Failures (MTBF) of the overall vibration measurement channel. When installed in accordance with Bently Nevada installation procedures, the housing assembly supports the intrinsic safety and hazardous area certifications of the complete transducer system, making it suitable for deployment in classified locations.
Q: What systems is the 31000-16-05-00-100-03-02 compatible with?
A: The 31000-16-05-00-100-03-02 is an integral component of the Bently Nevada 3300 XL Proximity Transducer System. This system, which includes the probe, extension cable, and a 3300 XL Proximitor Sensor, is designed for direct interface with the Bently Nevada 3500 Machinery Protection System. It is also fully compatible with the legacy 3300 monitoring system. The analog voltage output from the associated Proximitor Sensor can also be integrated with other third-party PLCs, DCS, and data acquisition systems capable of processing a -2 to -18 Vdc signal.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The machine case requires a mounting hole drilled and tapped for a 3/4-14 NPT thread. An appropriate thread sealant must be applied to the housing's male NPT threads to ensure a pressure-tight seal. The housing is then threaded into the machine case and tightened. The proximity probe is inserted into the housing and its axial position is adjusted to achieve the correct DC gap voltage, typically -10 Vdc for a standard 3300 XL 8 mm probe configuration. Once the gap is set, the probe is secured within the housing using its set screws. Proper system grounding, as detailed in Bently Nevada documentation, is mandatory for signal integrity.
The Bently Nevada 330104-00-14-10-11-00 Proximity Probes is a genuine industrial component.
