330881-28-08-090-00-02 Product datasheet
Model number: | 330881-28-08-090-00-02 | Module Type： | PROXPAC XL Proximity Transducer | |
Manufacture: | Bently Nevada | Condition： | Brand New | |
Range of Product: | 3300 Proximity Transducer System | Lead time： | In Stock | |
Weight: | 1.4 kg | HS CODE： | 8537101190 | |
Dimension: | 32.02x12x9.14cm | MOQ: | 1 | |
Product Origin: | USA | System： | TSI | |
Discontinued on: | active | Communication Service: | Ethernet router |
330881-28-08-090-00-02 Functional Description

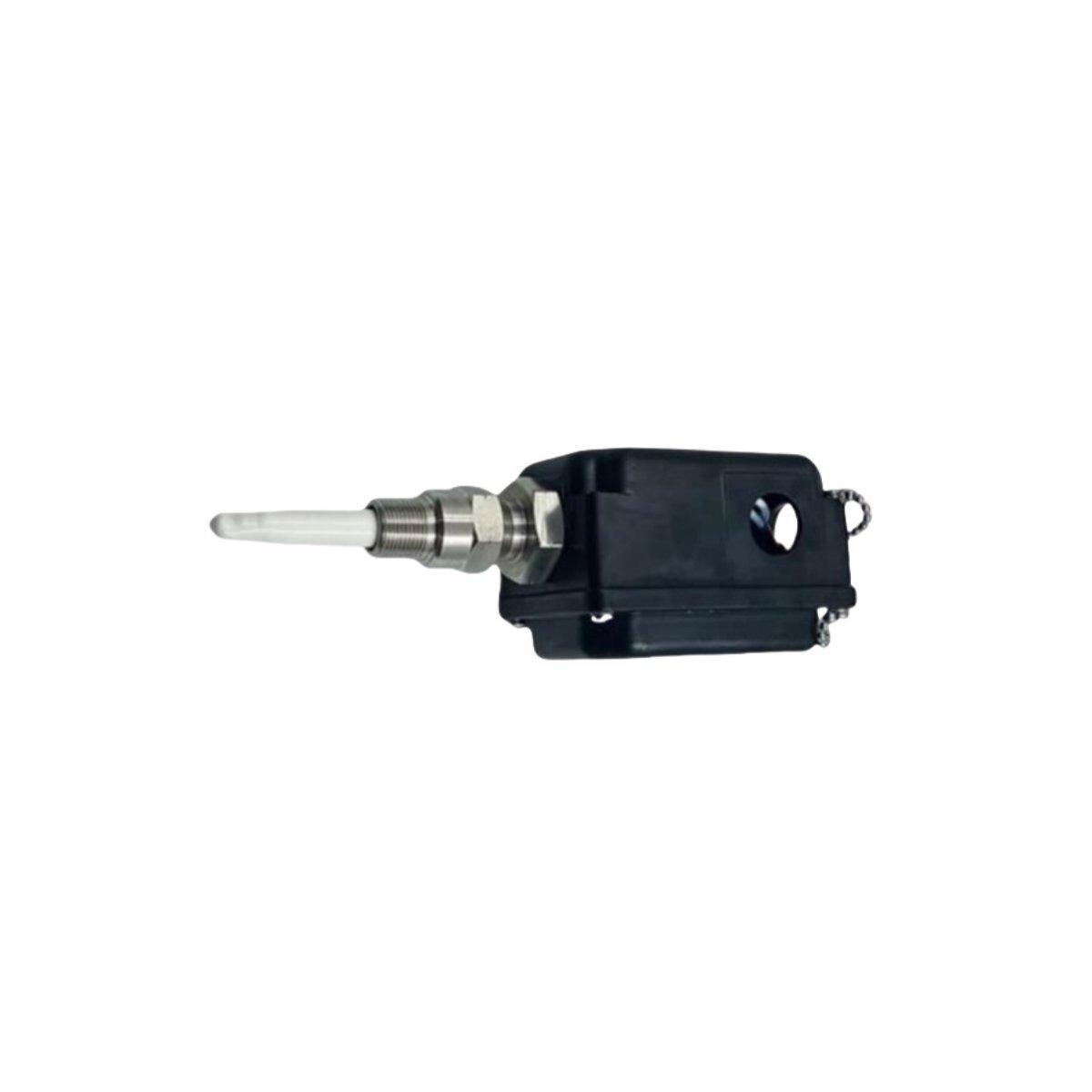

The Bently Nevada 330881-28-08-090-00-02 PROXPAC XL Proximity Transduceris a sophisticated vibration sensor designed to monitor the condition of critical machinery in industrial settings. Known for its durability and precision, this sensor is widely used in applications requiring continuous monitoring and performance tracking. With its robust design, the 330881-28-08-090-00-02 Bently Nevadaprovides highly accurate data that is essential for early fault detection and preventive maintenance.
The 3300 Series Bently Nevada 330881-28-08-090-00-02allows operators to assess machine health in real-time, enabling proactive measures to prevent costly downtime. This sensor’s ability to integrate with various machinery makes it an ideal choice for industries such as power generation, oil and gas, and manufacturing.
The Proximity Transducer 330881-28-08-090-00-02stands out for its reliability and versatility. It is built to withstand harsh environments while maintaining high-performance standards. Its integration into condition monitoring systems ensures that operators can make informed decisions about machinery maintenance and repairs.
Overall, the PROXPAC XL Proximity Transducer 330881-28-08-090-00-02is a crucial component in ensuring the longevity and efficiency of industrial machinery. Its precise measurements and rugged design provide a comprehensive solution for monitoring equipment health in demanding industrial applications.
The Bently Nevada 89477-30 is a specialized interconnect cable engineered for the 3500 Machinery Protection System. Its primary function is to establish a high-integrity communication link between a 3500/42M Proximitor/Seismic Monitor and its corresponding rear-mounted I/O module. The cable transmits raw, unamplified dynamic vibration and axial position signals from the I/O module's input terminals to the monitor's processing circuitry. It concurrently carries the -24 Vdc power from the monitor to the I/O module, which in turn powers the connected Proximitor probes. The 89477-30 is constructed as a multi-conductor, shielded assembly to ensure high signal-to-noise ratio (SNR) and protect the low-amplitude transducer signals from electromagnetic interference (EMI) and radio-frequency interference (RFI) prevalent in industrial environments. This robust shielding is critical for the accuracy of sub-mil (micrometer) level measurements required for effective machinery diagnostics and protection. The cable's specific length and keyed connectors ensure proper installation and signal path integrity within the 3500 rack architecture.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 89477-30 |
| Product Type | Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 3.0 meters (9.8 feet) |
| Connector Type | Multi-pin, keyed D-subminiature with jackscrew locking mechanisms |
| System Compatibility | Bently Nevada 3500/42M Proximitor/Seismic Monitor and associated I/O modules |
| Cable Construction | Multi-conductor, 22 AWG, with overall foil and/or braid shielding |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Signal Type | Transmits dynamic transducer signals (vibration, position) and DC power |
| Application Environment | For internal use within 3500 system racks; not rated for field installation |
In Oil & Gas and Power Generation applications, the 89477-30 interconnect cable demonstrates high reliability essential for continuous machinery protection. Its performance is defined by its ability to maintain signal integrity in environments with significant electrical noise and mechanical vibration. The cable's robust construction, featuring secure locking connectors and comprehensive shielding, prevents signal degradation and intermittent connections, which are potential sources of false trips or missed alarms in a protection system. The specified operating temperature range of -30°C to +65°C ensures stable performance within control cabinets and rack rooms that experience thermal cycling. The reliability of the 89477-30 is a critical factor in the overall safety integrity level (SIL) rating of the 3500 system, as it provides the foundational data link for detecting incipient faults such as bearing wear, imbalance, and shaft cracks in critical rotating assets.
Q: What systems is the 89477-30 compatible with?
A: The 89477-30 interconnect cable is designed exclusively for the Bently Nevada 3500 Machinery Protection System. It specifically facilitates the connection between a 3500/42M Proximitor/Seismic Monitor and its corresponding I/O module (e.g., 3500/42M I/O with Internal Terminations). It is not designed or validated for use with other Bently Nevada system series (such as 3300) or any third-party monitoring equipment.
Q: What are the installation requirements?
A: Installation must be performed by a qualified instrumentation technician familiar with the 3500 system. The cable is to be routed within the 3500 rack, ensuring it is not pinched, kinked, or subjected to tension. Adhere to a minimum bend radius of 10 times the cable's outer diameter. The keyed connectors prevent incorrect mating; do not apply force if resistance is met. After seating the connectors, fully tighten the jackscrews to prevent disconnection from cabinet vibration. Route the 89477-30 cable away from high-voltage AC power wiring to further mitigate any risk of noise induction.
The Bently Nevada 330703-00-100-10-11-CN is an 11 mm eddy current proximity probe designed for non-contact displacement and vibration measurement on rotating machinery. It functions as a core component of the 3300 XL 11 mm Transducer System, which also includes a matched extension cable and a 3300 XL 11 mm Proximitor Sensor. The system operates on the eddy current principle, where the Proximitor Sensor emits a high-frequency radio frequency (RF) signal through the probe and extension cable. This signal radiates from the probe tip, creating an electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's impedance. The Proximitor Sensor demodulates this signal to produce a DC voltage directly proportional to the gap between the probe tip and the target surface. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for real-time analysis of radial vibration, axial position, and shaft speed. The 330703-00-100-10-11-CN features a robust stainless steel case and a chemically resistant Polyphenylene Sulfide (PPS) tip, ensuring reliability in harsh industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330703-00-100-10-11-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 4.0 mm (160 mils) |
| Scale Factor | 2.00 mV/µm (50 mV/mil) ± 6.5% |
| Total Length | 1.0 metre |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Connector Type | Miniature coaxial ClickLoc™ connector, gold-plated |
| Agency Approval | CN Ex (China Ex) for hazardous area installations |
The 330703-00-100-10-11-CN proximity probe is engineered for high reliability in demanding industrial applications, particularly within Oil & Gas and Power Generation sectors. Its 11 mm tip provides a larger linear measurement range and is well-suited for monitoring large shaft diameters or applications requiring a greater standoff distance. The probe's construction ensures operational integrity across a wide temperature range, with the probe tip rated for -51 °C to +177 °C (-60 °F to +351 °F). The 3300 XL system design provides enhanced immunity to radio frequency interference (RFI/EMI), minimizing the risk of signal corruption from nearby motors, generators, or radio sources. The gold-plated ClickLoc™ connector ensures a secure, corrosion-resistant connection that prevents intermittent signals caused by vibration. When installed and maintained according to manufacturer specifications, the system demonstrates high Mean Time Between Failures (MTBF) and is a critical component for machinery protection systems (MPS) and condition monitoring programs, compliant with standards such as API 670.
Q: What systems is the 330703-00-100-10-11-CN compatible with?
A: The 330703-00-100-10-11-CN probe must be used as part of a complete Bently Nevada 3300 XL 11 mm Transducer System. This requires a matching 3300 XL 11 mm Proximitor Sensor (e.g., part number 330780) and a 3300 XL 11 mm extension cable. It is not interchangeable with components from 5 mm or 8 mm transducer systems, as the scale factor and linear range are different. The complete transducer system provides a voltage output compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as third-party PLCs, DCS, and data acquisition systems designed to accept a 3-wire, -24 Vdc powered eddy current probe input.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurements. The probe must be mounted perpendicular to the observed shaft surface using a rigid bracket. The target area on the shaft must be smooth (typically 0.4 to 0.8 µm / 16 to 32 µin Ra), free of chrome or other non-conductive plating, and clear of any residual magnetism or electrical runout. The probe must be gapped correctly by adjusting its distance to the shaft until the Proximitor Sensor output voltage is at the center of the linear range, typically -10.0 Vdc. The probe case locknut should be torqued to the specified value to prevent loosening. The integral cable and any extension cable should be secured to avoid strain on the connectors and routed away from high-voltage power cables to minimize interference.
The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-60-10-01-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 1.0 meter (3.3 feet) |
| Case Length | 6.0 inches (152 mm) |
| Mounting Option | Reverse Mount |
| Connector Type | Miniature coaxial ClickLoc™ connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1) |
In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.
Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.
Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.
The Bently Nevada 200350-12-00-00 is a general-purpose, case-mounted industrial accelerometer designed for measuring absolute bearing housing or machine casing vibration. It utilizes a piezoelectric sensing element that generates a low-impedance voltage signal directly proportional to the acceleration of the component to which it is mounted. This analog voltage signal is transmitted via a two-wire system, which also supplies constant current power to the sensor's internal electronics (IEPE standard). The 200350-12-00-00 is specifically engineered for integration with Bently Nevada machinery protection systems, such as the 3500 series. It directly interfaces with the 3500/42M Proximitor/Seismic Monitor, which processes the raw acceleration signal. The monitor can then provide real-time acceleration data or perform single integration to derive velocity, a common parameter for assessing rotating machinery health. Constructed from 316L stainless steel with a hermetic seal, the 200350-12-00-00 is built to withstand harsh industrial environments, ensuring reliable signal transmission and long operational life in critical machinery monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 200350-12-00-00 |
| Product Type | Accelerometers |
| Condition | Brand New |
| Warranty | 12 Months |
| Sensitivity | 10.2 mV/m·s⁻² (100 mV/g) ±5% |
| Frequency Response | 0.5 Hz to 10 kHz (±3 dB) |
| Measurement Range | ±490 m/s² (±50 g) peak |
| Power Requirement (IEPE) | 18 to 30 VDC, 2 to 10 mA Constant Current |
| Connector | 2-pin MIL-C-5015, Top Exit |
| Operating Temperature Range | -55 °C to +121 °C (-67 °F to +250 °F) |
| Case Material | 316L Stainless Steel, Hermetically Sealed |
In Oil & Gas and Power Generation applications, the 200350-12-00-00 provides essential data for condition monitoring of critical assets like gas and steam turbines, compressors, pumps, and generators. Its reliability is substantiated by its robust construction; the hermetically sealed 316L stainless steel housing (rated to IP68) prevents ingress of moisture, chemicals, and particulates common in these environments. The sensor is designed for high MTBF (Mean Time Between Failures) through the use of solid-state electronics and minimal moving parts. Environmentally, the 200350-12-00-00 is specified to operate reliably from -55 °C to +121 °C, accommodating a wide range of ambient and machine surface temperatures. It is also designed to survive high-g shock events (up to 5000 g peak), ensuring data integrity is maintained even during machinery startup, shutdown, or upset conditions.
Q: What systems is the 200350-12-00-00 compatible with?
A: The 200350-12-00-00 is designed for primary compatibility with Bently Nevada monitoring systems, including the 3500 Machinery Protection System (interfacing with the 3500/42M Proximitor/Seismic Monitor) and the 3300 Monitoring System. It is also compatible with any third-party data acquisition or monitoring system that can provide standard IEPE (Integrated Electronics Piezo-Electric) sensor power, specifically a constant current source of 2 to 10 mA at a voltage of 18 to 30 VDC.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurement. The mounting surface must be a flat, smooth (recommended finish of 0.8 μm / 32 μin Ra), and clean area on the machine case. A single mounting hole must be drilled and tapped for the sensor's 1/4-28 UNF mounting stud. Apply a thin, uniform layer of coupling fluid (silicone grease) to the mounting surface to eliminate air gaps and ensure optimal vibration transmission. The sensor must be tightened to the specified torque of 2.7 to 5.4 N·m (24 to 48 lbf·in) using a calibrated torque wrench. Ensure the interconnecting cable is routed to prevent strain on the connector and is shielded from high-voltage lines or other sources of electromagnetic interference. Use of conduit is recommended for physical protection.
The Bently Nevada 84661-67 is a specialized interconnect cable engineered for the transmission of low-level analog signals from Velomitor piezo-velocity sensors to a machinery protection system. Its primary function is to provide a reliable, noise-immune physical link between a sensor mounted on rotating machinery and a monitoring module, such as the Bently Nevada 3500/42M. The cable is constructed with a shielded, twisted-pair configuration using 22 AWG conductors. This design is critical for preserving the integrity of the millivolt-level velocity signal by minimizing interference from electromagnetic (EMI) and radio frequency (RFI) sources common in industrial environments. The 84661-67 cable transmits the dynamic voltage signal proportional to the machine's case vibration velocity, enabling the 3500 system to perform accurate vibration analysis and machinery diagnostics. The cable features a ruggedized jacket for resistance to industrial chemicals and abrasion, and its specific length and connectorization are designed for seamless integration without field modification, ensuring consistent system performance and measurement accuracy.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 84661-67 |
| Product Type | Velomitor Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 67 feet (20.4 meters) |
| Cable Construction | Shielded, twisted pair, 22 AWG (0.34 mm²) conductors |
| Sensor End Connector | 2-socket MIL-C-5015 style, environmentally sealed |
| Monitor End Connection | Prepared leads for terminal block installation on 3500/42M I/O module |
| Shielding | Overall aluminum/polyester foil shield with tinned copper drain wire |
| Jacket Material | Chlorinated Polyethylene (CPE) for oil and chemical resistance |
| Operating Temperature Range | -30°C to +100°C (-22°F to +212°F) |
In Oil & Gas and Power Generation applications, the 84661-67 interconnect cable demonstrates high reliability and signal fidelity under demanding operational conditions. Its robust CPE jacket provides protection against hydrocarbons, corrosive chemicals, and mechanical abrasion frequently encountered in these environments. The specified operating temperature range of -30°C to +100°C ensures consistent performance from cold startups to high-temperature operating conditions near turbines, compressors, and pumps. The cable's shielding effectiveness is critical for transmitting clean, low-noise vibration signals from Velomitor sensors, which is essential for the accurate detection of machinery faults such as imbalance, misalignment, and bearing degradation. Proper installation, including correct shield grounding at the monitor end only, prevents ground loops and ensures the high signal-to-noise ratio required for the advanced diagnostic algorithms within the 3500 monitoring system.
Q: What systems is the 84661-67 compatible with?
A: The 84661-67 cable is designed primarily for use with the Bently Nevada 3500 Machinery Protection System, connecting directly to the terminal block of a 3500/42M Velomitor/Seismic Monitor I/O Module. It is compatible with Bently Nevada Velomitor sensors, including the 330500 and 330525 models, and other piezo-velocity sensors that utilize a 2-pin MIL-C-5015 style connector and have similar output characteristics.
Q: What are the installation requirements?
A: Proper installation is critical for signal integrity. 1) Route the 84661-67 cable in dedicated instrument trays or conduit, separated from high-voltage power cables to prevent induced noise. 2) The cable shield drain wire must be terminated at the instrument ground (GND) terminal on the 3500/42M I/O module. Do not connect the shield at the sensor end to prevent ground loops. 3) Ensure the connector at the sensor is fully seated and the locking ring is tightened to maintain the environmental seal. 4) Secure the cable with appropriate clamps to provide strain relief and prevent vibration-induced damage to the cable or connectors. Adhere to a minimum bend radius of 10 times the cable's outer diameter.
The Bently Nevada 21000-27-05-40-026-03-02 is a proximity probe housing assembly designed to provide a secure, environmentally sealed, and adjustable mounting for proximity probes on industrial machinery. Its primary function is to protect the sensitive probe element from the harsh process environment (e.g., high pressure, corrosive gases, liquids) while allowing precise positioning relative to the observed machine shaft. This specific assembly is constructed from 316 Stainless Steel for superior corrosion resistance. It features a 3/4-14 NPT mounting thread for direct installation into the machine casing. The assembly houses a 3300 XL 8 mm probe, which operates on the eddy current principle. The probe, connected via an extension cable to a Proximitor Sensor, transmits a high-frequency RF signal. The proximity of the conductive shaft surface modulates this signal, which the Proximitor Sensor demodulates into a DC voltage proportional to the probe-to-shaft gap. This conditioned signal is then supplied to a Bently Nevada 3500 Machinery Protection System for continuous monitoring of radial vibration, axial position, and rotational speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-27-05-40-026-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 316 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Probe Penetration Length | 400 mm (15.7 in) |
| Standoff Length | 50 mm (2.0 in) |
| Included Probe Option | 3300 XL 8 mm probe, 1.0 metre cable, miniature coaxial connector |
| Fittings Option | One 3/4-14 NPT plug provided |
| Housing Operating Temperature | -34 °C to +177 °C (-29 °F to +350 °F) |
In Oil & Gas and Power Generation applications, the 21000-27-05-40-026-03-02 assembly provides a robust and reliable platform for critical machinery monitoring. Its 316 Stainless Steel construction ensures long-term integrity in environments containing hydrogen sulfide (H2S), chlorides, and other corrosive agents common in refineries and offshore platforms. The NPT thread mounting, when installed with appropriate sealant, creates a high-pressure seal, preventing the escape of process gases or liquids. This is critical for safety and environmental compliance on equipment such as centrifugal compressors and high-pressure pumps. The assembly's design facilitates stable probe gapping, which is essential for the accuracy and repeatability of vibration and position measurements required for API 670 compliant protection systems. The housing is engineered for continuous, long-term service with minimal maintenance, contributing to high machine availability and reduced lifecycle costs for critical assets like gas turbines, steam turbines, and generators.
Q: What systems is the 21000-27-05-40-026-03-02 compatible with?
A: The 3300 XL 8 mm probe included with the 21000-27-05-40-026-03-02 assembly is part of a transducer system that requires a matching 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system output is fully compatible with Bently Nevada machinery protection and condition monitoring systems, including the 3500 Series (e.g., 3500/42M Proximitor/Seismic Monitor), 3300 Series Monitors, and ADRE data acquisition systems. The housing's 3/4-14 NPT mechanical interface is compatible with any machine case drilled and tapped to this standard thread size.
Q: What are the installation requirements?
A: Installation requires a 3/4-14 NPT tapped hole at the measurement location on the machine casing. An appropriate thread sealant (e.g., PTFE tape or pipe dope compatible with the process fluid and temperature) must be applied to the mounting threads to ensure a pressure-tight seal. The probe must be gapped by adjusting its position within the housing to achieve the correct DC voltage output (typically -10.0 Vdc for a 3300 XL 8 mm system) when measured at the Proximitor Sensor's output terminals. After gapping, the probe is secured in place using the housing's set screws. Adherence to Bently Nevada's specified torque values for the housing and any fittings is mandatory to prevent damage and ensure seal integrity.
