SKU: 330903-00-12-05-02-05

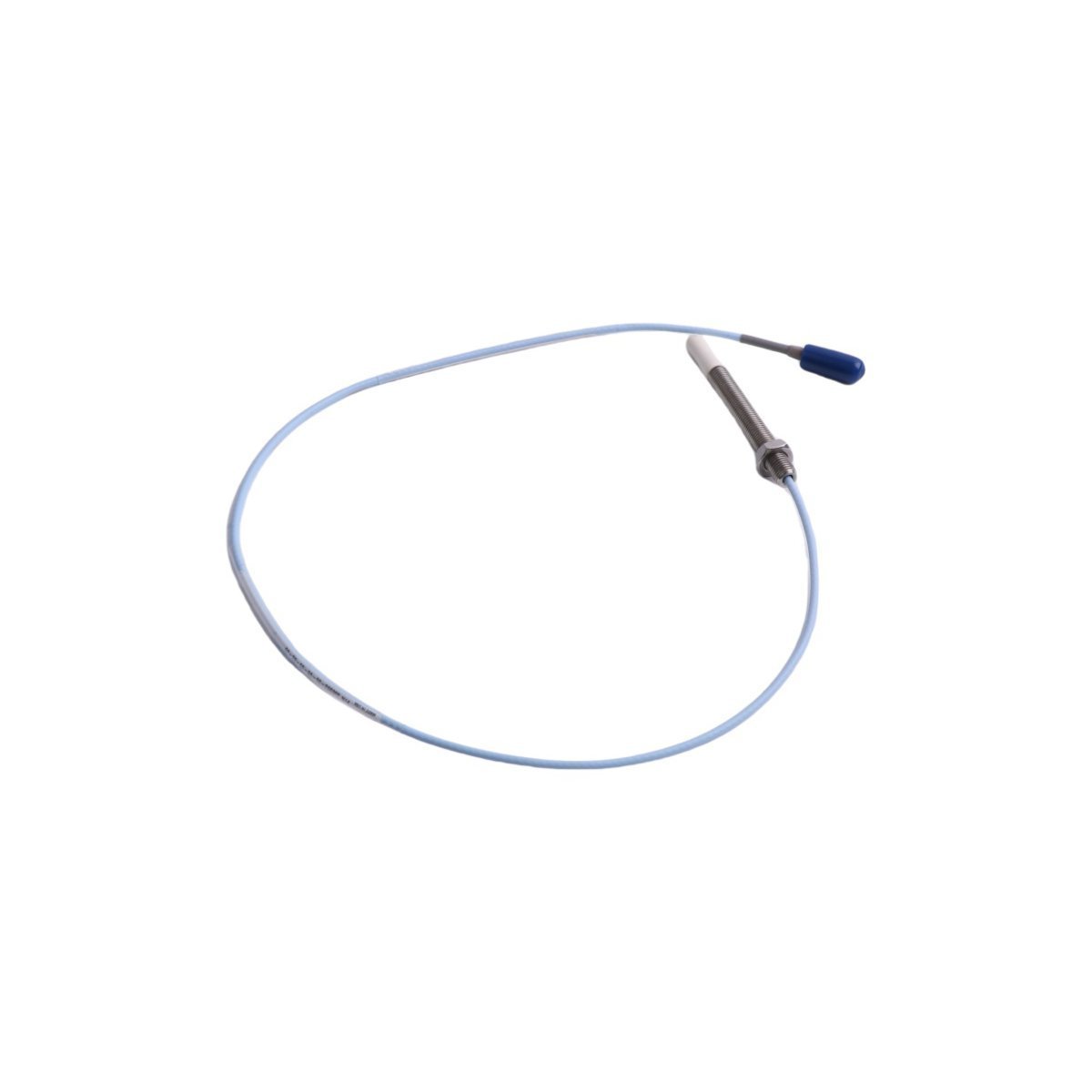

330903-00-12-05-02-05 | Bently Nevada | 3300 NSv Proximity Probe
The Bently Nevada 330903-00-12-05-02-05 is a 3300 NSv Proximity Probe with M8 x 1 mm thread. Features 1.5 mm (60 mils) linear range, 7.87 V/mm (200 mV/mil) sensitivity, and 0 to 10 kHz frequency response. PPS tip and 304 stainless steel construction for superior chemical resistance. Operating temperature -52°C to +177°C.
Product Overview
The 330903-00-12-05-02-05 is a 3300 NSv Proximity Probe manufactured by Bently Nevada (Baker Hughes). This product is designed for professional rotating machinery monitoring and protection applications.
Key Features
- Genuine OEM Product: 100% authentic Bently Nevada product
- Brand New Condition: Sealed in original packaging
- Industrial Grade: Built for harsh industrial environments
- Full Compatibility: Compatible with Bently Nevada monitoring systems
Detailed Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330903-00-12-05-02-05 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Series | 3300 NSv Proximity Probe |
| Thread Specification | M8 x 1 mm |
| Linear Range | 1.5 mm (60 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Probe Resistance | 4.0 Ω ± 0.5 Ω (0.5m cable) |
| Cable Capacitance | 69.9 pF/m |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 304 Stainless Steel |
| Connector Type | Miniature coaxial ClickLoc |
| Minimum Bend Radius | 25.4 mm (1.0 in) minimum |
| Operating Temperature | -52°C to +177°C |
Applications
- Rotating machinery vibration monitoring
- Bearing condition monitoring
- Shaft position and speed measurement
- Fluid-film bearing machines
- Centrifugal and axial compressors
- Power generation equipment
Order Information
Part Number: 330903-00-12-05-02-05
Manufacturer: Bently Nevada
Condition: Brand New
Warranty: 12 Months
