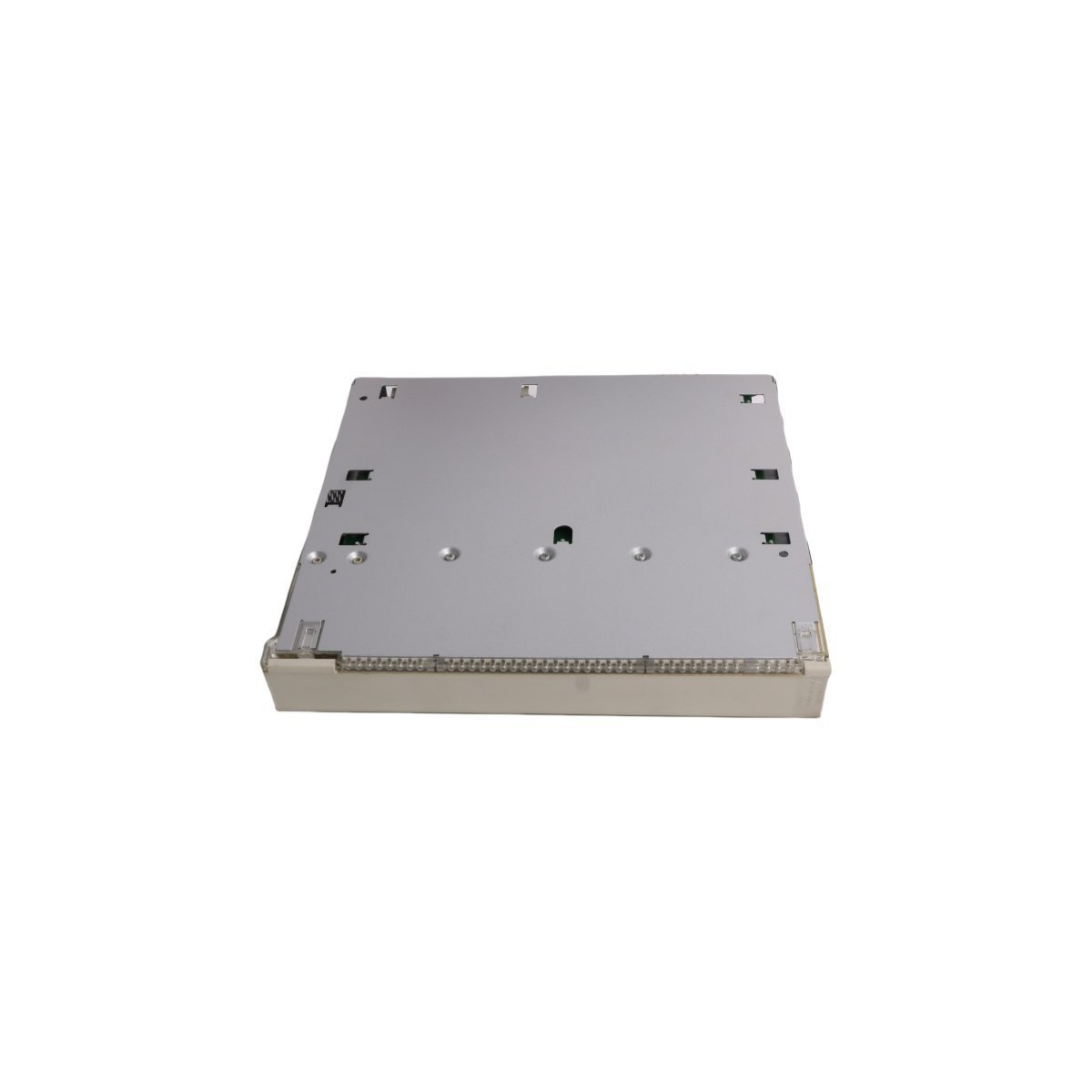

ABB AI620 3BHT300005R1 Analog Input Module

The ABB AI620 3BHT300005R1 operates as a high-precision analog interface for S600 I/O systems. This module converts continuous electrical signals from field sensors into digital data for the controller. It features 16 independent channels to monitor various process variables simultaneously. Because it provides high-resolution 12-bit analog-to-digital conversion, it ensures granular data accuracy. This precision helps operators maintain tight control over complex industrial loops. Consequently, the unit improves the overall stability of distributed control networks.

Versatile Field Connectivity

This module supports a broad input voltage range from -10V to +10V. This flexibility allows for direct connection with diverse pressure, flow, and temperature transmitters. Furthermore, the 50V isolation protects internal circuitry from external electrical surges. This safety feature prevents field faults from damaging the expensive central processor. The hardware maintains consistent performance even in environments with significant electromagnetic noise. Therefore, it serves as a reliable gateway for critical sensor data.

Industrial Durability and Design

ABB engineered the AI620 for longevity in extreme manufacturing climates. The module functions effectively in temperatures between -25°C and +85°C. Its robust Swedish construction resists the mechanical vibrations common in heavy industry. Additionally, the compact 4cm width optimizes rail space within electrical enclosures. This density allows engineers to expand system capacity without increasing cabinet size. The unit also simplifies maintenance through its accessible terminal layout and clear labeling.

Optimized System Performance

Integrating the 3BHT300005R1 into a DCS ecosystem streamlines the data acquisition process. The module manages high-volume analog traffic with minimal signal latency. Moreover, its energy-efficient design reduces the thermal load on the surrounding I/O rack. This efficiency contributes to a longer lifespan for all neighboring electronic components. The hardware undergoes rigorous testing to meet global CE and UL quality standards. Thus, it provides a secure and scalable solution for modern industrial automation.

Technical Parameters and Specifications
