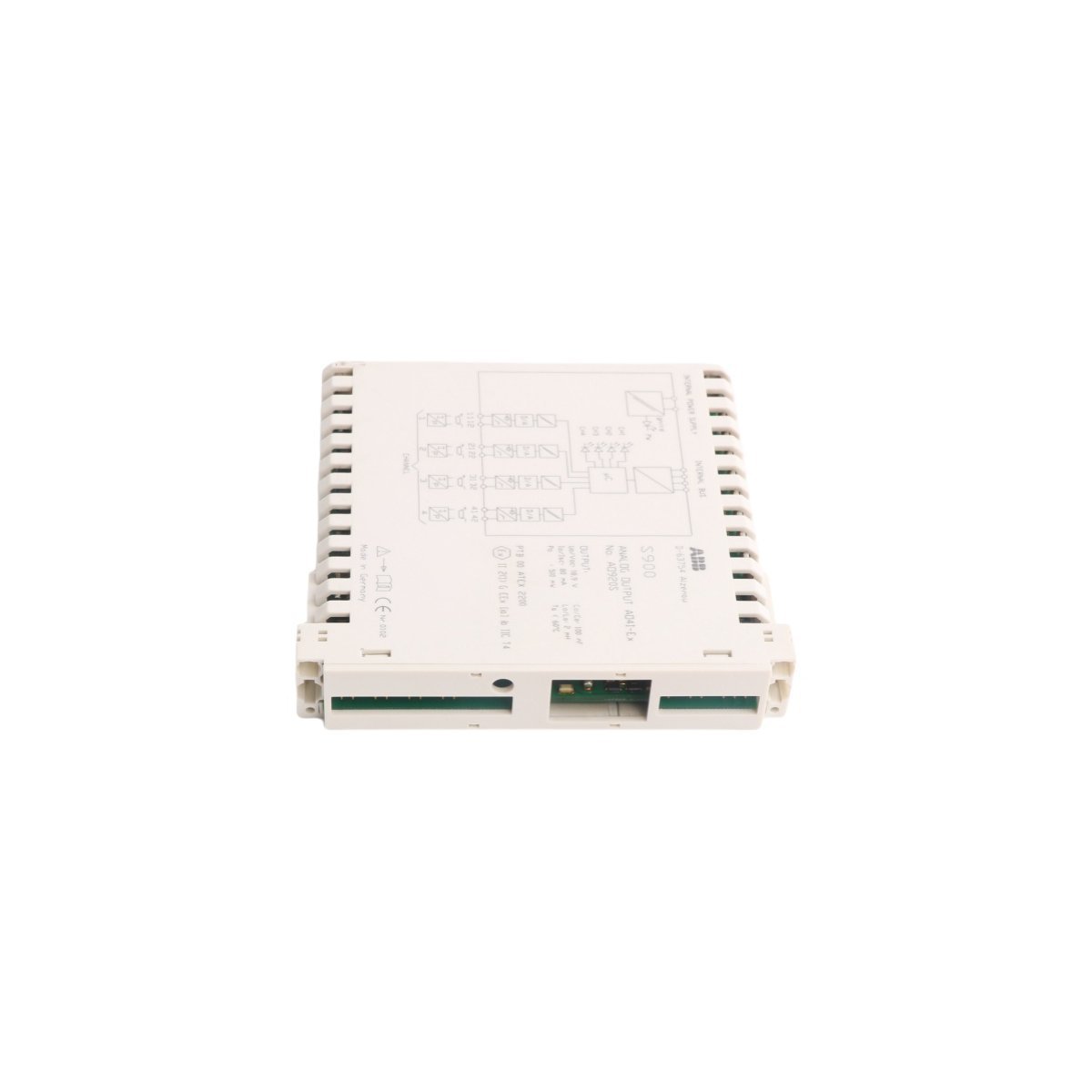

ABB AO920S 3KDE175531L9200 Isolated Analog Output Module

The ABB AO920S 3KDE175531L9200 is an isolated analog output module for S900 I/O systems. It provides precision 4-20 mA control for actuators and valves in demanding industrial environments.

The ABB AO920S, part number 3KDE175531L9200, is a high-precision signal terminal for S900 remote I/O systems. This module provides isolated analog control for field devices like actuators, valves, and positioners. Because it utilizes galvanic isolation, the unit protects the system backplane from field-side electrical disturbances. It accurately converts digital control commands into standard industrial electrical signals. Consequently, the AO920S ensures stable and responsive process regulation in complex automation architectures.

Technical Specifications

Feature	Details
Brand	ABB
Model Number	AO920S
Order Number	3KDE175531L9200
Product Line	S900 Remote I/O
Module Type	Isolated Analog Output
Signal Ranges	0-20 mA / 4-20 mA
Operating Temp	-25°C to +60°C
Net Weight	0.12 kg
Dimensions	2 x 10.5 x 11 cm
Origin	Sweden

Precision Control and Signal Integrity

The AO920S supports standard current loop outputs for seamless interface with most industrial hardware. Specifically, it provides 4-20 mA or 0-20 mA signals to drive proportional control elements. The module maintains high linearity and minimal drift even during ambient temperature shifts. Furthermore, integrated diagnostics monitor each channel for open circuits or short-circuit conditions. This real-time feedback allows the controller to detect field-side wiring faults instantly. Thus, maintenance teams can resolve issues before they impact plant production.

Additionally, the compact 2cm width maximizes mounting density on the S900 terminal unit. The 0.12 kg module features a low-power design to reduce heat buildup within the cabinet. Moreover, the unit supports hot-swapping for fast replacement without interrupting the power supply. This capability is vital for continuous process industries like chemical or pharmaceutical manufacturing.

Industrial Protection and Environmental Resistance

ABB designed this module with an IP20 rated enclosure for protection against solid particles. It operates reliably in extreme temperatures from -25°C up to +60°C. Furthermore, the robust Swedish engineering ensures resistance to industrial vibration and humidity. The 3KDE175531L9200 also complies with hazardous area certifications for explosive environments. Because it uses standardized 24 VDC power, it integrates easily into existing DCS infrastructures. This reliability makes it a preferred choice for offshore platforms and refinery applications.

Application Scenarios

Engineers primarily use the AO920S for regulating fluid flow and pressure control loops. It provides the necessary current to drive I/P converters and motorized control valves. Furthermore, the module serves in variable speed drive setpoint transmission for heavy machinery. Its isolated architecture makes it ideal for sites with significant ground potential differences.
