ICS Triplex T9881 Trusted Analog Output Field Termination Assembly
Sale!
SKU: T9881
ICS Triplex T9881 Trusted Analog Output Field Termination Assembly
The ICS Triplex T9881 is a high-integrity Analog Output Field Termination Assembly designed for the Trusted TMR system. It provides an 8-channel interface for 4-20mA signals, featuring robust isolation and redundant power support for SIL 3 safety-critical valve and actuator control.

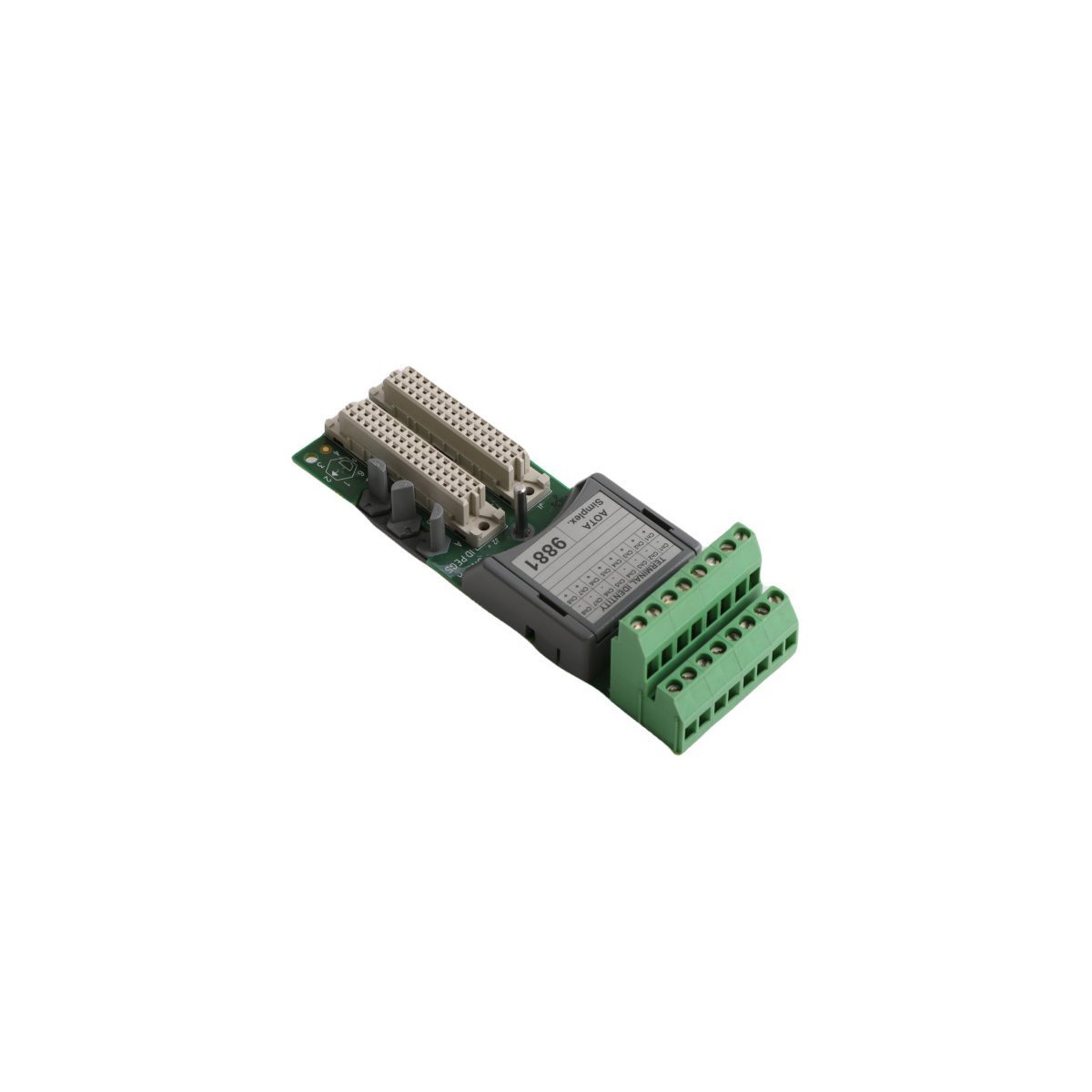

The ICS Triplex T9881 serves as the specialized Field Termination Assembly (FTA) designed for use within the Trusted TMR (Triple Modular Redundant) system. This module acts as the physical interface between the T9481 or T9482 Analog Output modules and the industrial field equipment. By facilitating secure and organized signal distribution, the T9881 ensures that critical control commands reach actuators, valves, and positioners with maximum integrity and minimal electrical interference.
Technical Functionality and Operation
The T9881 manages the routing of 4-20mA current signals through high-density termination points. Because safety is paramount in Trusted architectures, this FTA incorporates robust isolation and protection circuitry to prevent field-side faults from propagating back to the main controller. It supports redundant power feed configurations, ensuring that the analog loops remain energized even if a single power source fails. Furthermore, the module simplifies system maintenance by providing clear labeling and accessible test points, which allow technicians to verify loop integrity without disconnecting field wiring.
Key Technical Specifications
Manufacturer:Â ICS Triplex (Rockwell Automation)
Model Number:Â T9881
Product Series:Â Trusted System
Module Type:Â Analog Output Field Termination Assembly (FTA)
Channel Capacity:Â Supports up to 8 High-Integrity Channels
Signal Compatibility:Â 4-20 mA Current Loop
Connection Type:Â Compression-style screw terminals for field wiring
Mounting Configuration:Â Standard DIN rail or Trusted Chassis mounting
Physical Protection:Â Designed for high-vibration and industrial temperature ranges
System Integrity:Â Suitable for SIL 3 rated safety loops when used with Trusted TMR modules
Strategic Industrial Applications
Engineers deploy the T9881 in high-availability environments where precise analog control is vital for process safety. Consequently, it is a standard component in the following scenarios:
Control Valve Actuation:Â Provides the final connection for modulating valves in critical oil and gas pipelines.
Speed Governor Interfacing:Â Manages analog speed setpoints for large turbines and compressors in power plants.
Hazardous Chemical Dosing:Â Ensures accurate delivery of chemical agents by maintaining stable signal paths to metering pumps.
Positioning Systems:Â Facilitates precise movement of heavy industrial dampers and actuators in complex manufacturing processes.
The GE IC693MDL330, also cataloged as the IC693MDL330 Positive Logic Output Module, operates as a dedicated hardware component for discrete AC load control within PACSystems RX3i platforms.
Hardware Specifications
Parameter
Specification
Model
IC693MDL330
Brand
GE
Origin
USA
Weight
0.28 kg
Dimensions
3.5 x 13 x 13.5 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption / Output
8 output points (120-240 VAC, 2 A max per point)
Backplane Bus Communication and Firmware Compatibility
The module interfaces directly with the PACSystems RX3i backplane bus, utilizing high-velocity backplane communication licenses to execute discrete command outputs across deterministic scan cycles. Firmware flash compatibility enables remote diagnostic updates and parameter configuration without requiring physical module extraction from the baseplate mounting slot.
Frequently Asked Questions
Q: How are the discrete output points grouped and electrically isolated on this module?A: The 8 output points are arranged into 2 isolated groups of 4 outputs each, allowing separate AC phase connections protected by individual 5 A fuses.Q: What is the minimum load current requirement for proper operation of each output point?A: Each output point requires a minimum load current of 100 mA to maintain valid state switching and prevent leakage voltage drop issues.
Field Installation Guidelines
Ensure that all external AC power sources feeding the output terminals are fully isolated before performing insertion or removal from the baseplate slot. Secure the module housing using the integrated top and bottom mounting screws to guarantee proper chassis grounding, and verify that field wiring maintains correct clearance from high-voltage raceways.
Configured for multi-channel analog signal generation in ControlLogix automation platforms, the Allen Bradley 1756-OF8 (1756-OF8 Analog Output Module) provides direct electrical execution of voltage and current control loops.
Hardware Specifications
Parameter
Specification
Model
1756-OF8
Brand
Allen Bradley
Origin
USA
Weight
0.35 kg
Dimensions
23.3 x 18.3 x 5.3 cm
Operating Temp
Industrial Standard
Power Consumption
System Backplane Dependent
Output Channels
8 Points
Industrial Control and Network Characteristics
The 1756-OF8 module utilizes backplane bus communication velocity to process high-resolution analog output signals within the ControlLogix chassis. Integration into Profinet and EtherNet/IP deterministic networks enables synchronous command execution across distributed I/O racks. Firmware flash compatibility allows for version alignment with current control software, while configurable I/O density scaling supports expansion in modular automation architectures without degrading signal update rates.
Frequently Asked Questions
Q: Does the 1756-OF8 support Removal and Insertion Under Power (RIUP)?A: Yes, the module supports RIUP within a ControlLogix chassis, provided that the associated field wiring arm is secured correctly and the system is operating within defined environmental limits.Q: How is the channel isolation configured for this module?A: The 1756-OF8 utilizes internal galvanic isolation between the backplane and the I/O channels. No external isolation is required for standard loop power configurations, though ground referencing must be verified to prevent common-mode noise.
Field Installation Guidelines
Ensure the ControlLogix chassis power is isolated before initiating module insertion.
Align the module keying to the chassis slot to prevent incorrect installation.
Slide the 1756-OF8 into the chassis until the backplane connector is fully engaged.
Secure the module using the top and bottom latching mechanisms.
Terminate field wiring to the Removable Terminal Block (RTB) according to the specific voltage or current loop wiring diagram (0-10 V or 4-20 mA).
Verify shield termination at the cabinet entry point to suppress electromagnetic interference before energizing the chassis.
The Emerson KJ3002X1-BB1 12P0683X082 is an 8-channel 4-20mA analog output module for DeltaV systems. It provides 16-bit high-precision control for valves and actuators in harsh environments.
The Allen-Bradley 1756-OF6VI is a 6-channel isolated analog voltage output module for ControlLogix systems. It features 13-bit resolution and 250V channel-to-channel isolation. This module provides precise ±10V control for actuators and drives in demanding industrial environments.
The Allen-Bradley 1746-NO4I is a 4-channel analog current output module for SLC 500 controllers. It provides 16-bit resolution for 0-20mA and 4-20mA signals. This compact 0.2kg module ensures precise control for valves and drives in industrial automation.
The Triconex 3806E is a TMR Analog Output module providing SIL 3 rated performance for critical industrial control.Featuring 4-20 mA and 20-320 mA support, it ensures high-precision signal accuracy and fault-tolerant operation in DCS and SIS environments.This module includes advanced self-diagnostics and channel isolation for maximum system reliability
The GE Fanuc IC200ALG322 is a 4-channel analog voltage output module for the VersaMax PLC series. It provides ±10.24V outputs with 12-bit resolution, built-in field power diagnostics, and a compact design for precise industrial control applications.
The Triconex 3805E is a SIL 3 rated, 8-channel Analog Output module designed for TMR safety systems.It provides precise 4–20 mA signal control with integrated diagnostics and hot-swap capability for critical industrial processes.
The GE Fanuc IC200ALG320 is a 4-channel analog output module for the VersaMax I/O system. It delivers precise 0-10 VDC signals with 12-bit resolution, ideal for controlling VFDs, actuators, and proportional valves in automated environments.
The Triconex 3805H is an 8-channel, 4-20 mA Analog Output module featuring Triple Modular Redundancy (TMR).Designed for SIL 3 safety-critical modulating control, it provides high-precision signal output with integrated loop-back diagnostics and hot-swap capability for maximum process uptime.
The Yokogawa ADR541-P11 S1 is a 16-channel analog output module designed for the CENTUM VP DCS. It delivers precise modulating control for valves and actuators through advanced signal conversion and robust electrical isolation. This brand-new Japan-made module ensures process stability and easy integration into complex industrial automation systems.
The Emerson 1C31129G03 is a precision Ovation Analog Output module designed for high-accuracy control of field actuators and valves. Featuring isolated signal paths and advanced loop diagnostics, this 4-20 mA module ensures stable and reliable process regulation within complex Distributed Control System architectures.
