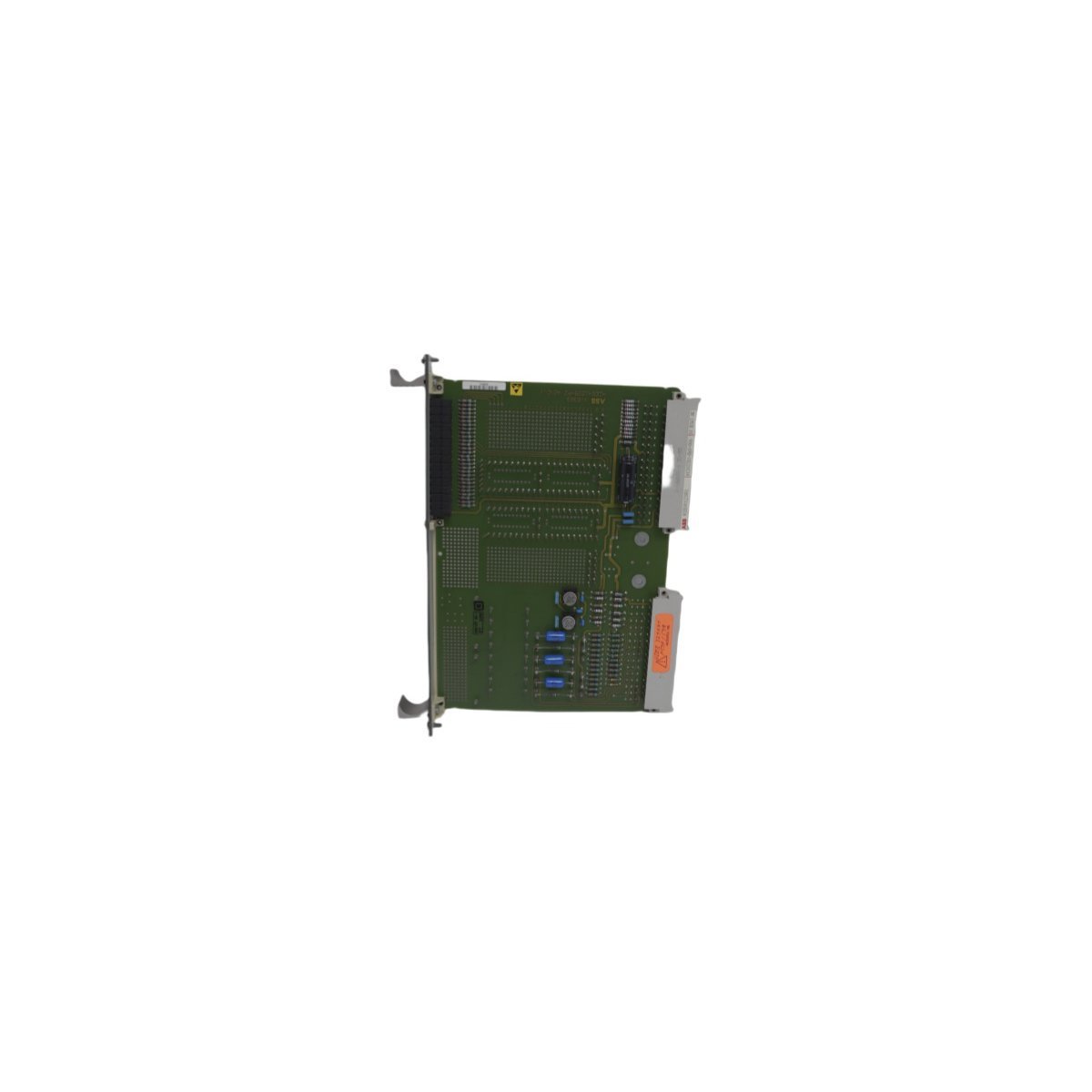

ABB HIEE401238R1 XVB363 AE UNITROL Excitation System Control Board
The ABB HIEE401238R1 XVB363 AE is a high-performance control board for UNITROL excitation systems. Featuring 1MB memory, 4 I/O channels, and RS485 communication, it ensures precise regulation for synchronous machinery in demanding industrial environments.
Product Description
The ABB HIEE401238R1, also designated as the XVB363 AE, is a specialized high-performance control board engineered for the UNITROL series of excitation systems. This module serves as a primary processing unit, executing complex control loops and regulating the field current of synchronous generators and motors. By integrating advanced semiconductor technology with robust firmware, the board ensures precise voltage regulation and enhanced grid stability.
Technical Functionality and Signal Processing
This advanced circuit board manages high-speed data acquisition and logic execution through its onboard memory, which supports up to 1MB of storage for operational parameters and control algorithms. The XVB363 AE architecture features four versatile input/output channels, allowing the system to interface directly with field sensors and actuators. Furthermore, an integrated RS485 communication interface enables the board to exchange critical telemetry data with higher-level Distributed Control Systems (DCS) and human-machine interfaces.
Key Technical Specifications
- Brand: ABB
- Model Designation: XVB363 AE
- Global ID: HIEE401238R1
- Product Series: UNITROL Excitation Systems
- Functional Type: Central Control Board
- Memory Capacity: 1 MB
- Power Consumption: 25W (Maximum)
- Communication Protocol: RS485 Serial Interface
- Operational Temperature: -25°C to +85°C
- Physical Dimensions: 1.8 cm x 19.6 cm x 26.1 cm
- Net Weight: 0.26 kg
Reliability and System Integration
Designed for mission-critical power generation environments, the HIEE401238R1 XVB363 AE operates reliably across an extended thermal range, making it suitable for both indoor and remote cabinet installations. The board’s low power consumption profile reduces internal heat generation, which significantly extends the lifecycle of the component. Its modular form factor allows for rapid deployment during system upgrades or maintenance cycles, ensuring that downtime in power plants and heavy industrial facilities remains at an absolute minimum.
