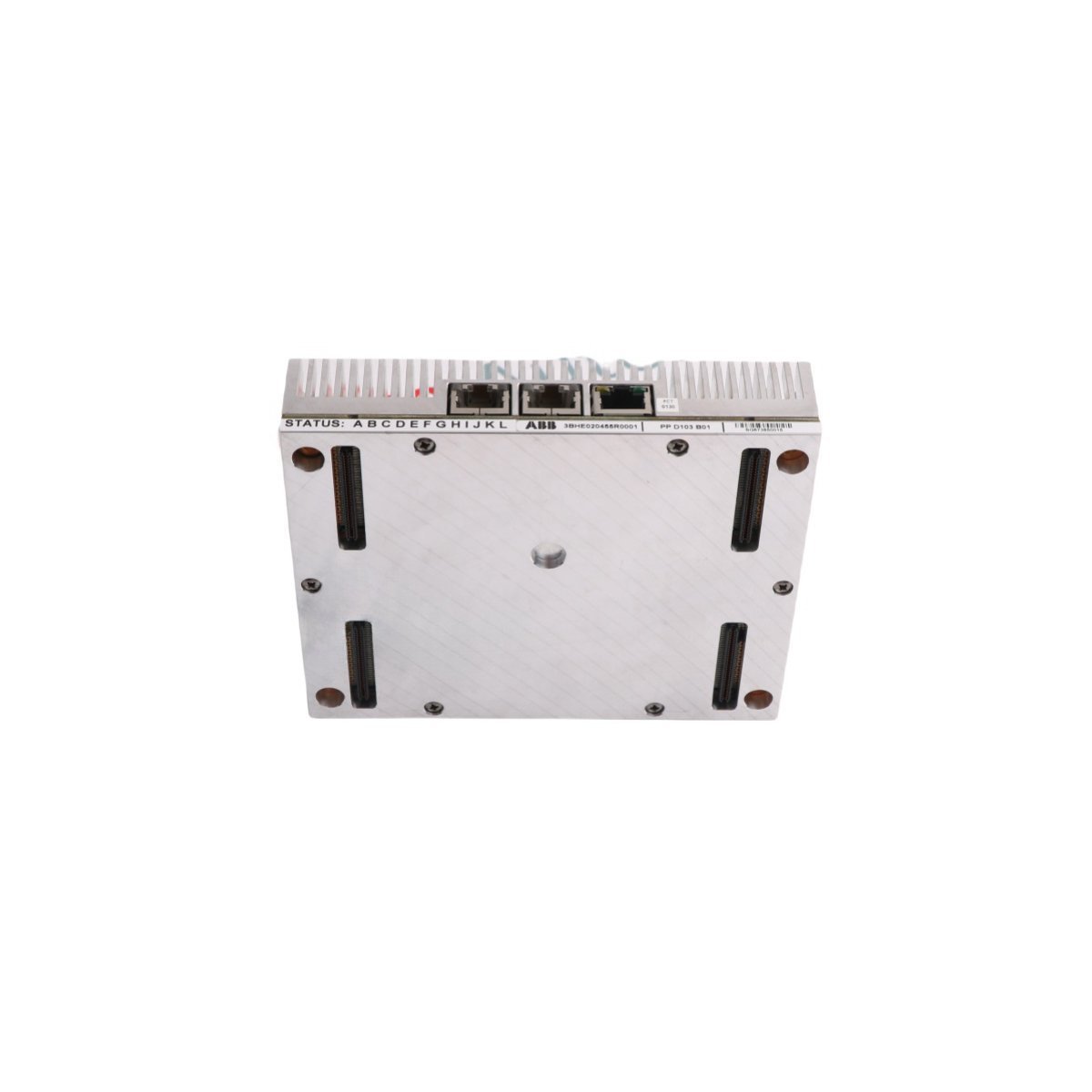

The ABB PPD103 B01 (3BHE020455R0001) is a high-performance controller board for the AC 800PEC platform. It provides precise excitation control and robust signal processing for industrial power systems.
The ABB PPD103 B01, designated by order number 3BHE020455R0001, serves as a specialized controller board within the AC 800PEC power electronics control platform. This component manages high-speed processing tasks required for complex power conversion and excitation control applications. By executing deterministic control algorithms, the board ensures precise regulation of electrical parameters in high-demand industrial environments. Furthermore, the PPD103 B01 architecture enables rapid communication with peripheral modules, which maintains system synchronization and operational stability.
Engineers implement the PPD103 B01 to oversee critical excitation duties in power generation and heavy industrial drive systems. Because the board features integrated signal processing, it effectively interprets feedback from sensors and adjusts output signals in real-time. Moreover, the hardware design prioritizes thermal management and signal integrity, which protects the controller against electromagnetic interference common in power electronics facilities. Consequently, the board facilitates long-term reliability for demanding control loops. Maintenance personnel also benefit from the onboard diagnostic capabilities, as these tools simplify the verification of operational states and allow for efficient system commissioning.
The Emerson PR6426/010-000 CON021, also cataloged as the PR6426/010-000 CON021 Controller Module, operates as a dedicated hardware component for analog process signal conditioning and control loop execution within distributed control platforms.
Hardware Specifications
Parameter
Specification
Model
PR6426/010-000 CON021
Brand
Emerson
Origin
USA
Weight
0.54 kg
Dimensions
22 x 18 x 4.5 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
24 VDC nominal
Process Loop Integration and Signal Isolation
The module processes analog inputs through dedicated signal conversion channels while maintaining channel-to-channel isolation to prevent electrical interference across loops. The internal circuitry supports 4-20 mA HART loop protocol integration for remote transmitter calibration and real-time diagnostic polling. Cold junction compensation (CJC) maintains thermocouple measurement accuracy across ambient temperature shifts, while FOUNDATION Fieldbus communication layers execute deterministic field device updates without loop degradation.
Frequently Asked Questions
Q: Does the module support live insertion and removal under power?A: System backplane specifications dictate whether hot-swapping is permitted; verify rack-level power status before extracting the module to prevent backplane bus faults.Q: How are field wiring errors isolated from internal processor components?A: Channel-to-channel galvanic isolation circuits prevent transient overvoltages from propagating across adjacent analog input channels or damaging internal logic planes.
Field Installation Guidelines
Mount the unit securely within designated enclosure slots, ensuring that shielded twisted-pair cables terminate at the proper grounding bars to minimize electromagnetic interference. Verify loop supply voltage levels prior to terminal block connection to protect analog input stages against overvoltage conditions.
Configured for high-speed logic execution in ControlLogix automation platforms, the Allen Bradley 1756-L74 (1756-L74 Controller) provides direct physical and electrical execution of complex control algorithms.
Hardware Specifications
Parameter
Specification
Model
1756-L74
Brand
Allen Bradley
Origin
USA
Weight
0.26 kg
Dimensions
3.5 x 14.5 x 14.5 cm
Operating Temp
Industrial Standard
Power Consumption
System Backplane Dependent
Memory Capacity
16 MB
Industrial Control and Network Characteristics
The 1756-L74 utilizes backplane bus communication velocity to manage deterministic data exchange between distributed I/O modules and the controller. Integration into EtherNet/IP deterministic networks enables synchronous command execution across modular chassis configurations. Firmware flash compatibility ensures version alignment with established control software environments, while I/O density scaling supports hardware expansion without compromising cycle time performance.
Frequently Asked Questions
Q: Does the 1756-L74 support hot-swapping within the ControlLogix chassis?A: The controller supports removal and insertion under power (RIUP) if the surrounding environment is within specified parameters and the system is properly configured to handle processor transition states.Q: How is the memory managed during power-loss events?A: The controller utilizes an internal energy storage module to ensure data retention and controlled shutdown sequences when primary backplane power is lost.
Field Installation Guidelines
Ensure the ControlLogix chassis is de-energized before mounting the controller.
Verify that the chassis backplane connector pins are free from debris or mechanical damage.
Align the controller with the guide rails of the designated slot and insert until the connector fully seats into the backplane.
Secure the module using the top and bottom latching mechanisms to ensure electrical contact stability.
Connect the Ethernet communication cable to the front-panel port and ensure the cable is routed to maintain bend radius requirements.
Confirm proper grounding of the chassis to the cabinet earth bus to minimize noise interference during operation.
Configured for redundant processing tasks in Series 90-70 networks, the GE IC697CGR935 (IC697CGR935 One Slot Controller Module) provides direct physical and electrical execution of logic in hot-standby architectures. This controller operates with a 96 MHz 80486DX4 microprocessor to manage up to 12K discrete I/O points and 8K analog I/O points. Synchronization between primary and secondary units is maintained through backplane communication, facilitating seamless failover transitions.
Hardware Specifications
Parameter
Specification
Model
IC697CGR935
Brand
GE
Origin
USA
Weight
0.75 kg
Dimensions
4.0 cm x 21.8 cm x 29.1 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
3.1 A
Processor
96 MHz 80486DX4
Memory
1 MB
Execution Speed
0.4 microseconds (Boolean)
Industrial Control System Performance
The IC697CGR935 relies on high-velocity backplane bus communication to ensure deterministic synchronization between redundant modules. Furthermore, firmware flash compatibility allows for controlled version updates within the Series 90-70 environment, thereby maintaining consistency across logic execution cycles. In addition, I/O density scaling is supported through the backplane interface, which enables the controller to process large datasets without exceeding defined timing constraints. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed via specific communication coprocessors when utilized in integrated automation architectures.
Frequently Asked Questions
Q: What is the failover behavior if the primary controller experiences a fault?A: In a redundant pair, the secondary controller monitors the heartbeat of the primary. Upon detection of a primary fault, the secondary transitions to the active state instantaneously to prevent interruption of the process control loop.Q: Are there specific thermal requirements for operation at ambient temperatures above 50 deg C?A: Yes. Forced air cooling is required when the operating environment exceeds 50 deg C to ensure the heat dissipation of the 80486DX4 microprocessor and internal circuitry remains within specified safe limits.
Field Installation Guidelines
Ensure the rack slot is free of debris before inserting the module to guarantee proper contact with the backplane connector.
The module must be seated flush against the rack frame and secured using the provided mounting hardware to ensure electromagnetic compatibility and grounding.
Shielded serial cables connected to the RS232 or RS485 interfaces should be grounded at the controller end to mitigate noise interference in high-EMI environments.
Upon initial power-up, verify that the 3-position switch is set to the correct mode (Run/Stop) and that status LEDs indicate valid processor health before establishing field I/O connectivity.
The Allen-Bradley 1756-L55M24 is a high-performance GuardLogix controller offering 3.5 MB of non-volatile memory for integrated safety, motion, and discrete control applications.
The Allen-Bradley 1756-L65 is a high-performance ControlLogix controller offering 32 MB of memory and extensive I/O scalability for complex industrial applications.
The Allen-Bradley 1785-L80B is a powerful PLC-5 processor module featuring a high-capacity memory architecture and five integrated communication channels. It supports flexible Data Highway Plus (DH+) and Remote I/O configurations alongside a dedicated RS-232C serial port, making it a reliable processing hub for complex, large-scale industrial automation environments.
The Yokogawa AFV10D is a high-performance Duplexed Field Control Unit designed for the CENTUM VP DCS. It features redundant processor modules and high-speed Vnet/IP communication to ensure continuous process control and maximum reliability in critical industrial automation applications.
The GE IS421UCSBS1A is a SIL3-certified Safety Controller Module for the Mark VIeS series. Designed for high-reliability turbine protection and industrial emergency shutdown systems, it features a fanless UCSB architecture, CompactFlash storage, and robust RS-232/Ethernet communication for critical DCS safety functions.
The GE IS215UCCCH4A is a 1.6 GHz Intel Pentium M-powered VME controller board for Mark VIe systems. Featuring 256MB DRAM and QNX Neutrino OS, this 3U CPCI module provides high-speed processing and robust diagnostics for gas turbine control.
The HIMA F6205 is a professional 16-channel relay control module for H41q and H51q safety systems. Featuring 16 SPST relays rated at 10A/24VDC, this German-engineered module provides robust galvanic isolation and reliable switching for high-power industrial actuators in safety-critical applications.
The Allen-Bradley 1785-L30B is a 32K-word PLC-5/30 controller module designed for high-density automation.It supports 1024 I/O points and features dual DH+/Remote I/O ports alongside a multi-protocol serial interface, ensuring reliable distributed control for complex industrial applications.
The Emerson KJ3208X1-BA2 (13P0105X012) is a high-performance DeltaV Series 2 Controller designed for redundant process automation. It manages I/O data, complex control logic, and network communications, providing a robust and scalable solution for critical M-series Distributed Control Systems (DCS).
