  4. Allen Bradley 1756-L74 ControlLogix Controller
Sale!
SKU: 1756-L74

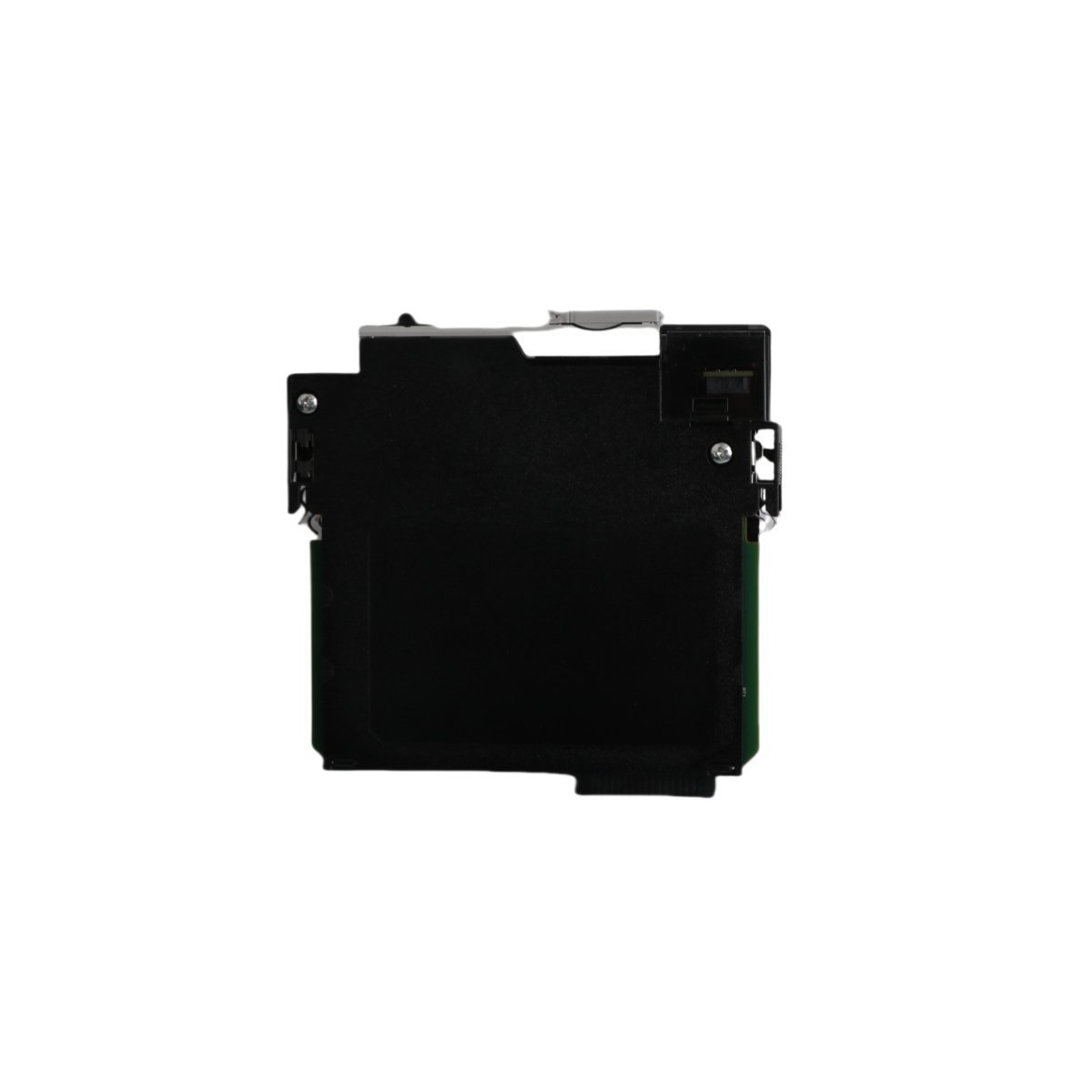

Allen Bradley 1756-L74 ControlLogix Controller

Request a Quote

Configured for high-speed logic execution in ControlLogix automation platforms, the Allen Bradley 1756-L74 (1756-L74 Controller) provides direct physical and electrical execution of complex control algorithms.

Hardware Specifications

ParameterSpecification
Model1756-L74
BrandAllen Bradley
OriginUSA
Weight0.26 kg
Dimensions3.5 x 14.5 x 14.5 cm
Operating TempIndustrial Standard
Power ConsumptionSystem Backplane Dependent
Memory Capacity16 MB

Industrial Control and Network Characteristics

The 1756-L74 utilizes backplane bus communication velocity to manage deterministic data exchange between distributed I/O modules and the controller. Integration into EtherNet/IP deterministic networks enables synchronous command execution across modular chassis configurations. Firmware flash compatibility ensures version alignment with established control software environments, while I/O density scaling supports hardware expansion without compromising cycle time performance.

Frequently Asked Questions

Q: Does the 1756-L74 support hot-swapping within the ControlLogix chassis?

A: The controller supports removal and insertion under power (RIUP) if the surrounding environment is within specified parameters and the system is properly configured to handle processor transition states.

Q: How is the memory managed during power-loss events?

A: The controller utilizes an internal energy storage module to ensure data retention and controlled shutdown sequences when primary backplane power is lost.

Field Installation Guidelines

  1. Ensure the ControlLogix chassis is de-energized before mounting the controller.
  2. Verify that the chassis backplane connector pins are free from debris or mechanical damage.
  3. Align the controller with the guide rails of the designated slot and insert until the connector fully seats into the backplane.
  4. Secure the module using the top and bottom latching mechanisms to ensure electrical contact stability.
  5. Connect the Ethernet communication cable to the front-panel port and ensure the cable is routed to maintain bend radius requirements.
  6. Confirm proper grounding of the chassis to the cabinet earth bus to minimize noise interference during operation.
Tags: ,

You may also like

Sale!

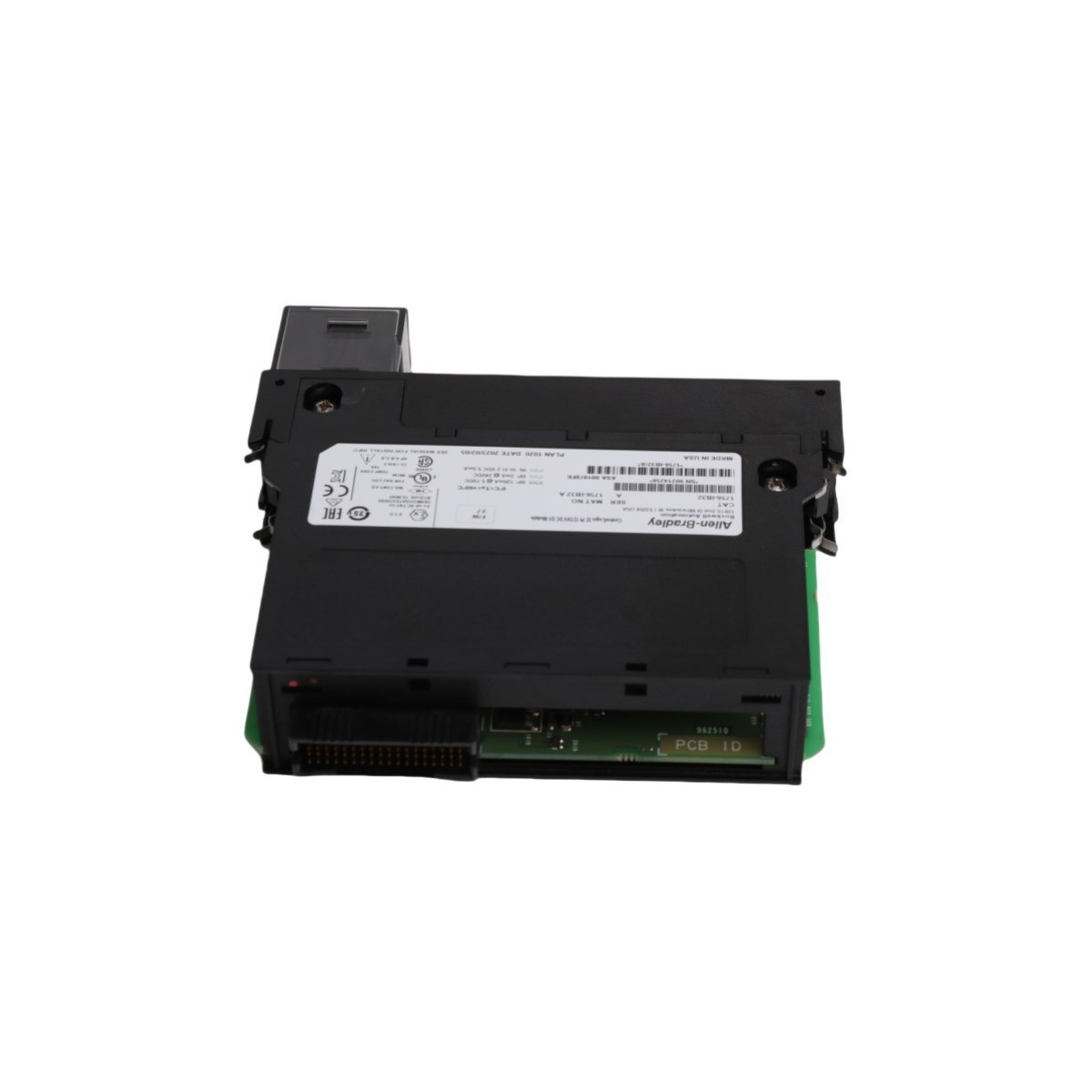

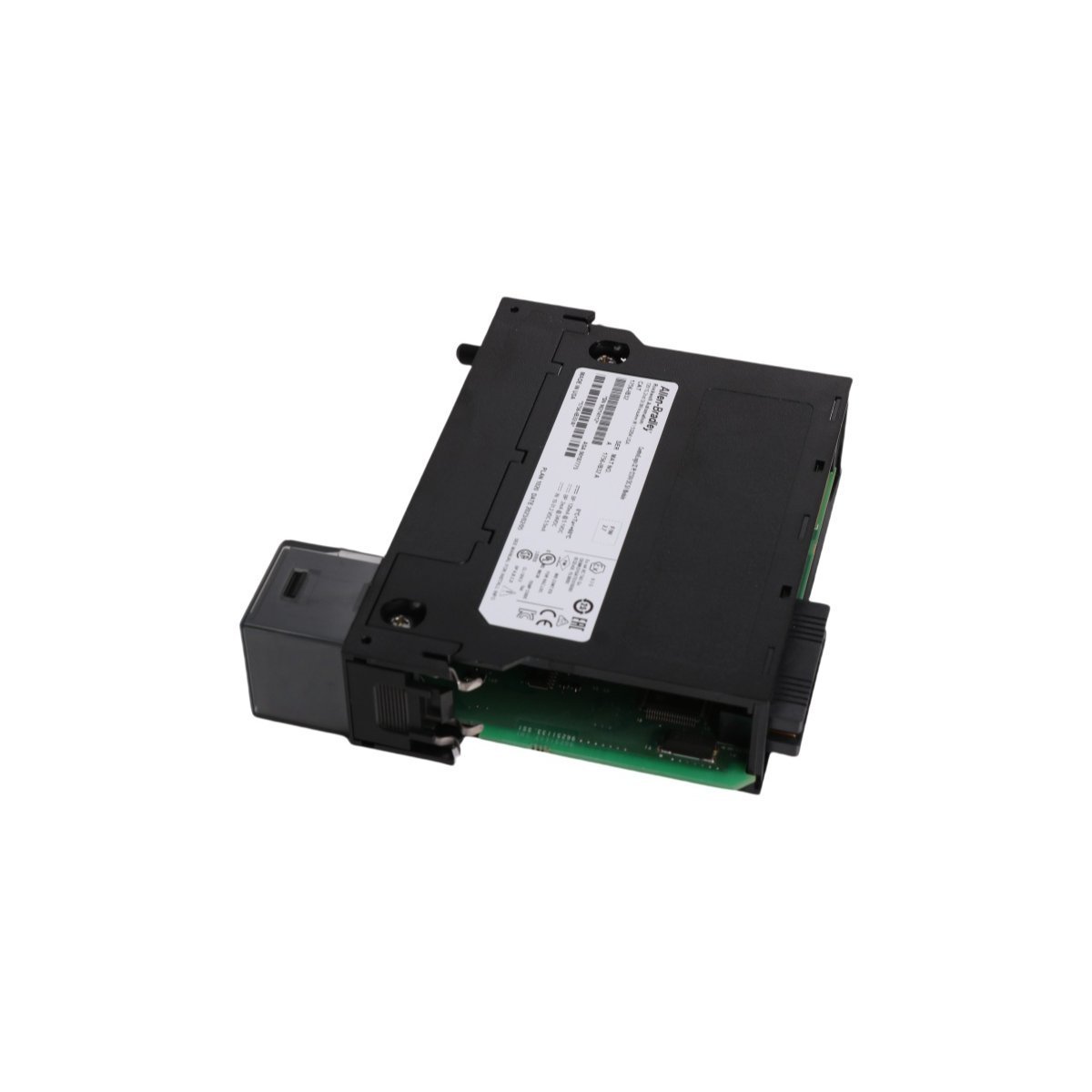

Allen Bradley 1756-IB32 ControlLogix Digital Input Module
