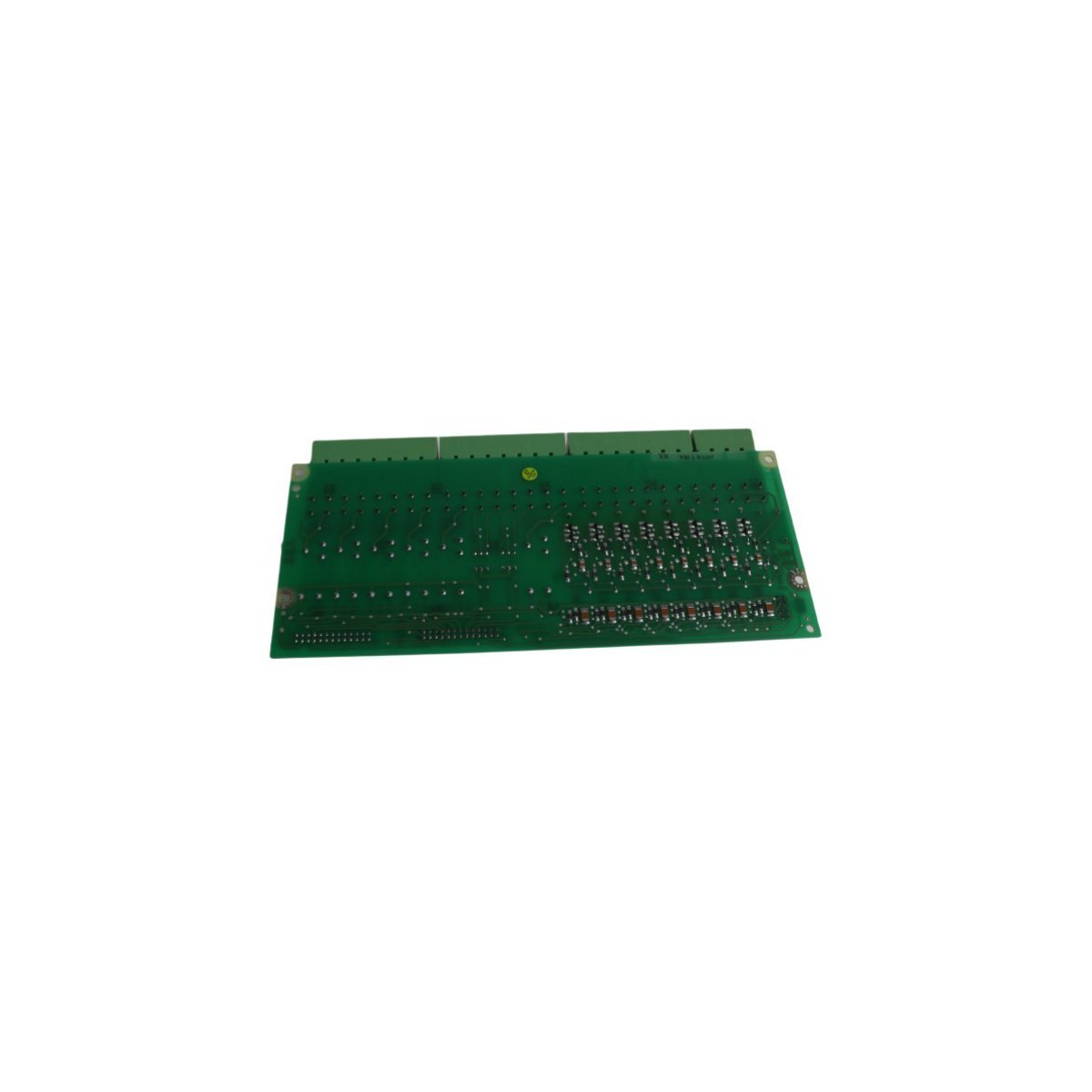

ABB SDCS-IOB-22 3BSE005177R1 Digital I/O Isolation Interface Module
Sale!
SKU: SDCS-IOB-22Â 3BSE005177R1
ABB SDCS-IOB-22 3BSE005177R1 Digital I/O Isolation Interface Module
The ABB SDCS-IOB-22 3BSE005177R1 is a digital isolated I/O expansion module designed for DCS800 drive systems. Featuring 8 inputs and 8 outputs, it provides essential galvanic isolation to protect control electronics from industrial noise while ensuring precise signal transmission.
The ABB SDCS-IOB-22, identified by part number 3BSE005177R1, serves as a critical digital input and output expansion interface specifically engineered for the DCS800 industrial drive series. This module functions as an isolation barrier between the internal drive control electronics and external field signals, which effectively prevents electromagnetic interference from compromising system logic. By providing galvanic isolation for digital signals, the SDCS-IOB-22 ensures high signal integrity and protects sensitive control hardware from voltage spikes and grounding loops common in heavy industrial power environments.
Operational Characteristics and Integration
This digital interface kit facilitates streamlined data acquisition by offering 8 dedicated input channels and 8 output channels. Because the module utilizes a high-performance circuit architecture, it maintains rapid switching speeds and accurate signal processing for real-time motion control and process automation. Furthermore, the hardware supports standardized communication through the DCS800 drive’s internal bus, allowing for seamless integration without complex software reconfiguration. Its compact form factor enables installation in high-density electrical cabinets, while the ruggedized Swedish engineering guarantees long-term stability in continuous-duty applications.
Galvanic Isolation:Â Provides superior protection for control electronics against external electrical noise and surges.
DCS800 Compatibility:Â Optimized specifically for ABB DCS800 drives to ensure native hardware handshaking and timing.
Dual-Channel Configuration:Â Features a balanced 8-DI/8-DO layout to handle a variety of sensor and actuator signals simultaneously.
Global Compliance:Â Adheres to CE, UL, and CSA safety standards, facilitating deployment in international automation projects.
Maintenance and Reliability
The SDCS-IOB-22 module prioritizes operational uptime through its simplified mounting design and maintenance-free solid-state components. Since the interface utilizes premium industrial-grade materials, it withstands the thermal stresses and vibrations typical of motor control centers. Additionally, the unit’s clear terminal labeling and diagnostic-friendly layout allow technicians to perform rapid signal tracing during routine inspections. Consequently, this module remains an essential spare part for facilities seeking to maintain the peak efficiency and safety of their ABB DC drive infrastructure.
Technical Specifications
Manufacturer:Â ABB
Model Identification:Â SDCS-IOB-22
Order Number:Â 3BSE005177R1
Module Type:Â Digital I/O Isolation Module (Field Kit)
System Series:Â DCS800 Drive Systems
I/O Capacity:Â 8 Digital Inputs / 8 Digital Outputs
