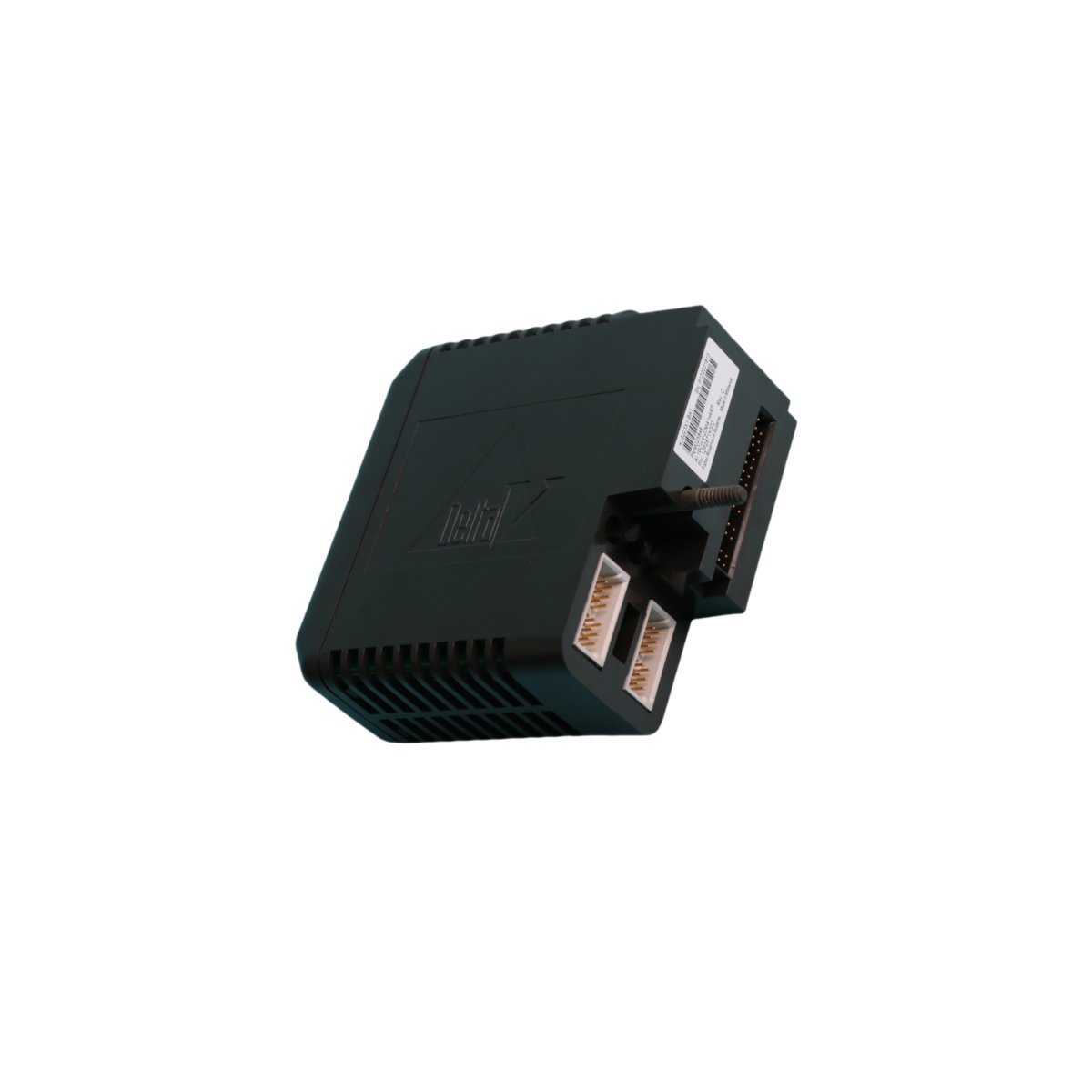

Emerson DeltaV KJ3223X1-BA1 12P2871X022 VE4003S2B6 I/O Module

Functional Overview

The Emerson KJ3223X1-BA1, also identified by part numbers 12P2871X022 and VE4003S2B6, serves as a high-density input/output component for the DeltaV Distributed Control System (DCS). This module facilitates the interface between field-level instrumentation and the DeltaV controller, converting analog or digital field signals into processed data for the system logic. Because it utilizes the S-series “plus” hardware architecture, it provides enhanced durability and faster processing capabilities for modern process automation requirements.

Key Technical Specifications

• Model Number: KJ3223X1-BA1
• Alternative Part Numbers: 12P2871X022 / VE4003S2B6
• System Compatibility: DeltaV S-series and M-series controller environments
• Input Type: Specifically configured for high-accuracy signal acquisition from process transmitters
• Power Consumption: Optimized low-wattage design to reduce heat dissipation within the I/O cabinet
• Mounting: Hot-swappable design allows for installation or removal while the system remains powered

Technical Characteristics and Design

The module architecture prioritizes system availability and signal integrity. Specifically, the KJ3223X1-BA1 incorporates the following features:

• Redundancy Support: This module supports redundant configurations, which ensures that a single hardware failure does not interrupt the continuous monitoring of critical process variables.
• Galvanic Isolation: The design includes robust electrical isolation between the field circuits and the internal backplane, thereby protecting the controller from high-voltage surges or electrical noise.
• Self-Diagnostics: The module constantly performs internal health checks. Consequently, the DeltaV system can alert operators to hardware faults or signal discrepancies before they lead to process downtime.
• Hot-Swapping Capability: Maintenance teams can replace the module without shutting down the controller, which significantly reduces the Mean Time to Repair (MTTR).

Industrial Applications

The VE4003S2B6 module is widely deployed across sectors where process stability is paramount. Primary applications include:

• Chemical Processing: Monitoring temperature and pressure loops in volatile environments.
• Refining and Petrochemical: Interfacing with critical flow meters and level sensors in hydrocracking or distillation units.
• Pharmaceutical Production: Maintaining precise environmental and batch parameters to ensure regulatory compliance and product quality.
• Power Generation: Providing high-speed data acquisition for boiler control and turbine auxiliary systems.
