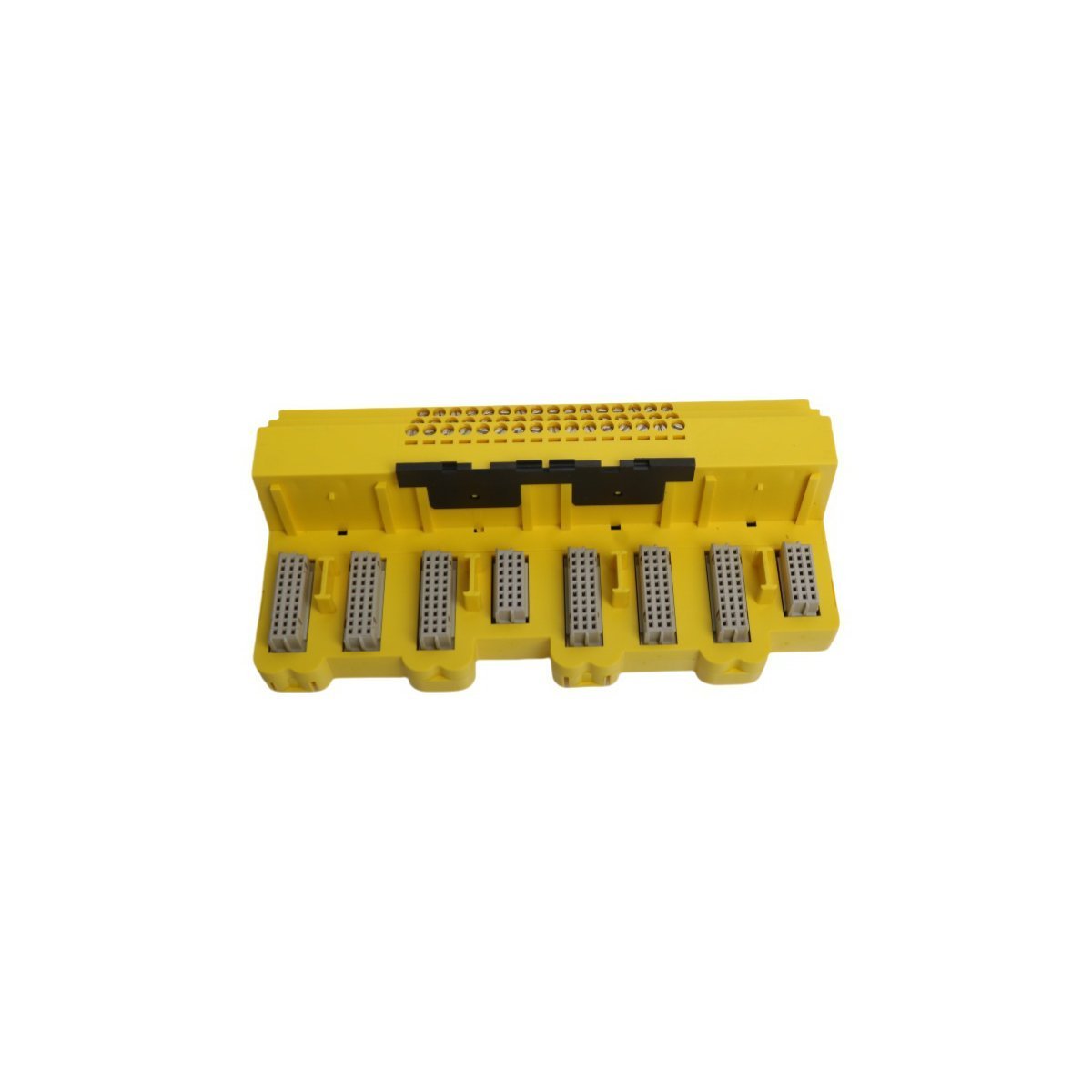

Configured for signal termination in DeltaV SIS process safety system networks, the Emerson KJ2201X1-JA1 12P3323X022 (KJ2201X1-JA1 SLS Redundant Terminal Block) provides direct physical/electrical execution.
| Model | Description |
|---|---|
| KJ2201X1-JA1 | DeltaV SIS SLS Redundant termination interface |
| 12P3323X022 | Internal Emerson factory manufacturing reference code |
| Parameter | Specification |
|---|---|
| Model | KJ2201X1-JA1 |
| Brand | Emerson |
| Origin | USA |
| Weight | 0.28 kg |
| Dimensions | 16.6 x 8.8 x 5.2 cm |
| Operating Temp | Standard industrial range |
| Power Consumption | Passive component |
| System Compatibility | DeltaV SIS |
The KJ2201X1-JA1 functions as a passive interconnect interface within the DeltaV SIS architecture and facilitates direct field-to-I/O card connectivity. This terminal block secures redundant field signal connections and ensures consistent electrical continuity for critical safety loops. Field engineers must follow DeltaV backplane wiring standards to maintain signal integrity and prevent impedance mismatches throughout the safety control loop. The design accommodates high-density terminal mounting and provides a structured physical path for signals requiring 4-20 mA HART loop protocol connectivity, which standard process instrumentation demands.
Q: Does the KJ2201X1-JA1 require external power for internal switching?
A: No, this unit is a passive termination component. It relies on the connected DeltaV SIS I/O card for logic execution and loop power distribution.
Q: How does this terminal block support redundant system configurations?
A: The hardware architecture provides dual-path termination points, allowing the SIS controller to monitor and execute fail-safe state transitions across redundant signal channels without hardware reconfiguration.
The Emerson DeltaV™ M-series KJ3002X1-BB1 (12P0683X092 / VE3006) is a legacy, high-precision thermocouple and mixed-signal I/O module designed for flexible process control within the DeltaV Distributed Control System (DCS). Capable of reading continuous analog variables alongside discrete status indicators, this modular card features built-in galvanic signal isolation, advanced thermocouple loop-burnout diagnostics, and high-density noise protection. Engineered for direct hot-swappable installation into M-series carriers, it delivers stable, industrial-grade data acquisition for critical temperature, flow, and pressure monitoring loops across harsh, high-interference manufacturing environments.
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
