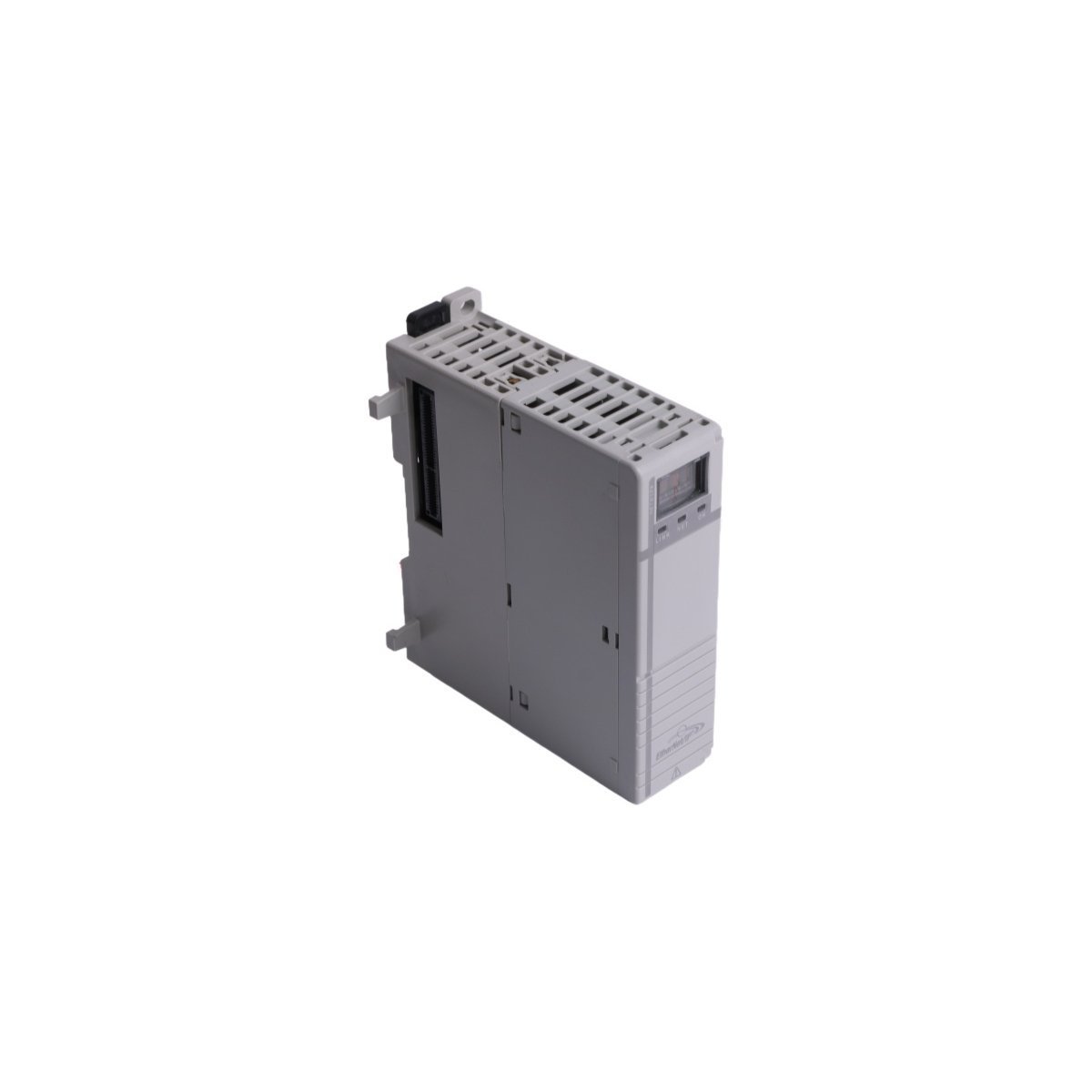

The Allen-Bradley 1768-ENBT is a 10/100 Mbps EtherNet/IP bridge for CompactLogix L43 and L45 controllers. It supports 64 CIP connections and 32 TCP/IP sessions. This module enables high-speed data exchange with HMIs, drives, and SCADA systems in industrial environments.
The Allen-Bradley 1768-ENBT functions as a high-speed communication interface for 1768 CompactLogix controller systems. This module specifically expands the networking capabilities of L43 and L45 processors. It facilitates seamless data transmission across industrial EtherNet/IP networks. Consequently, the unit connects controllers to human-machine interfaces, distributed I/O, and variable frequency drives.
This bridge module features a single RJ45 port supporting 10/100 Mbps communication speeds. The hardware utilizes auto-negotiation to detect the optimal network transfer rate automatically. Furthermore, it supports full-duplex operation to maximize bandwidth efficiency during heavy data traffic. The module handles simultaneous connections to multiple devices without compromising control loop performance.
The 1768-ENBT provides robust capacity for complex industrial architectures. It manages various connection types to ensure broad system compatibility.
The 1768-L43 controller supports up to two 1768-ENBT modules for redundant or segmented networking. Higher-tier 1768-L45 controllers can accommodate up to four modules simultaneously. This flexibility allows engineers to isolate enterprise traffic from dedicated control networks. The bridge also supports messaging between different Logix platforms and legacy Allen-Bradley hardware.
Front-panel LED indicators provide real-time status for the link, network activity, and module health. Additionally, a scrolling alphanumeric display offers detailed diagnostic codes during startup and operation. Installers must follow standard electrostatic discharge protocols to protect the internal circuitry. The module installs directly into the 1768 bus on the left side of the processor. This positioning ensures high-speed data exchange via the dedicated 1768 backplane.
