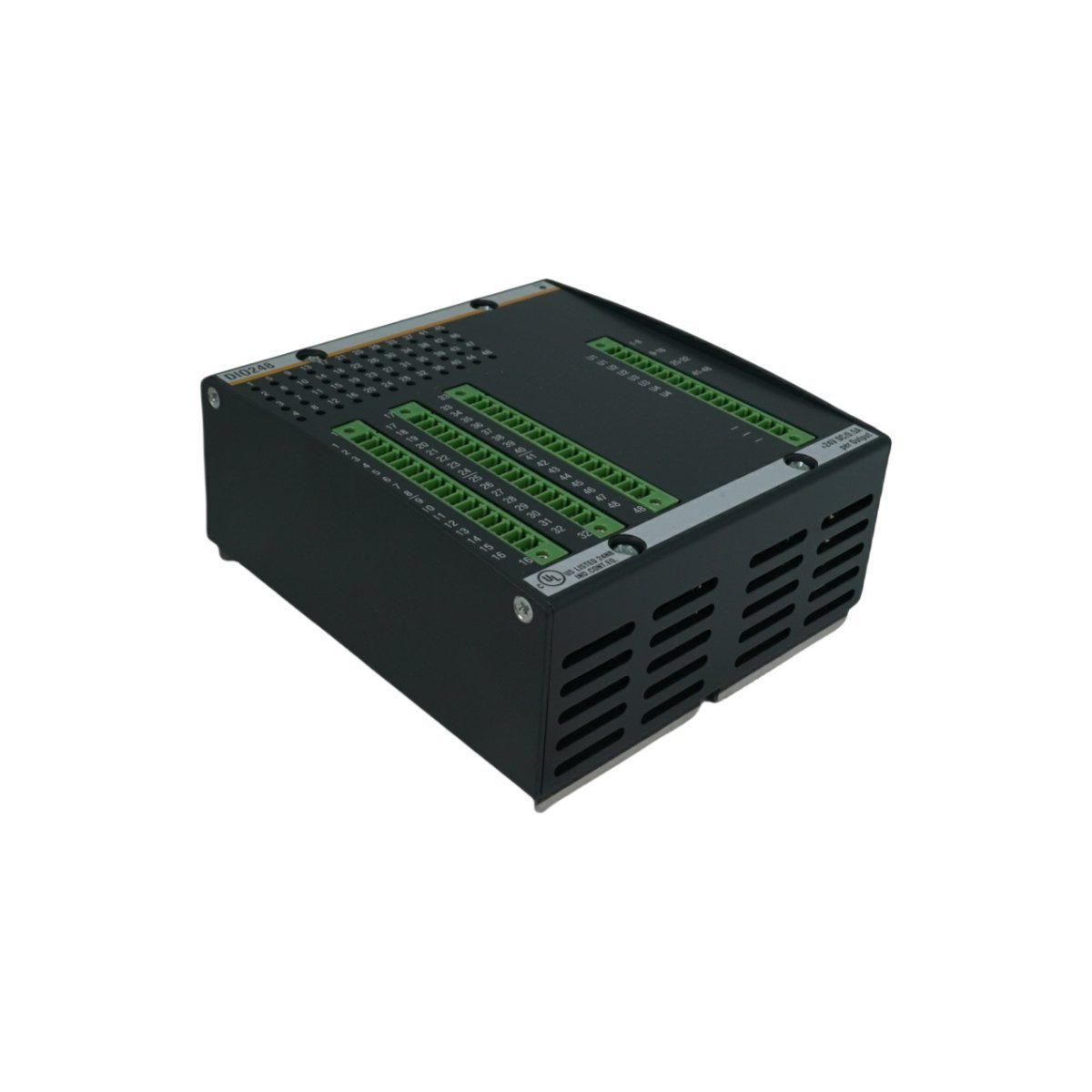

Bachmann DIO248 Digital Input/Output Module M1 Controller System

Primary System Role

The Bachmann DIO248 serves as a high-density, versatile digital interface for the M1 automation platform. By providing 48 independent digital channels in a single slot, this module allows for extensive monitoring and control of binary field devices such as sensors, switches, and contactors. To maximize hardware efficiency, the module features a flexible architecture where 32 channels function as dedicated inputs, while the remaining 16 channels operate as configurable I/O. Because it manages a high volume of signals, the DIO248 is particularly effective in complex machine control and power plant auxiliary systems where cabinet space is at a premium.

Enhanced Technical Performance

• Optimizes Configuration Flexibility: The module organizes its 48 channels into three distinct groups. Specifically, it provides 32 fixed inputs and 16 channels that can function either as inputs or outputs. As a result, engineers can adapt the module to changing field requirements without replacing hardware.
• Ensures High-Speed Signal Capture: The DIO248 supports ultra-fast signal processing with a 1 ms filter time. Furthermore, several channels can be configured for interrupt processing. In doing so, the module allows the CPU to react instantaneously to critical events, such as emergency stops or high-speed position triggers.
• Protects Against Electrical Overloads: Every output channel is engineered to be short-circuit proof and includes integrated thermal protection. Consequently, if a field-side wiring fault occurs, the module automatically disables the affected output to prevent permanent damage to the internal circuitry.
• Simplifies Maintenance Diagnostics: Beyond standard operation, the module provides comprehensive status reporting for each channel via the system backplane. Therefore, maintenance teams can remotely identify open-circuit or short-circuit conditions, significantly reducing the time required for on-site troubleshooting.
• Resists Extreme Environments: Because Bachmann offers this module in a “ColdClimate” (CC) version, it remains fully operational in temperatures as low as -30 °C. This resilience makes it an industry standard for wind turbine control systems and offshore energy projects.

Technical Specifications

• Model Variants: DIO248
• Total Channel Count: 48 Digital Channels
• Channel Distribution: 32 Inputs / 16 Configurable I/O
• Rated Input/Output Voltage: 24 V DC
• Input Logic Type: Sink/Source (Configurable via wiring)
• Output Current: 0.5 A per channel (Max 8 A total per group)
• Input Filter Time: 1 ms (Typical)
• Status Indicators: 48 Yellow LEDs for channel status; 1 Red/Green LED for module health
• Galvanic Isolation: 500 V (between field and system)
• Operating Temperature: -30 °C to +60 °C
• Weight: Approx. 180 g
