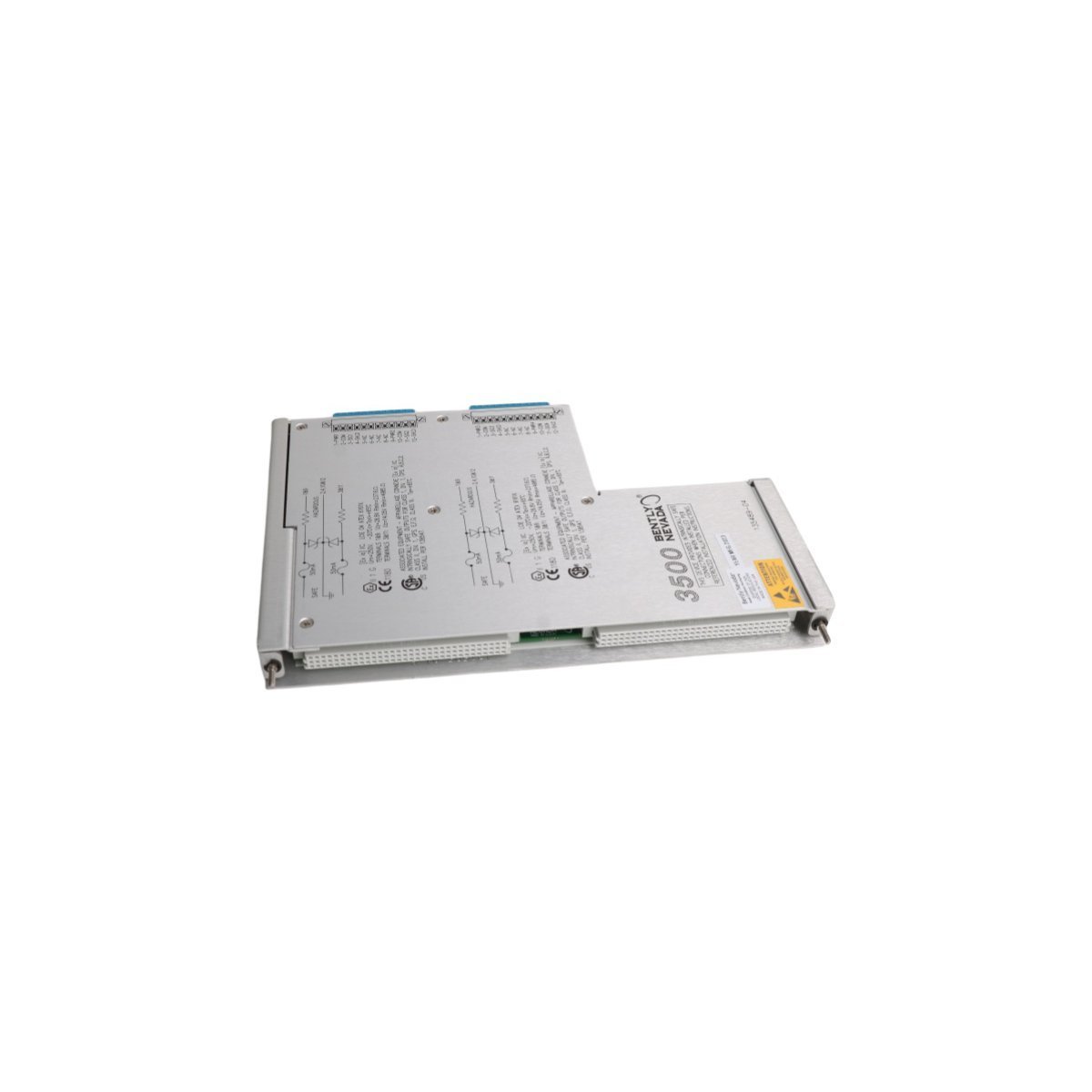

Bently Nevada 135489-04 Proximitor I/O Module

Technical Specification Overview

The Bently Nevada 135489-04 functions as a specialized Input/Output interface for the 3500/42M Proximitor Seismic Monitor. This module incorporates integrated galvanic isolators (internal barriers), which actively limit the electrical energy sent to proximity transducers located in hazardous areas. By providing this intrinsic safety protection within the rack itself, the 135489-04 eliminates the need for external zener barriers or galvanic isolators, significantly reducing cabinet space requirements and wiring complexity for Class I, Division 1 or Zone 0/1 environments.

Design and Functional Capabilities

Engineers designed this I/O module with internal terminations, meaning field wiring connects directly to the terminal blocks on the module itself. This configuration streamlines the installation process and reduces the number of intermediate connection points that could potentially fail. Furthermore, the 135489-04 supports up to four channels of vibration, position, or speed data, maintaining high signal-to-noise ratios despite the protective circuitry. The module also features gold-plated backplane interfaces to ensure long-term reliability in corrosive industrial atmospheres.

• Manufacturer: Bently Nevada
• Model Number: 135489-04
• Module Type: Proximitor I/O with Internal Barriers and Internal Terminations
• System Compatibility: 3500/42M Proximitor Seismic Monitor
• Channel Count: 4 Channels
• Hazardous Area Protection: Intrinsic Safety
• Termination Style: Internal (Direct screw terminals)
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Mounting: Rear slot of the 3500 Machinery Protection System rack
• Dimensions: 2.3 x 24.1 x 10.2 cm

Operational Impact and Industrial Applications

This I/O module actively supports machinery protection strategies in high-risk environments. Because it integrates safety barriers directly into the I/O architecture, it simplifies the compliance process for ATEX, IECEx, and North American hazardous area standards. Consequently, plant operators can monitor critical turbines and compressors in volatile atmospheres with total confidence. The 135489-04 processes raw signals for radial vibration, axial thrust, and differential expansion, ensuring the 3500 system receives the clean data necessary for automated machinery trips and diagnostic analysis.

Primary industrial applications include:

• Oil and Gas Production: Monitoring centrifugal compressors on offshore platforms and LNG facilities.
• Chemical Processing: Protecting high-speed pumps and mixers in explosive zones.
• Refining: Providing vibration data for critical hydrocrackers and distillation unit rotors.

Mechanical Integrity and Reliability

To ensure survival in punishing environments, Bently Nevada utilizes ruggedized components that resist the effects of high-frequency mechanical vibration. The 135489-04 includes built-in diagnostics that monitor the health of the internal barriers, providing the 3500 system with “NOT OK” status alerts if the protective circuitry is compromised. Additionally, the internal termination blocks utilize high-torque screw clamps to prevent field wires from loosening due to the constant mechanical oscillations common in heavy industrial facilities.
