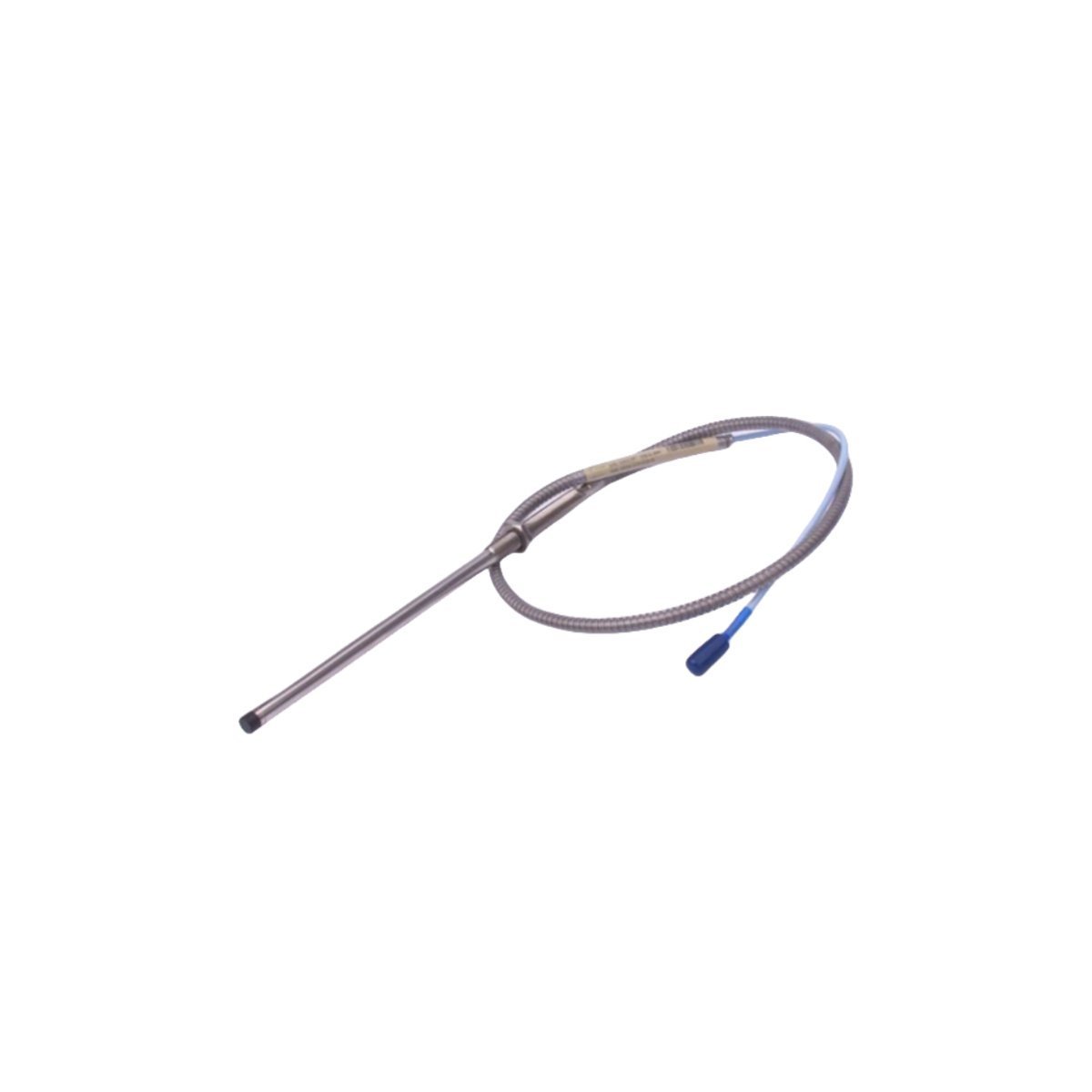

The Bently Nevada 330104-15-23-10-02-00 is a high-performance 8mm proximity probe designed for non-contacting vibration and displacement measurement. As part of the 3300 XL series, it provides precise shaft monitoring for turbines and compressors in demanding industrial environments.
The Bently Nevada 330104-15-23-10-02-00 represents a critical component of the 3300 XL 8mm Proximity Transducer System. This eddy current sensor facilitates the non-contacting measurement of both static and dynamic shaft motion. It specifically targets radial vibration, axial position, and rotational speed in high-speed rotating machinery. By utilizing electromagnetic induction, the probe monitors the gap between the sensor tip and the target material without physical contact, which prevents wear and ensures continuous data collection.
Furthermore, this proximity probe delivers exceptional performance in harsh industrial settings. The sensor tip is hermetically sealed to withstand high-pressure environments, while the gold-plated contacts within the ClickLoc connectors ensure superior electrical conductivity. Because the 3300 XL series features improved immunity to Radio Frequency Interference (RFI), the system maintains signal integrity even when located near high-voltage equipment. Additionally, the probe demonstrates excellent linear range stability across a wide temperature spectrum, which minimizes calibration drift over long-term operation.
Engineers typically deploy this probe in Turbine Supervisory Instrumentation (TSI) systems to protect high-value assets. Specifically, it is utilized for:
The Bently Nevada 21000-34-10-20-058-04-02 is a rigid proximity probe housing assembly designed for the external mounting of proximity probes on machinery casings. Its primary function is to provide a secure, environmentally sealed, and mechanically protected housing for a non-contacting eddy current proximity probe. This specific assembly, constructed from 304 Stainless Steel, ensures robust performance in corrosive industrial environments. It positions a 3300 XL 8 mm probe at a fixed distance from the mounting surface, defined by its 3.4-inch standoff dimension. When integrated into a Bently Nevada 3500 Machinery Protection System, the probe within the 21000-34-10-20-058-04-02 housing measures shaft vibration and position. The probe transmits a high-frequency RF signal, which is modulated by the gap to the conductive target. This signal is then demodulated by a Proximitor sensor, producing a DC voltage proportional to the gap. This voltage is processed by a 3500 monitor module (e.g., 3500/42M) to provide critical data for machinery diagnostics and protection, such as radial vibration, axial thrust position, and speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-34-10-20-058-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Material of Construction | 304 Stainless Steel |
| Mounting Thread Option | 3/4 - 14 NPT |
| Standoff Adapter Dimension (A) | 3.4 in (86 mm) |
| Housing Length (C) | 5.8 in (147 mm) |
| Included Probe | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length (B) | 2.0 m (6.6 ft) |
| Operating Temperature Range | -34 °C to +177 °C (-29 °F to +350 °F), limited by probe/cable specifications |
In Oil & Gas and Power Generation applications, the 21000-34-10-20-058-04-02 housing assembly demonstrates high reliability in demanding operational conditions. Its 304 Stainless Steel construction provides excellent resistance to corrosion from process fluids, steam, and harsh atmospheric contaminants common in these industries. The rigid design ensures the probe's measurement gap remains stable, preventing measurement drift and false alarms, which is critical for the protection of high-speed turbomachinery. The 3/4 - 14 NPT mounting thread, when installed correctly with appropriate sealant, provides a secure, pressure-tight seal against machine casing pressures. This configuration is rated for hazardous area classifications when used with appropriate intrinsic safety barriers. The assembly's design minimizes susceptibility to mechanical shock and vibration, ensuring the integrity of the measurement signal path from the probe to the monitoring system for long-term, uninterrupted machinery protection.
Q: What systems is the 21000-34-10-20-058-04-02 compatible with?
A: The 21000-34-10-20-058-04-02 contains a 3300 XL 8 mm probe. This probe is a component of a complete transducer system that must also include a 3300 XL extension cable and a 3300 XL Proximitor Sensor. The complete transducer system is directly compatible with Bently Nevada monitoring systems, including the 3500 Series, 3300 Series, and the Orbit 60 Series. It provides a standard analog voltage signal (typically 2 to 18 Vdc or -2 to -18 Vdc) to the monitor's input module for processing.
Q: What are the installation requirements?
A: Installation requires a machined mounting boss on the machine case with a 3/4 - 14 NPT tapped hole. The surface of the boss must be perpendicular to the shaft centerline to ensure accurate measurement. Use an appropriate thread sealant (e.g., PTFE tape or liquid sealant rated for the process temperature and fluid) on the NPT threads to create a secure seal and prevent loosening. The assembly should be tightened to the specified torque value. After mechanical installation, the probe gap must be set by adjusting the probe within the housing to achieve the desired DC voltage, typically the center of its linear range (e.g., -10 Vdc for a standard 80 mil / 2 mm range), before locking it in place.
The Bently Nevada 330881-28-04-034-06-02 is an integrated PROXPAC XL Proximity Transducer system. This component combines an 8 mm proximity probe, an extension cable, and a signal conditioner into a single, factory-calibrated assembly, which eliminates the need for individual component calibration in the field. The transducer operates on the eddy current principle. The probe tip emits a high-frequency radio frequency (RF) signal, which induces eddy currents on the surface of a conductive machine element, such as a rotating shaft. The transducer's internal circuitry measures the impedance changes resulting from the interaction between the RF field and the eddy currents. This impedance is directly proportional to the physical gap between the probe tip and the target surface. The integrated signal conditioner demodulates this signal and provides a continuous DC voltage output that is precisely proportional to the measured gap. This output voltage is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for analysis of vibration, axial position, or rotational speed. The construction of the 330881-28-04-034-06-02 ensures high signal integrity by minimizing interconnections, making it suitable for critical machinery monitoring applications.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330881-28-04-034-06-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Condition | Brand New |
| Warranty | 12 Months |
| Total System Length | 2.8 metres (9.2 feet) |
| Probe Configuration | 3300 XL 8 mm probe, 1/4-28 UNF thread, 0.5 m cable |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2); ATEX/IECEx (Zone 0/1) |
| Scale Factor | 8.0 V/mm (200 mV/mil), ±5% for AISI 4140 Steel |
| Linear Range | 2.0 mm (80 mils), beginning at 0.25 mm (10 mils) from the probe face |
| Frequency Response | 0 Hz (DC) to 10 kHz (-3 dB) |
| Power Supply Requirement | -17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
| Mounting Option | Panel Mount, 4-Hole Square Flange |
In Oil & Gas and Power Generation applications, the 330881-28-04-034-06-02 provides continuous, online data for machinery protection and condition monitoring. It is engineered for measuring radial vibration, axial thrust position, and differential expansion on large rotating equipment such as gas and steam turbines, centrifugal and reciprocating compressors, and large pump motors. The integrated design enhances reliability by eliminating the connectors between the probe, extension cable, and Proximitor sensor, which are common points of failure and signal degradation due to moisture ingress or vibration. The factory-calibrated system ensures measurement consistency and accuracy without field adjustments. Environmentally, the 330881-28-04-034-06-02 is specified with multiple agency approvals (CSA, ATEX, IECEx), certifying it for safe operation in hazardous areas with explosive gas atmospheres (e.g., Class I, Division 1; Zone 0). The electronics housing is rated for an operating temperature of -34 °C to +85 °C (-30 °F to +185 °F), ensuring performance in demanding industrial environments.
Q: What systems is the 330881-28-04-034-06-02 compatible with?
A: The 330881-28-04-034-06-02 is fully compatible with the Bently Nevada 3500 Machinery Protection System, specifically interfacing with modules such as the 3500/42M Proximitor/Seismic Monitor. It is also compatible with any PLC, DCS, or data acquisition system that can provide a -17.5 Vdc to -26 Vdc power supply and accept a proportional analog voltage input (typically configured for a range like -2 to -18 Vdc). The transducer is factory-calibrated for AISI 4140 steel; use with other target materials will require a different calibration or result in measurement inaccuracies.
Q: What are the installation requirements?
A: Installation requires both mechanical mounting and electrical wiring. The probe portion, with its 1/4-28 UNF thread, must be installed in a rigid bracket and its gap set relative to the machine shaft. The standard practice is to set the DC gap voltage to the center of the linear range (e.g., -10.0 V
The Bently Nevada 16710-33 is a multi-conductor, shielded interconnect cable designed for high-fidelity signal transmission within the 3500 Machinery Protection System. Its primary function is to provide a reliable electrical connection between a 3500 series I/O module and its associated external or internal termination blocks. This specific cable, with a length of 1.0 meter (3.3 feet), is critical for routing low-level analog signals from machinery sensors, such as proximity probes or accelerometers, to the monitoring modules for processing. The construction of the 16710-33 incorporates robust shielding to reject electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring high signal integrity, which is paramount for accurate vibration, position, and speed measurements. One end features a high-density D-subminiature connector for secure attachment to the I/O module, while the other end is configured for connection to the system's terminal strips. The precise engineering of the 16710-33 ensures that the signal characteristics are preserved throughout the measurement chain, enabling the 3500 system to perform its protective and diagnostic functions with maximum accuracy and reliability.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 16710-33 |
| Product Type | Interconnect Cable |
| Condition | Brand New |
| Warranty | 12 Months |
| Cable Length | 1.0 meter (3.3 feet) |
| Connector A | Female D-subminiature (DB-type) for 3500 I/O Module |
| Connector B | Pigtail with pre-stripped conductors for terminal block connection |
| Shielding | Overall aluminum/Mylar foil shield with drain wire for EMI/RFI rejection |
| Conductor Gauge | 22 AWG, stranded tinned copper |
| Operating Temperature | -30°C to +100°C (-22°F to +212°F) |
| Jacket Material | Industrial Grade PVC, Gray |
In Oil & Gas and Power Generation applications, the 16710-33 interconnect cable demonstrates high reliability in continuous-duty environments. Its robust construction is engineered to withstand the typical ambient conditions of a plant floor, including moderate vibration and wide temperature swings as specified by its -30°C to +100°C operating range. The cable's performance is defined by its ability to maintain signal integrity for critical measurements on assets like gas and steam turbines, centrifugal and reciprocating compressors, and large pump systems. The multi-layer shielding is effective in mitigating electrical noise from variable frequency drives (VFDs), motors, and high-voltage lines, preventing signal corruption that could lead to false alarms or missed protection events. The design focuses on long-term stability, with high-quality connectors and strain relief that prevent intermittent connections, a common failure point in industrial settings. The 16710-33 is an integral component in achieving the high Mean Time Between Failure (MTBF) rates expected from a SIL-rated machinery protection system.
Q: What systems is the 16710-33 compatible with?
A: The 16710-33 is specifically designed for use with the Bently Nevada 3500 Machinery Protection System. It is used to connect various 3500 I/O modules, such as the 3500/40M Proximitor Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor, to their corresponding external termination blocks (e.g., 3500/25 Keyphasor I/O, 3500/40 External Termination Block) or internal termination I/O modules. Compatibility is dependent on the specific I/O module and termination type being used in the 3500 rack configuration.
Q: What are the installation requirements?
A: Proper installation is critical for system performance. First, ensure all power to the 3500 rack is de-energized before installation. Securely fasten the D-sub connector of the 16710-33 to the rear of the designated I/O module using the integrated jackscrews. Route the cable through designated cable trays, avoiding sharp bends (maintain a minimum bend radius of 10x the cable diameter), pinch points, and proximity to high-voltage power cables to prevent physical damage and noise induction. Land the pre-stripped conductors of the pigtail end onto the correct terminals of the associated terminal block, following the wiring diagram specific to the monitor and transducer type. Ensure proper strain relief is applied to the cable at both ends. The cable's shield drain wire must be terminated correctly, typically at the rack chassis ground terminal only, to prevent ground loops per Bently Nevada system grounding guidelines.
The Bently Nevada 21000-16-05-00-115-03-02 is a rigid proximity probe housing assembly engineered to provide a secure and stable mounting for eddy current proximity probes used in machinery protection systems. Its primary function is to physically protect the probe while positioning it at a precise, fixed distance from the observed machine shaft or target surface. This specific assembly, constructed from 303 stainless steel, ensures mechanical integrity and corrosion resistance in harsh industrial environments. It integrates as a critical front-end mechanical component for systems like the Bently Nevada 3500. While the housing itself is a passive component and does not transmit an electrical signal, its dimensional accuracy is fundamental for the integrity of the measurement chain. By holding the probe stationary relative to the machine casing, it enables the connected Proximitor Sensor and monitor to accurately measure radial vibration, axial thrust position, and phase reference (Keyphasor) data. The 1.6-inch penetration length and 1-1/4 - 12 UNF mounting thread are specified for direct installation into pre-drilled and tapped holes on machine casings.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21000-16-05-00-115-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 303 Stainless Steel |
| Mounting Thread | 1-1/4 - 12 UNF |
| Penetration Length (A) | 1.6 in (40.6 mm) |
| Standoff Length (B) | 0.5 in (12.7 mm) |
| Compatible Probe Series | Bently Nevada 3300 XL 8mm, 3300 8mm, 7200 5mm & 8mm |
| Mounting Option | Supplied with two 1-1/4 - 12 UNF mounting nuts |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
In Oil & Gas and Power Generation applications, the 21000-16-05-00-115-03-02 housing assembly demonstrates high reliability on critical rotating machinery such as gas and steam turbines, centrifugal compressors, and boiler feed pumps. Its rigid, single-piece 303 stainless steel construction provides excellent resistance to mechanical vibration and thermal expansion, ensuring measurement stability and data integrity for the connected condition monitoring system. The material specification offers robust protection against corrosion from hydrocarbons, process chemicals, and atmospheric moisture. As a passive mechanical component, its Mean Time Between Failures (MTBF) is exceptionally high, with reliability being primarily dependent on correct installation and torque procedures. The specified operating temperature range of -51°C to +177°C allows for direct mounting on hot machine casings without degradation of its mechanical properties, making it suitable for a wide spectrum of industrial operating conditions.
Q: What systems is the 21000-16-05-00-115-03-02 compatible with?
A: The 21000-16-05-00-115-03-02 is designed as a front-end component for Bently Nevada's 3500 and 3300 Machinery Protection and Condition Monitoring Systems. It is mechanically compatible with any system utilizing Bently Nevada 3300 XL 8mm, 3300 8mm, or 7200 series (5mm and 8mm) proximity probes. Its function is purely mechanical, so electrical compatibility is determined by the probe, extension cable, and Proximitor sensor it is used with.
Q: What are the installation requirements?
A: Installation requires a pre-drilled and tapped hole in the machine casing with a 1-1/4 - 12 UNF thread. The housing is threaded into this mount point. The proximity probe is then inserted into the housing and its axial position is adjusted to set the correct DC gap voltage relative to the shaft
The Bently Nevada 330103-00-11-50-02-05 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-11-50-02-05 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 330103-00-11-50-02-05 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
The Bently Nevada 330101-00-20-90-02-00 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330101-00-20-90-02-00 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 330101-00-20-90-02-00 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
The Bently Nevada 84661-82 is a genuine industrial automation component designed for reliable operation in demanding environments. This high-quality product ensures optimal performance and long-term durability for critical machinery protection systems.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 84661-82 |
| Condition | Brand New |
| Warranty | 12 Months |
This Bently Nevada 84661-82 component delivers consistent performance in harsh industrial environments. It is engineered for seamless integration with Bently Nevada monitoring systems, ensuring accurate data collection for predictive maintenance and operational efficiency.
Q: Is this an authentic Bently Nevada product?
A: Yes, this is a 100% genuine Bently Nevada product with full manufacturer warranty.
Q: What warranty is included?
A: All products include a standard 12-month warranty with comprehensive technical support.
