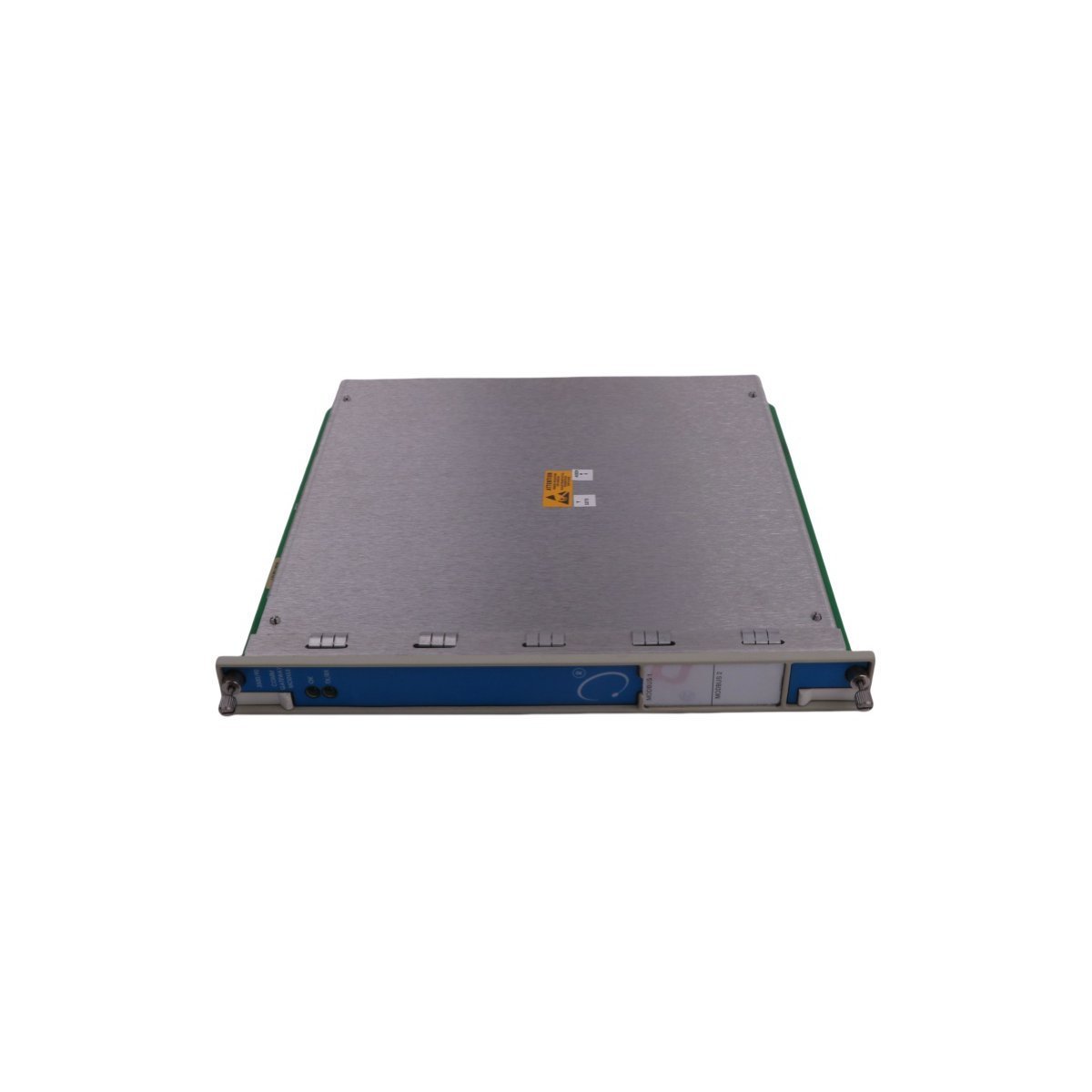

Bently Nevada 3500/90 Communication Gateway Module

Technical Overview

The Bently Nevada 3500/90 Communication Gateway Module acts as a primary interface between the 3500 Monitoring System and external plant control architectures. This module significantly enhances system interoperability by collecting data from the internal rack and translating it into industry-standard protocols. Consequently, operators gain the ability to stream real-time machinery health information directly into Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), or human-machine interfaces (HMI). By serving as a secure data bridge, the 3500/90 eliminates the need for complex manual data retrieval and simplifies the integration of vibration monitoring into broader plant management strategies.

Operational Characteristics and Integration

Furthermore, this module supports multiple communication protocols, including Modbus (both RS232/RS422/RS485 and Ethernet), to ensure compatibility with diverse network infrastructures. The 3500/90 actively manages data traffic within the rack, ensuring that critical protection parameters reach external systems without latency. Because the module possesses high-speed processing capabilities, it can handle large volumes of data from various 3500 monitors simultaneously, providing a comprehensive view of asset status.

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 3500/90
• Product Category: Communication Gateway / Interface Module
• System Series: 3500 Machinery Protection System
• Physical Weight: 0.8 kg
• Module Dimensions: 2.6 cm x 25.3 cm x 24 cm
• Primary Protocol Support: Modbus RTU / Modbus TCP/IP
• Environmental Range: -30°C to +65°C (-22°F to +150°F)
• Origin: USA
• HS Code: 8537101190

Industrial Applications and Performance

Beyond simple data relay, the 3500/90 module empowers engineers to implement advanced predictive maintenance programs. Specifically, power generation facilities and petrochemical refineries rely on this gateway to monitor high-value assets such as:

• Large-scale steam and gas turbines.
• Centrifugal and reciprocating compressors.
• High-pressure boiler feed pumps and cooling tower fans.

In addition to its data handling strengths, the 3500/90 features a hot-swappable design. This allows maintenance teams to replace the module while the rest of the 3500 rack remains operational, thereby preventing any interruption to machinery protection services. Moreover, the module includes comprehensive onboard diagnostics that continuously monitor its own health and communication status, alerting operators immediately if a network fault occurs.

Resilience and Maintenance

To ensure long-term reliability in harsh plant environments, Bently Nevada utilizes industrial-grade components that resist electromagnetic interference and thermal fluctuations. The module also supports redundant power supply configurations, which further minimizes the risk of data loss during electrical disturbances. Additionally, the clear LED status indicators on the front panel allow for rapid visual inspections, helping technicians confirm network activity and module health at a glance.
