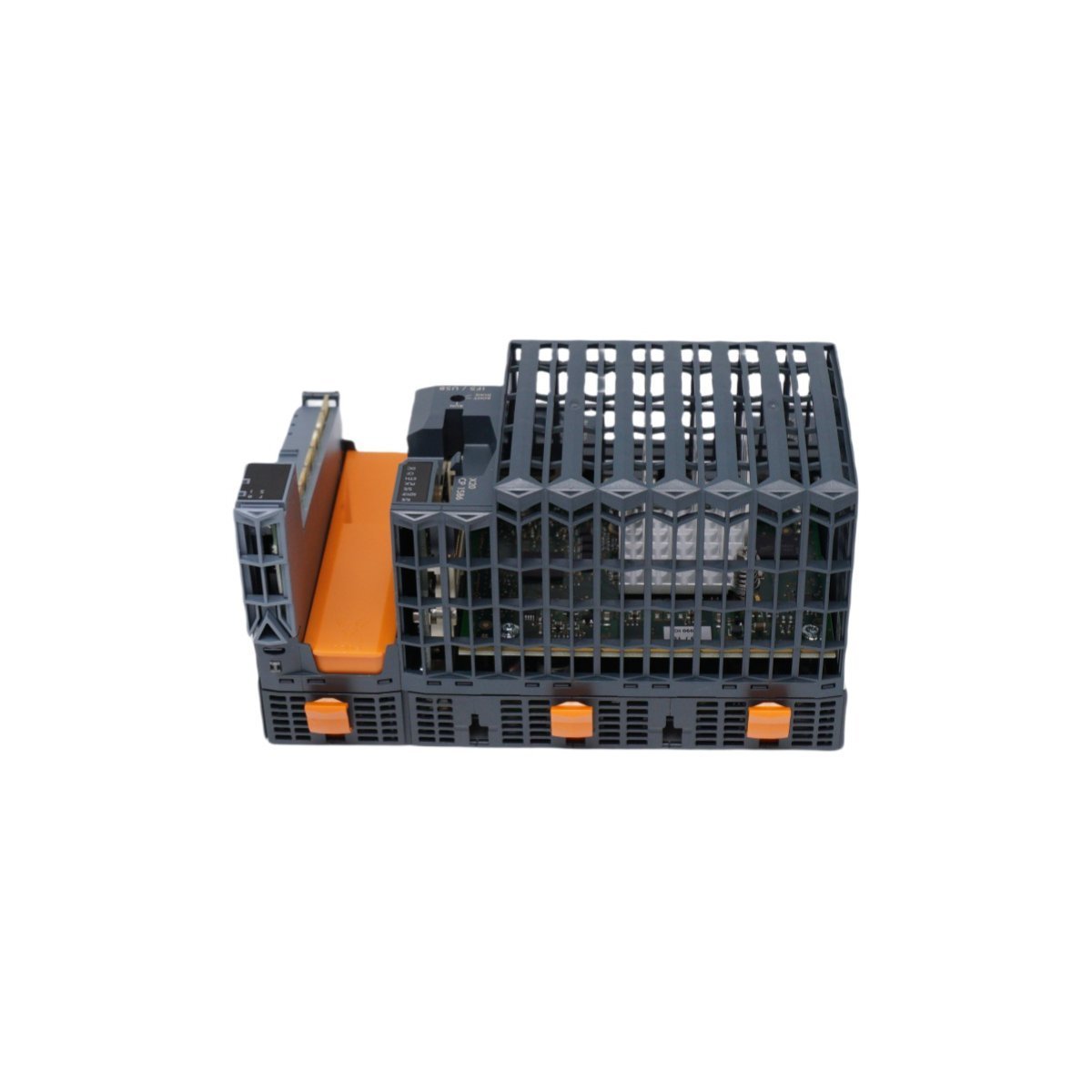

B&R X20CP1586 X20 CPU Module

The B&R X20CP1586 serves as a powerful central processing unit within the modular X20 automation platform. It utilizes Intel Atom processor technology to achieve a 1.5 GHz clock speed. This dual-core architecture handles complex calculation tasks and high-speed logic execution simultaneously. Consequently, the controller provides the computational depth required for modern CNC and robotics. Moreover, the fanless design ensures long-term hardware reliability by eliminating moving parts. This makes it an ideal choice for maintenance-free operation in various industrial sectors.

Advanced Communication and Expansion

This CPU module features extensive connectivity options to support diverse network architectures. It includes an integrated Gigabit Ethernet port for high-bandwidth data exchange. Additionally, the hardware provides three expansion slots for modular interface cards. These slots allow users to add specific fieldbus protocols like CAN or PROFIBUS. The unit also supports POWERLINK V1/V2 for real-time, deterministic motion control. Thus, the X20CP1586 integrates easily into large-scale distributed control systems. Engineers can scale the system functionality without replacing the core processor.

Robust I/O Management and Redundancy

The X20CP1586 manages up to 128 local X20 I/O modules through an integrated I/O processor. This dedicated hardware handles signal processing independently to maintain low cycle times. Furthermore, the controller supports CPU redundancy for applications requiring maximum uptime. This feature ensures continuous production if the primary controller encounters a hardware fault. The module also resists high levels of vibration and shock in heavy-duty environments. Therefore, it maintains peak performance in packaging lines and metalworking machinery.

Simplified Maintenance and Deployment

Maintenance teams benefit from the removable CompactFlash card for quick software updates. This storage contains the entire application and firmware for easy hardware swaps. Additionally, the unit features diagnostic LEDs for immediate troubleshooting of power and status. The wide operating temperature range allows for installation in unconditioned control cabinets. Integrated energy efficiency reduces heat generation and overall power consumption. Consequently, the X20CP1586 represents a sustainable solution for long-term machine life cycles. Its modularity and power provide a future-proof foundation for smart factories.

Core Technical Specifications

• Processor: Intel Atom 1.5 GHz Dual-Core
• Memory: 512 MB DDR2 RAM
• External Storage: CompactFlash Slot (Removable)
• Local I/O Capacity: Supports up to 128 X20 Modules
• Network Ports: 1x Gigabit Ethernet, 1x POWERLINK
• Peripheral Ports: 1x USB 2.0 interface
• Operating Temp: -25°C to +60°C (-13°F to 140°F)
• Synchronization: Nanosecond-level I/O processing
