Sale!
SKU: PR6424/002-130 CON021

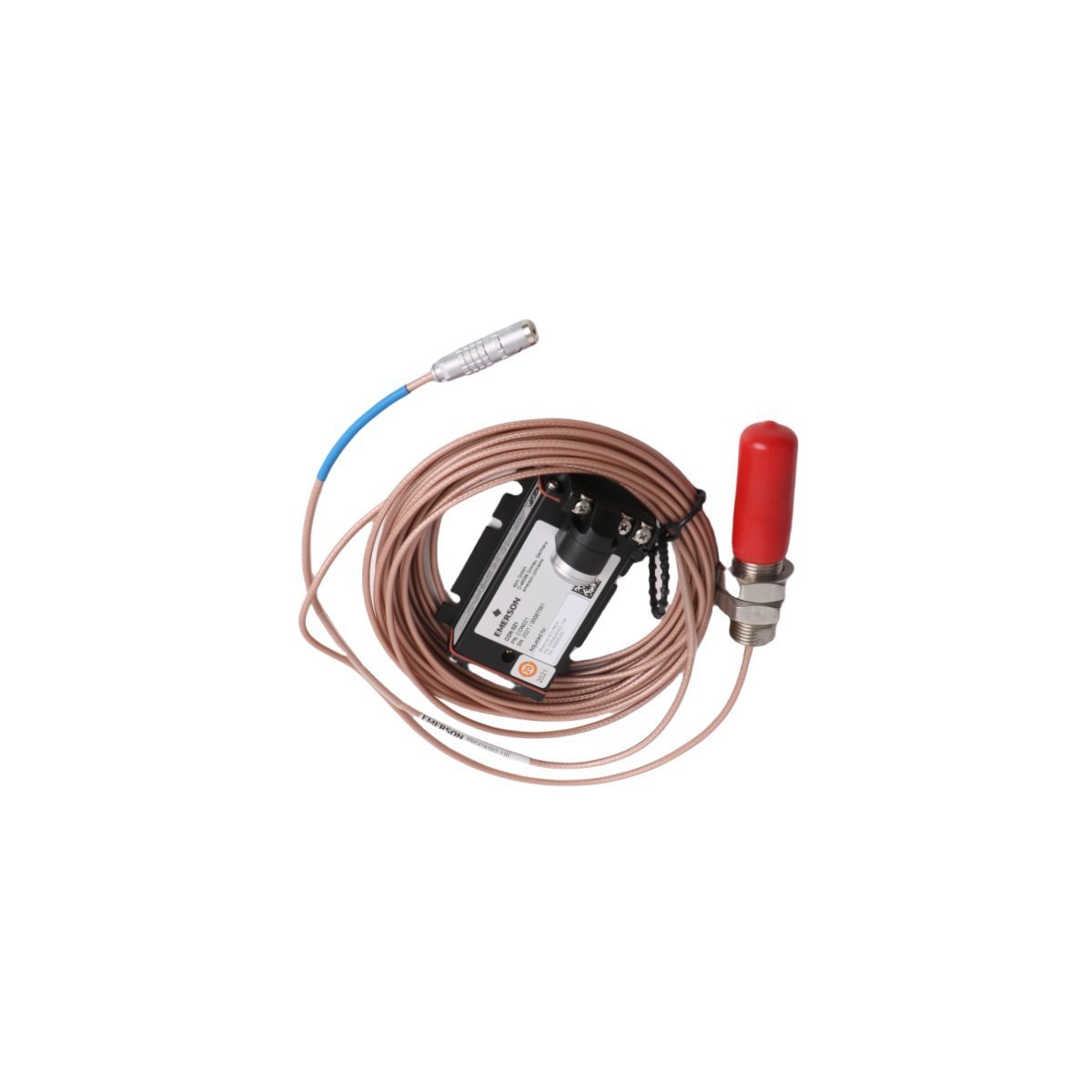

Emerson Epro PR6424/002-130 CON021 Displacement Sensor

The Emerson PR6424/002-130 CON021 is a specialized 8mm non-contacting displacement sensor for industrial vibration monitoring. Built for extreme temperatures and high-pressure environments, it provides critical shaft position data for turbines, compressors, and pumps within a DCS framework.

Request a Quote

Technical Overview

The Emerson PR6424/002-130 CON021 is a high-performance eddy current transducer engineered for the non-contacting measurement of shaft vibration and displacement. This specific variation of the PR6424 series features a specialized 8mm sensor tip designed to deliver high linearity and sensitivity when monitoring critical rotating machinery. By generating a high-frequency electromagnetic field, the sensor detects minute changes in the gap between the probe tip and the target material, typically a rotating shaft, providing essential data for machine health diagnostics.

Functional Performance

The PR6424/002-130 operates on the eddy current principle, converting the physical distance into a proportional electrical signal. This model is specifically optimized for high-temperature and high-pressure environments, ensuring that the sensor remains accurate even under the thermal expansion conditions common in steam turbines and large compressors. The “CON021” designation indicates a specific connector and cable configuration designed to maintain signal integrity over distance, preventing electromagnetic interference from distorting the vibration readings.

Key Technical Characteristics

  • Manufacturer: Emerson (Epro Brand)
  • Model Designation: PR6424/002-130
  • Configuration Code: CON021
  • Measurement Range: Typically up to 2.0 mm or 4.0 mm (dependent on driver calibration)
  • Sensor Tip Diameter: 8 mm
  • Thread Type: Metric M10x1 (Standard for industrial mounting)
  • Operating Temperature Range: -35°C to +175°C
  • Pressure Resistance: Up to 6 bar at the sensor tip
  • Target Material: Ferromagnetic steel (standard calibration for 42CrMo4)

Primary Applications

  • Turbine Monitoring: Continuous tracking of radial shaft vibration and axial position in steam and gas turbines.
  • Compressor Protection: Detection of surge conditions or bearing wear in high-speed centrifugal compressors.
  • Industrial Pumps: Monitoring of shaft run-out and eccentricities in large-scale fluid transport systems.
  • Gearbox Analysis: Assessing the alignment and stability of high-load transmission shafts.

Operational Advantages

  • Early Fault Detection: Identifies mechanical imbalances and bearing degradation before they lead to unplanned outages.
  • Predictive Maintenance: Supports modern maintenance strategies by providing real-time data to Emerson’s AMS Asset Monitor or similar DCS platforms.
  • Environmental Durability: The stainless steel housing and technical plastic tip resist corrosion and oil contamination.
  • Scalable Integration: Designed for seamless connectivity with the PR6422, PR6423, and PR6425 series drivers and converters.
