  4. Emerson EPRO PR6423/10R-141 CON031 Eddy Current Sensor
Sale!
SKU: PR6423/10R-141 CON031

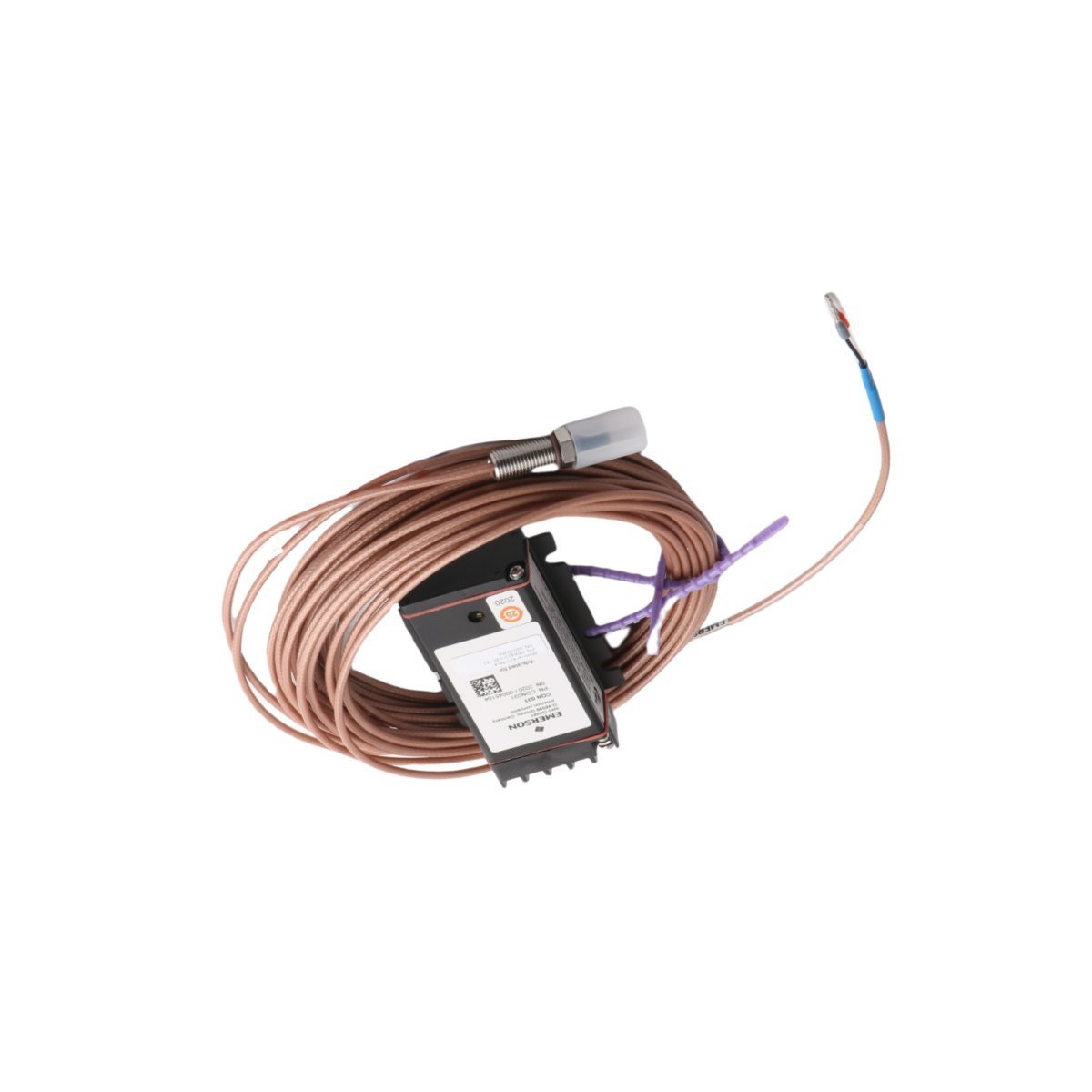

Emerson EPRO PR6423/10R-141 CON031 Eddy Current Sensor

The Emerson EPRO PR6423/10R-141 CON031 is a professional 8mm non-contact eddy current sensor designed for industrial vibration and displacement monitoring. It offers high-precision measurement for rotating machinery, ensuring operational safety and enabling predictive maintenance in harsh environments.

Request a Quote

Technical Overview

The Emerson PR6423/10R-141 CON031 is a high-precision eddy current sensor engineered for non-contact displacement and vibration measurements. As a core component of the EPRO product line, this 8mm sensor detects minute changes in the distance between the probe tip and a conductive target material. Consequently, it provides critical machinery health data to monitoring systems, allowing for the continuous supervision of industrial rotating equipment such as turbines, pumps, and compressors.

Functional Characteristics

  • Non-Contact Measurement Precision The sensor utilizes electromagnetic induction to monitor shaft vibration and axial position without making physical contact. This approach prevents mechanical wear and ensures long-term measurement stability in high-speed rotating machinery applications.
  • Robust Industrial Resilience Emerson has constructed the PR6423/10R-141 to withstand extreme industrial conditions. The sensor features high resistance to moisture, oil, and chemical contaminants, which maintains its operational integrity in the demanding environments found in oil and gas or power generation facilities.
  • Advanced Diagnostic Integration The CON031 configuration facilitates seamless data exchange between field sensors and DCS or PLC networks. Because it supports high-speed data transfer, the module enables real-time monitoring of system health, allowing maintenance teams to identify mechanical anomalies before they lead to catastrophic equipment failure.
  • Scalable System Architecture The modular nature of the EPRO series ensures that this sensor integrates easily into existing vibration monitoring racks. As plant requirements evolve, operators can scale their monitoring network with minimal reconfiguration, thereby protecting the initial infrastructure investment.

Key Technical Specifications

  • Manufacturer: Emerson (EPRO Series)
  • Model Identifier: PR6423/10R-141
  • Connector Variant: CON031
  • Sensor Type: Eddy Current
  • Probe Diameter: 8 mm
  • Target Applications: Vibration, Displacement, and Speed Monitoring
  • Physical Mass: 0.28 kg
  • Dimensions: 15cm x 2.7cm x 18.3cm

Operational Benefits and Maintenance

By implementing the PR6423/10R-141 sensor, facilities transition from reactive maintenance to proactive asset management. The high-speed response time of the eddy current technology ensures that even transient vibrations are captured and analyzed. Although this specific model reached its official discontinuation date on December 31, 2018, it remains a vital component for the maintenance of legacy Emerson and EPRO machine protection systems globally.
