  4. Emerson PR9350/02 EPRO Cylinder Expansion Displacement Sensor
Sale!
SKU: PR9350/02

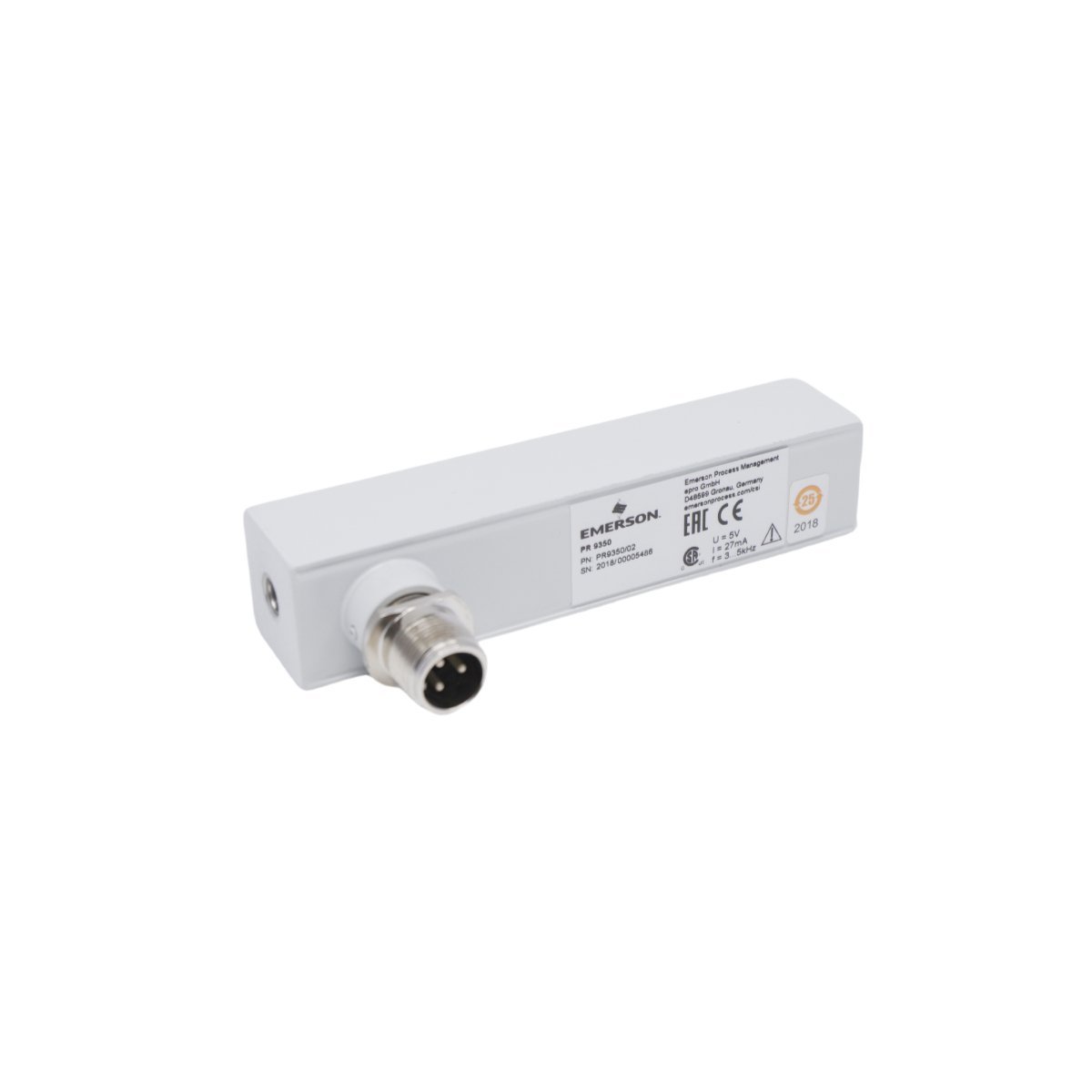

Emerson PR9350/02 EPRO Cylinder Expansion Displacement Sensor

The Emerson PR9350/02 is a high-performance EPRO cylinder expansion sensor that provides precise linear displacement monitoring for turbine casings and DCS applications. This non-contacting eddy current transducer tracks thermal growth in real-time, allowing operators to maintain mechanical safety and operational stability for critical industrial machinery.

Request a Quote

Technical Overview

The Emerson PR9350/02 operates as a specialized eddy current sensor that facilitates precise cylinder expansion measurements within Distributed Control Systems (DCS). This linear displacement transducer employs non-contacting technology to monitor thermal growth and mechanical positioning in turbine casings and large-scale industrial machinery. Furthermore, the PR9350/02 delivers real-time feedback regarding expansion changes. Consequently, this data allows operators to prevent structural damage that results from uneven heating or excessive physical stress during machine startup. By providing these insights, the module actively safeguards high-value rotating assets against mechanical failure.

Operational Characteristics and Benefits

  • Precision Measurement Control: The sensor utilizes advanced eddy current principles to detect minute changes in displacement. Therefore, it ensures the highest level of data accuracy for critical safety loops and monitoring stations.
  • Hardened Environmental Resilience: Emerson engineers this module to withstand extreme industrial conditions. Specifically, the design resists high-temperature fluctuations and intense vibration levels common in energy production environments.
  • Proactive Automated Diagnostics: Integrated self-monitoring routines continuously verify the integrity of the sensor signal. As a result, this feature significantly reduces the frequency of manual inspection cycles and lowers maintenance costs.
  • Simplified System Integration: The PR9350/02 supports standard communication protocols, which enables technicians to install the unit seamlessly into existing EPRO monitoring racks or DeltaV automation networks.
  • Robust Operational Stability: A heavy-duty housing protects the internal sensing elements from chemical exposure and electromagnetic interference. Thus, the sensor maintains consistent signal stability even during long-term deployment in harsh areas.

Primary Industry Applications

  • Turbine Casing Monitoring: Tracks casing expansion in steam and gas turbines to maintain safe clearance levels.
  • Oil and Gas Operations: Monitors mechanical displacement in large compressors and pump housings to ensure structural integrity.
  • Power Generation Facilities: Supplies essential data for predictive maintenance programs in large-scale utility plants.
  • Manufacturing Processes: Measures linear movement in heavy-duty hydraulic systems and mechanical stamping equipment.

Technical Product Specifications

  • Manufacturer: Emerson (EPRO Series)
  • Model Number: PR9350/02
  • Component Type: Cylinder Expansion / Linear Displacement Sensor
  • Sensing Method: Non-contact Eddy Current
  • Output Interface: Analog Signal for DCS/PLC Integration
  • Construction: Industrial-grade hardened housing
  • Weight: 0.4 kg
  • Dimensions: 17 x 8 x 23.5 cm
