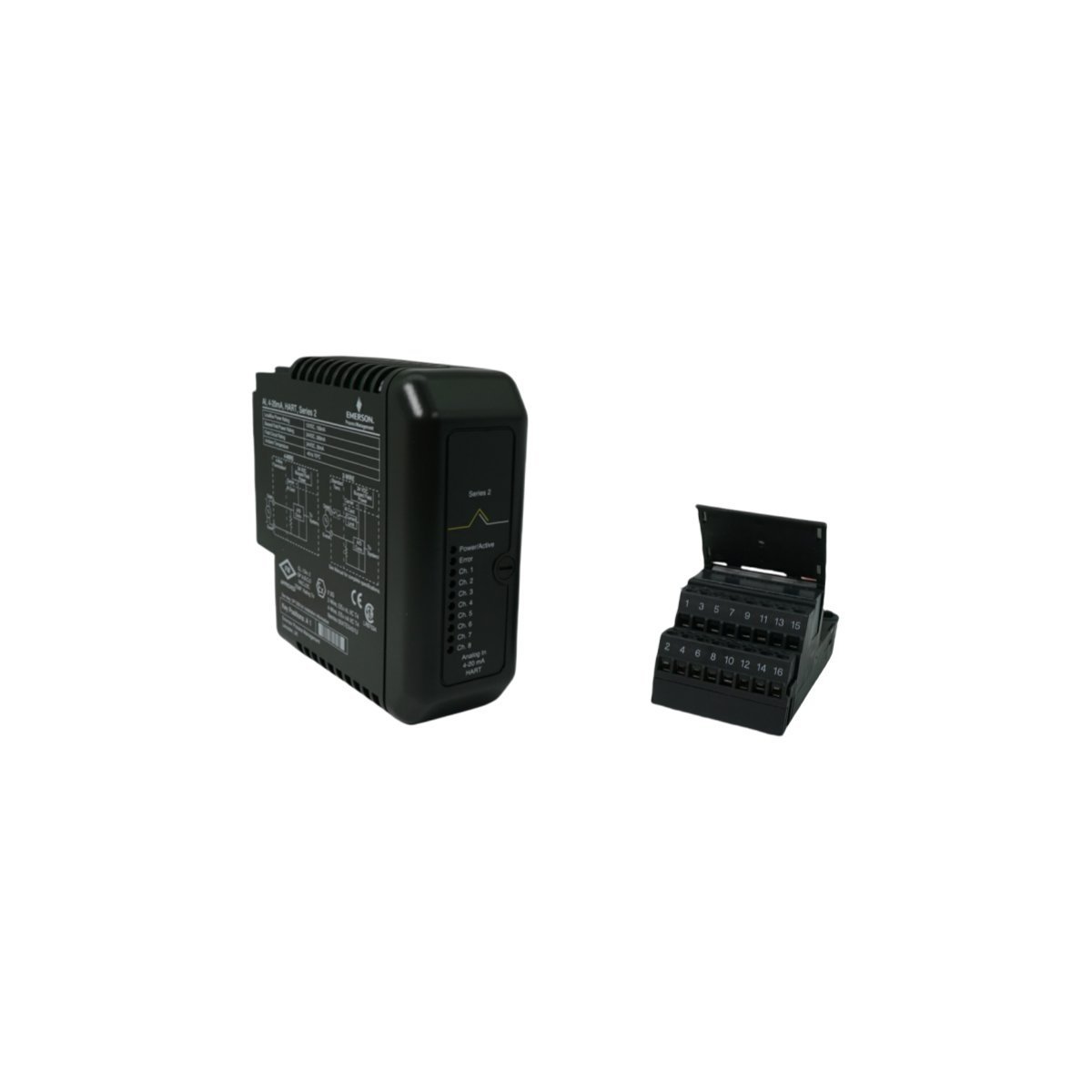

The Emerson KJ3222X1-BA1 (VE4003S3B1) is an 8-channel, 4-20 mA analog input module featuring HART communication for DeltaV S-series systems. Designed for high-precision sensor integration and smart device diagnostics, this hot-swappable module provides robust signal acquisition and predictive maintenance support for critical process automation.
The Emerson KJ3222X1-BA1 (part numbers 12P2532X122 and VE4003S3B1) functions as a high-performance analog input module within the DeltaV S-series distributed control system (DCS). This module is specifically engineered to interface with 8 channels of 4 to 20 mA field signals, providing the primary data link for sensors such as pressure transmitters, flow meters, and temperature probes. By integrating advanced HART (Highway Addressable Remote Transducer) technology, the KJ3222X1-BA1 goes beyond simple analog monitoring. It allows the system to simultaneously process digital diagnostic data and secondary process variables from “Smart” field devices. Consequently, this module is a cornerstone for modern predictive maintenance and asset management strategies in chemical, oil, and gas processing.
Beyond its core signal conversion tasks, the KJ3222X1-BA1 incorporates sophisticated digital communication capabilities via the HART protocol. In addition to the primary 4 to 20 mA process variable, the module enables the DeltaV AMS (Asset Management Solutions) software to access device calibration data and internal health alerts directly from the field. Because the module performs continuous loop monitoring, it can detect and report faults such as open wires, short circuits, or erratic sensor behavior in real-time. Moreover, the unit provides per-channel isolation and integrated surge protection to safeguard the internal system bus from field-side electrical noise. Therefore, this robust diagnostic framework significantly enhances plant safety and reduces the need for manual field inspections.
Emerson has designed the KJ3222X1-BA1 for maximum operational uptime, featuring a fully hot-swappable architecture that facilitates rapid “Plug-and-Play” replacement. This capability allows technicians to remove or insert a module while the system remains powered and the process stays online, eliminating the need for unscheduled shutdowns during maintenance. Additionally, the unit features front-panel LED indicators that provide technicians with an instantaneous visual status of the module’s health and active HART communication status. Because it utilizes the standard S-series horizontal carrier, the module integrates seamlessly with existing DeltaV hardware. As a result, the KJ3222X1-BA1 provides a scalable and reliable solution for expanding I/O capacity while maintaining a low total cost of ownership.
| Parameter | Specification |
|---|---|
| Model / Catalog No. | KJ2221X1-BA1 |
| Alternative Part Numbers | 12P3232X112 / VS6002 |
| Manufacturer | EMERSON (DeltaV Product Line) |
| Origin | USA |
| Weight | 0.32 kg |
| Dimensions | 4.1 x 12.5 x 19.0 cm |
| Module Type | SISNet Repeater Module / Network Extender |
| System Platform | DeltaV SIS Process Safety System (DCS) |
| Discontinued Date | December 31, 2018 (Legacy status) |
The Emerson DeltaV™ M-series KJ3002X1-BB1 (12P0683X092 / VE3006) is a legacy, high-precision thermocouple and mixed-signal I/O module designed for flexible process control within the DeltaV Distributed Control System (DCS). Capable of reading continuous analog variables alongside discrete status indicators, this modular card features built-in galvanic signal isolation, advanced thermocouple loop-burnout diagnostics, and high-density noise protection. Engineered for direct hot-swappable installation into M-series carriers, it delivers stable, industrial-grade data acquisition for critical temperature, flow, and pressure monitoring loops across harsh, high-interference manufacturing environments.
