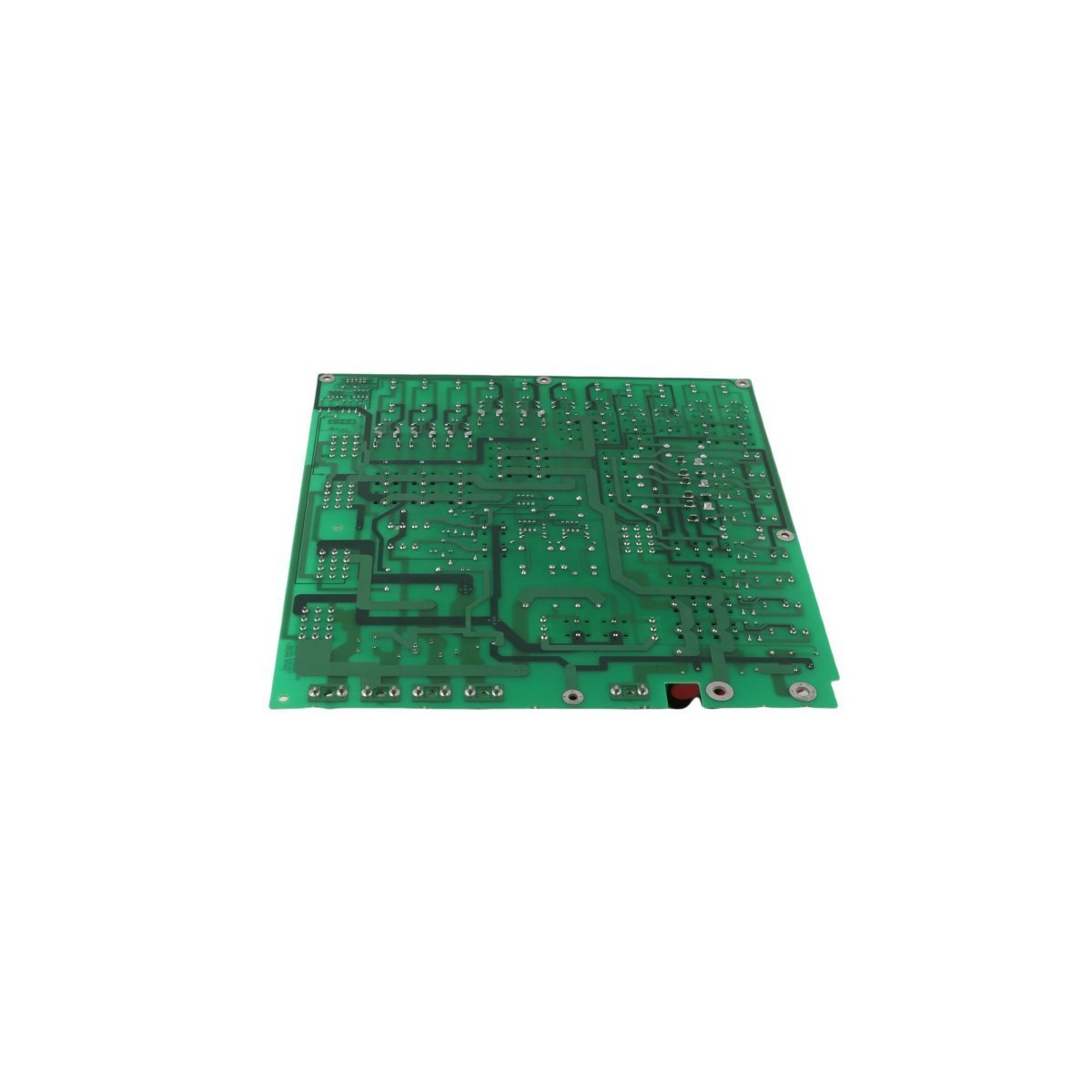

GE DS200TCPDG1BEC Mark V Turbine Control Power Distribution Board

Core Functionality in Speedtronic Turbine Systems

The GE DS200TCPDG1BEC operates as a specialized Power Distribution Board (PDB) specifically engineered for the Mark V Speedtronic Turbine Control Series. This board plays a fundamental role in managing and protecting the electrical circuits that drive automated assemblies in steam, gas, and wind turbines. By distributing regulated power across the control architecture, the DS200TCPDG1BEC ensures that critical sensors and actuators receive consistent voltage. Furthermore, because this module belongs to one of the final GE product lines to utilize Speedtronic technology, it remains a vital component for maintaining legacy industrial drive systems.

Advanced Circuit Protection and Diagnostic Interface

Regarding its physical layout, the DS200TCPDG1BEC incorporates a robust array of 36 fuses, each housed within a vertical black plastic canister for maximum protection. This design allows technicians to perform rapid maintenance; they simply twist the canister tops to access and replace internal fuses without specialized tools. Moreover, the board features 36 dedicated “OK” LEDs located adjacent to each fuse. These indicators provide immediate visual diagnostics, where a lit green LED confirms circuit integrity and an unlit state signals a blown fuse or a power failure. Consequently, this real-time feedback loop significantly reduces troubleshooting time during system outages.

Mechanical Configuration and System Connectivity

To facilitate comprehensive manual control, the DS200TCPDG1BEC includes eight high-quality toggle switches that allow operators to isolate specific power branches. Additionally, the board utilizes a 10-pin connector and four dedicated signal wire terminals to interface with the wider Mark V control network. This specific “BEC” version represents a refined revision of the original “G1” hardware, incorporating enhanced performance specifications over earlier iterations. It is important to note that while the Mark V series is a legacy line, the board’s standardized 29.2 x 27 x 5 cm footprint ensures a precise fit within existing turbine control cabinets.

Technical Specifications

• Brand: General Electric (GE)
• Model Number: DS200TCPDG1BEC
• Product Series: Mark V Speedtronic
• Component Type: Power Distribution Board (PCB)
• Fuse Capacity: 36 individual canister-style fuses
• Diagnostic Indicators: 36 “OK” status LEDs
• Control Interface: 8 toggle switches
• Connection Ports: 10-pin connector and 4 signal terminals
• Weight: 0.96 kg
• Dimensions: 29.2 cm x 27 cm x 5 cm
• Country of Origin: USA
• System Compatibility: DCS / Turbine Control

Reliability and Lifecycle Management

In demanding industrial environments, the DS200TCPDG1BEC offers essential overcurrent protection that prevents damage to expensive turbine controllers. Since the module employs a transparent diagnostic system, it empowers maintenance teams to maintain high system availability. Furthermore, the active voice of the status LEDs ensures that power distribution faults never go unnoticed. Although GE has officially discontinued the Mark V series, authentic DS200TCPDG1BEC boards continue to serve as the backbone for reliable turbine operations globally, providing the necessary durability for long-term industrial service.
