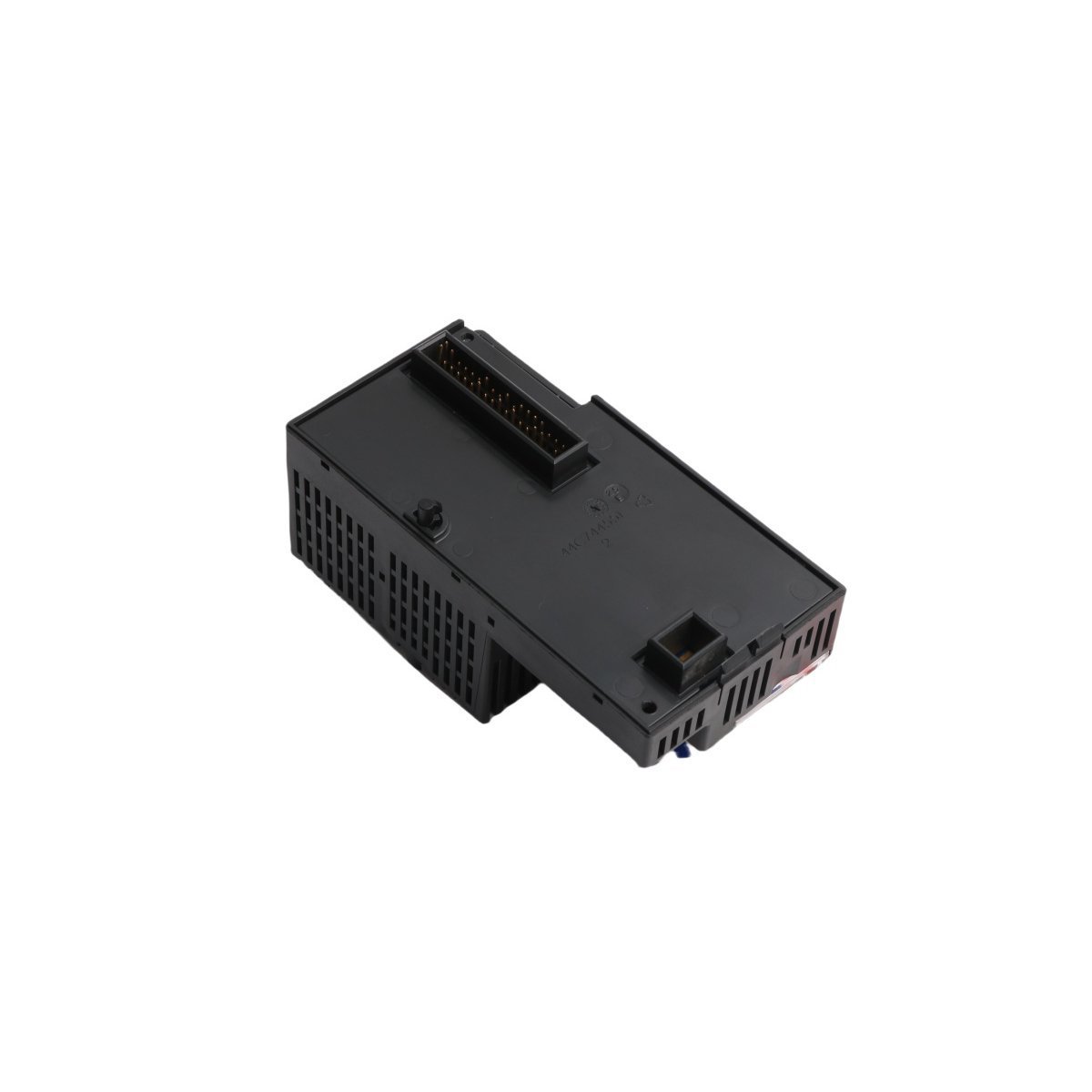

GE Fanuc IC200BEM003 VersaMax PROFIBUS-DP Network Slave Module

The GE Fanuc IC200BEM003 is a VersaMax PROFIBUS-DP network slave module. It provides a high-density, modular interface for connecting VersaMax I/O to a PROFIBUS network, supporting data rates up to 12 Mbps and hot-swappable I/O expansion.

Request a Quote

Technical Overview

The GE Fanuc IC200BEM003 functions as a high-performance communication interface for the VersaMax I/O system, operating specifically as a PROFIBUS-DP Slave. This module enables the integration of VersaMax high-density I/O stations into any PROFIBUS-DP network managed by a master controller. By acting as a decentralized gateway, the IC200BEM003 allows for the remote placement of input and output modules, significantly reducing field wiring costs while maintaining high-speed data synchronization with the primary PLC.

Functional Performance

This network interface module manages all data exchange between the local VersaMax I/O modules and the PROFIBUS master. It supports automatic baud rate detection, adjusting itself to the network speed without manual configuration. The IC200BEM003 can support up to 64 modules per station (depending on power consumption and data limits), providing a highly scalable solution for complex automation tasks. It continuously monitors the status of the local I/O modules and reports hardware diagnostics or loss of communication events back to the master system in real-time.

Key Technical Characteristics

  • Manufacturer: GE Fanuc / Emerson Automation
  • Product Series: VersaMax I/O
  • Model Number: IC200BEM003
  • Protocol: PROFIBUS-DP (Slave)
  • Data Rate: Supports up to 12 Mbps (Auto-sensing)
  • I/O Capacity: Up to 375 bytes of input data and 375 bytes of output data
  • Connector Type: 9-pin D-sub female
  • Address Range: 1 to 125 (Configured via rotary switches or software)
  • Power Consumption: 400mA @ 5V DC (from the backplane)
  • Status Indicators: LED diagnostics for Power, Network Status, and Module OK

Primary Applications

  • Distributed I/O Systems: Connecting remote clusters of sensors and actuators to a centralized Siemens, GE, or third-party PROFIBUS master.
  • Factory Automation: Integrating disparate machine cells into a plant-wide monitoring and control network.
  • Process Control: Utilizing the high-density modularity of VersaMax in water treatment or food processing plants where remote monitoring is required.
  • Material Handling: Managing complex conveyor and sorting systems where I/O stations are distributed over large physical distances.

Operational Advantages

  • Modular Versatility: Allows users to mix and match digital, analog, and specialty modules within a single station to meet specific application needs.
  • High-Density Integration: Supports a large volume of I/O points in a compact footprint, optimizing space within control cabinets.
  • Ease of Configuration: Features straightforward addressing via hardware switches, facilitating rapid deployment and module replacement.
  • Robust Network Diagnostics: Provides clear visual and digital feedback regarding network health, which simplifies troubleshooting and reduces Mean Time to Repair (MTTR).
