  4. GE Fanuc IC220STR001 VersaPoint Reversing Motor Starter
Sale!
SKU: IC220STR001

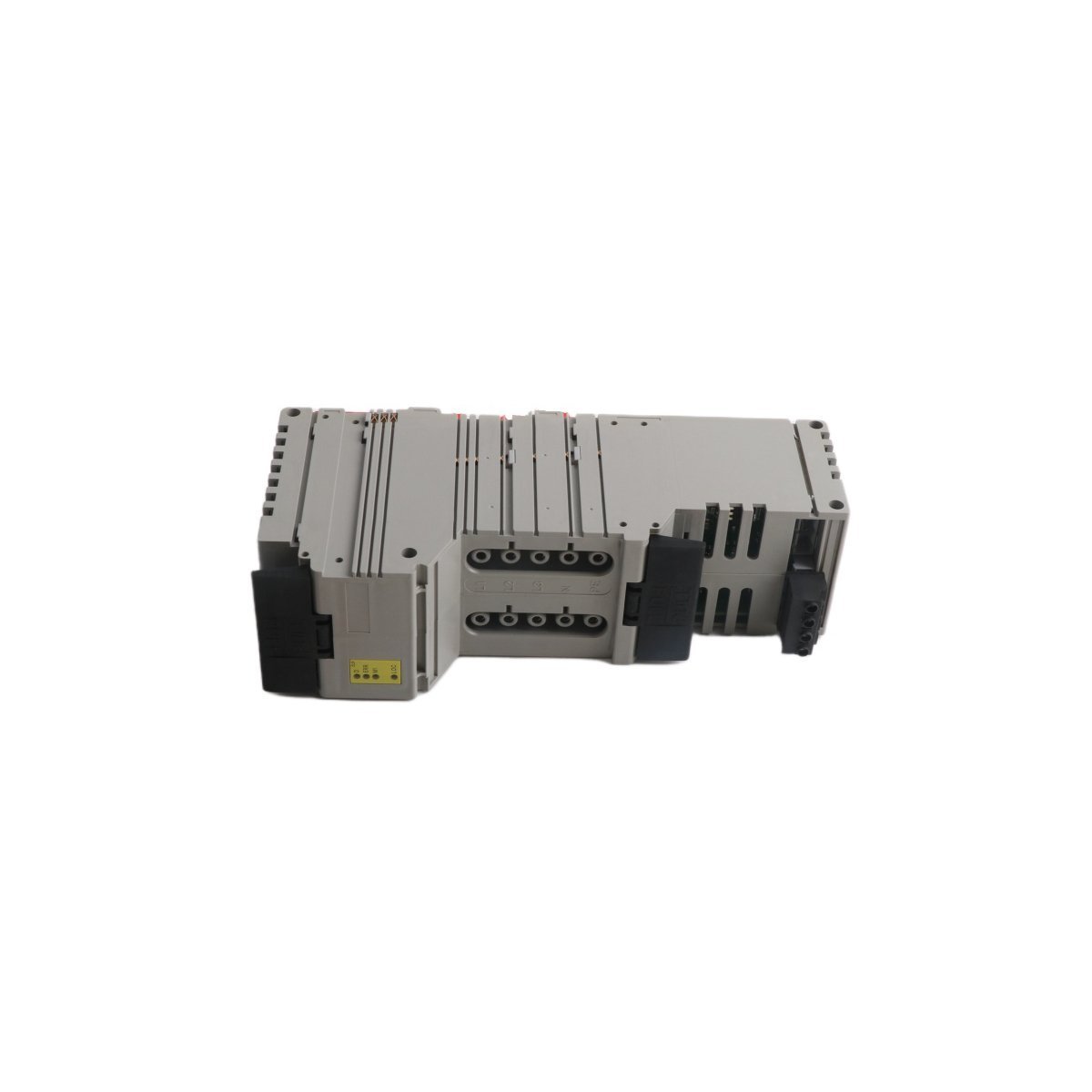

GE Fanuc IC220STR001 VersaPoint Reversing Motor Starter

The GE Fanuc IC220STR001 is a modular reversing motor starter for the VersaPoint I/O system. It provides integrated directional control, electronic overload protection, and high-speed diagnostic feedback for three-phase motors up to 0.5 kW. This compact, SIL-capable module ensures reliable motor management and simplified wiring in advanced automation environments.

Request a Quote

Technical Functionality

The GE Fanuc IC220STR001 functions as a compact reversing motor starter within the VersaPoint I/O system. This module provides a fully integrated solution for controlling the direction of three-phase asynchronous motors. By utilizing internal interlocking logic and electronic switching, the IC220STR001 executes high-speed reversing commands without the need for external contactor assemblies. Consequently, it reduces the overall cabinet footprint while providing the necessary electrical isolation between the low-voltage control backplane and the high-voltage motor power circuit.

Operational Performance

This motor starter delivers enhanced operational safety by incorporating integrated electronic overcurrent protection. Because the module monitors the motor’s thermal state in real-time, it can trigger an immediate shutdown if it detects an overload or phase failure. Furthermore, the IC220STR001 facilitates rapid system integration through its plug-and-play VersaPoint architecture, which allows the module to snap directly onto a standard terminal base. The module also features diagnostic LEDs on the front panel, providing maintenance teams with instant feedback on power status, motor direction, and fault conditions.

Key Technical Characteristics

  • Integrated Reversing Logic: Manages forward and reverse motor operations through a single modular interface.
  • Electronic Overload Protection: Features adjustable trip settings to protect motors from thermal damage.
  • Compact Form Factor: Utilizes the space-saving VersaPoint design to maximize I/O density.
  • Safe Isolation: Ensures high-voltage separation between the field motor power and the control electronics.
  • Diagnostic Feedback: Provides status data via the VersaPoint local bus for remote monitoring and troubleshooting.
  • Fast Switching: Reduces mechanical wear by utilizing optimized electronic switching sequences.

Primary Industrial Applications

  • Conveyor Systems: Managing the bidirectional movement of belts in packaging and sorting facilities.
  • Actuator Control: Driving reversible electric actuators for dampers and large industrial valves.
  • Material Handling: Providing precise directional control for automated storage and retrieval systems (ASRS).
  • Small Machinery: Controlling specialized motor drives in CNC auxiliary systems and textile machinery.

Technical Specifications

  • Manufacturer: GE Fanuc
  • Model Number: IC220STR001
  • System Series: VersaPoint
  • Motor Type: 3-Phase Asynchronous
  • Control Voltage: 24 V DC (via local bus)
  • Motor Power: Up to 0.5 kW (depending on voltage and load)
  • Mounting: VersaPoint Terminal Base
  • Weight: 0.18 kg
