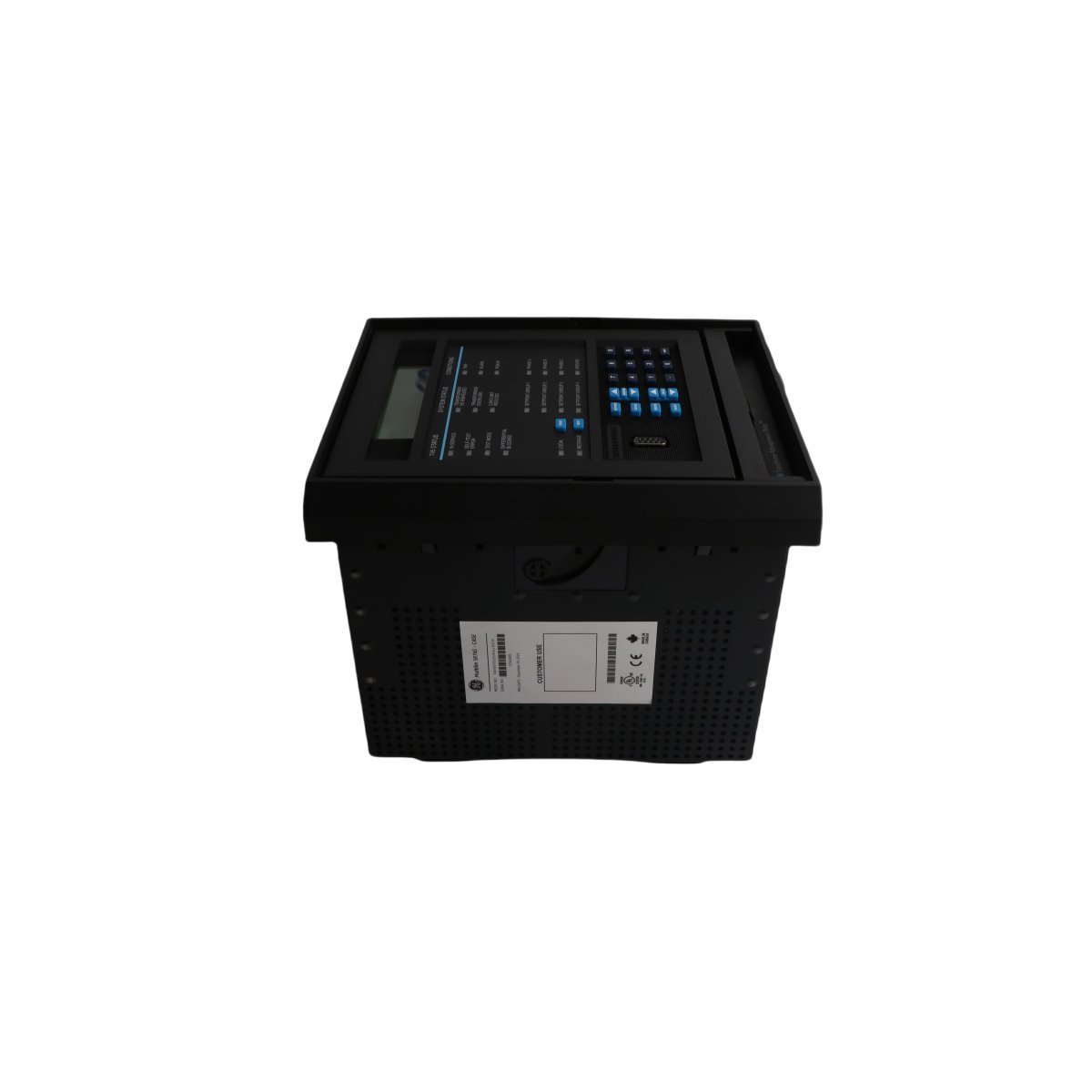

The GE Multilin 745-W3-P5-G5-HI-A-L-R-E-H is a comprehensive 3-winding transformer management relay. It features 5A current inputs, a high-voltage power supply, and integrated analog I/O for advanced monitoring. This unit provides high-speed differential protection and harmonic analysis to safeguard critical power infrastructure in demanding industrial environments.
The GE Multilin 745-W3-P5-G5-HI-A-L-R-E-H functions as a high-speed, microprocessor-based protection system designed for two-winding and three-winding power transformers. This sophisticated relay executes complex algorithms to provide differential protection, detecting internal faults while simultaneously compensating for tap changer positions and transformer phase shifts. By integrating these features into a single SR Series ruggedized chassis, the relay protects critical utility assets against electrical stress and environmental contaminants like industrial dust.
To facilitate seamless site management, the unit utilizes a 40-character backlit LCD and a tactile keypad for direct local interaction. Engineers monitor system health through a series of dedicated status LEDs that provide instant alerts regarding relay logic or power conditions. Furthermore, the device incorporates multiple communication interfaces, including RS232, RS422, and RS485 ports. These ports allow the relay to connect directly to PCs running EnerVista 745 software, which streamlines the configuration of setpoints and the analysis of captured waveforms.
Beyond basic protection, the 745-W3-P5-G5-HI-A-L-R-E-H drives proactive maintenance strategies through its advanced monitoring tools. It tracks harmonics, winding temperatures, and voltage trends to identify potential issues before they cause catastrophic failure. The “HI” power supply variant ensures the relay remains operational across high-voltage AC/DC ranges, maintaining protection during significant grid instability. Consequently, this relay empowers facility managers to extend the lifespan of their transformers through precise data trending and rigorous fault isolation.
