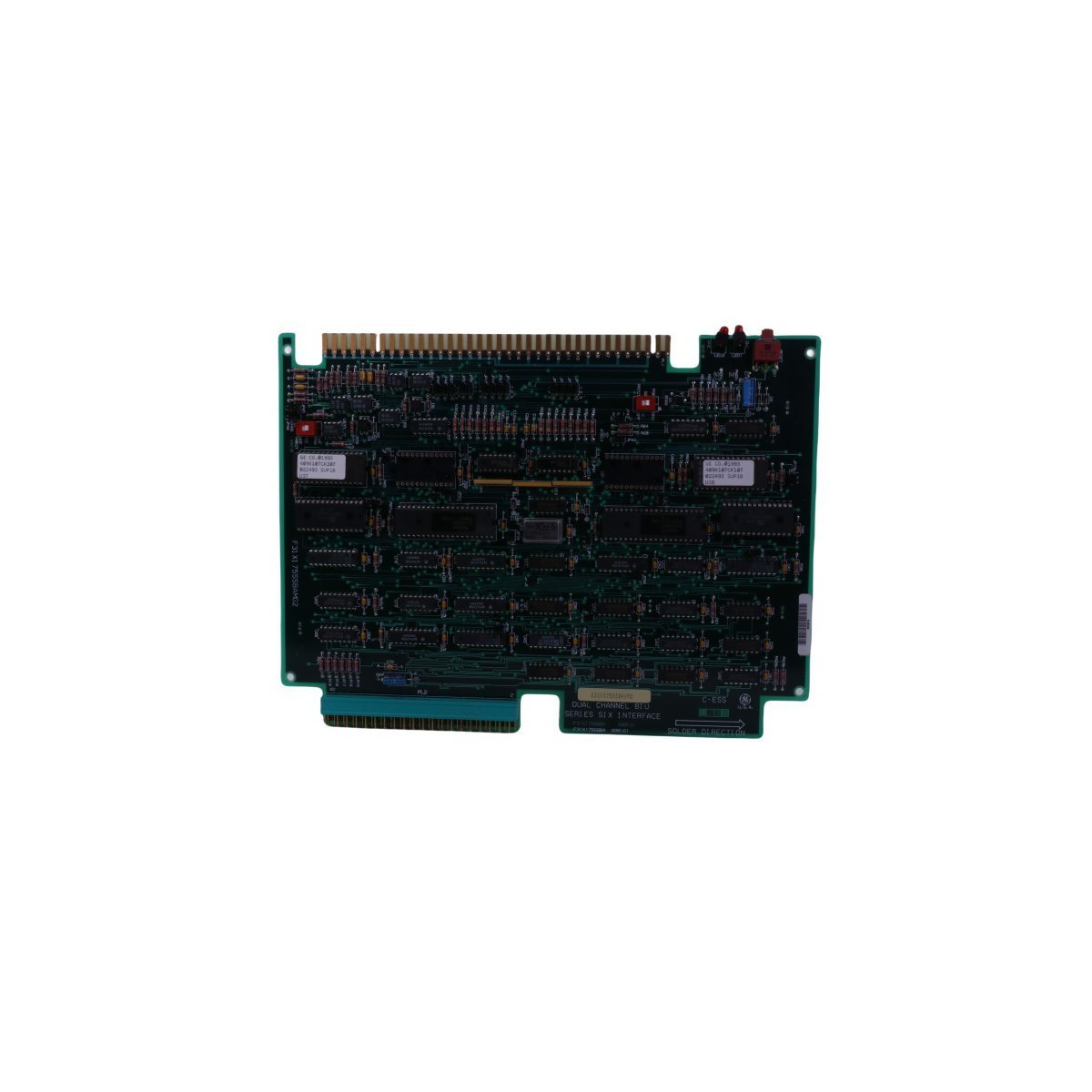

General Electric 531X175SSBAYM2 Interface PC Board DC300

Technical Overview

The General Electric 531X175SSBAYM2 operates as a critical interface printed circuit board, which engineers specifically designed for the DC300 series of digital industrial drives. This board serves as the central communication and signal-routing hub, effectively bridging the gap between the primary drive control logic and the external power circuitry. Because this module manages the constant flow of timing signals and feedback data, the 531X175SSBAYM2 remains essential for maintaining the high-torque precision and speed regulation that heavy-duty DC motor applications demand.

Circuit Logic and System Integration

The interface board conditioning tasks ensure that the drive’s microprocessor receives clean, accurate data from the field. To facilitate this, the 531X175SSBAYM2 utilizes a sophisticated array of analog-to-digital converters, optoisolators, and signal buffers. Furthermore, it provides dedicated pathways for pulse width modulation (PWM) signals, which directly control the thyristor or SCR firing sequences within the DC300 drive. Consequently, these components work in unison to stabilize motor performance.

To further ensure system reliability in high-interference industrial environments, the board employs multi-layer shielding and robust grounding points to mitigate electromagnetic interference (EMI). Moreover, since the 531X175SSBAYM2 functions as an “SSBA” variant within the 531X series, it optimizes specific feedback configurations that frequently involve tachometers or encoders. In addition to these capabilities, the unit incorporates YM2 revision hardware to significantly improve thermal stability during peak operation. As a result, the board allows for rapid installation into the drive’s internal card cage, while its modular pin connectors simplify hardware swaps during critical maintenance intervals.

Key Technical Characteristics

• Brand: General Electric (GE)
• Model Number: 531X175SSBAYM2
• Product Type: Interface PC Board
• Drive Compatibility: GE DC300 Digital Drive Series
• Configuration Code: SSBA
• Revision Level: YM2
• Signal Support: Analog feedback, digital timing, and SCR firing control
• Isolation: Optical and galvanic isolation for circuit protection
• Dimensions: Standard GE industrial drive board format
• Component Grade: High-temperature industrial-rated resistors and ICs

Primary Applications

• Coordinating signal exchange in large-scale DC motor drives for metal rolling mills.
• Managing feedback loops for high-precision paper and plastic processing lines.
• Modernizing legacy DC300 drive systems by providing a reliable control interface.
• Facilitating motor speed regulation in industrial mining and material handling equipment.
• Monitoring diagnostic feedback to support predictive maintenance in heavy-duty drive systems.
