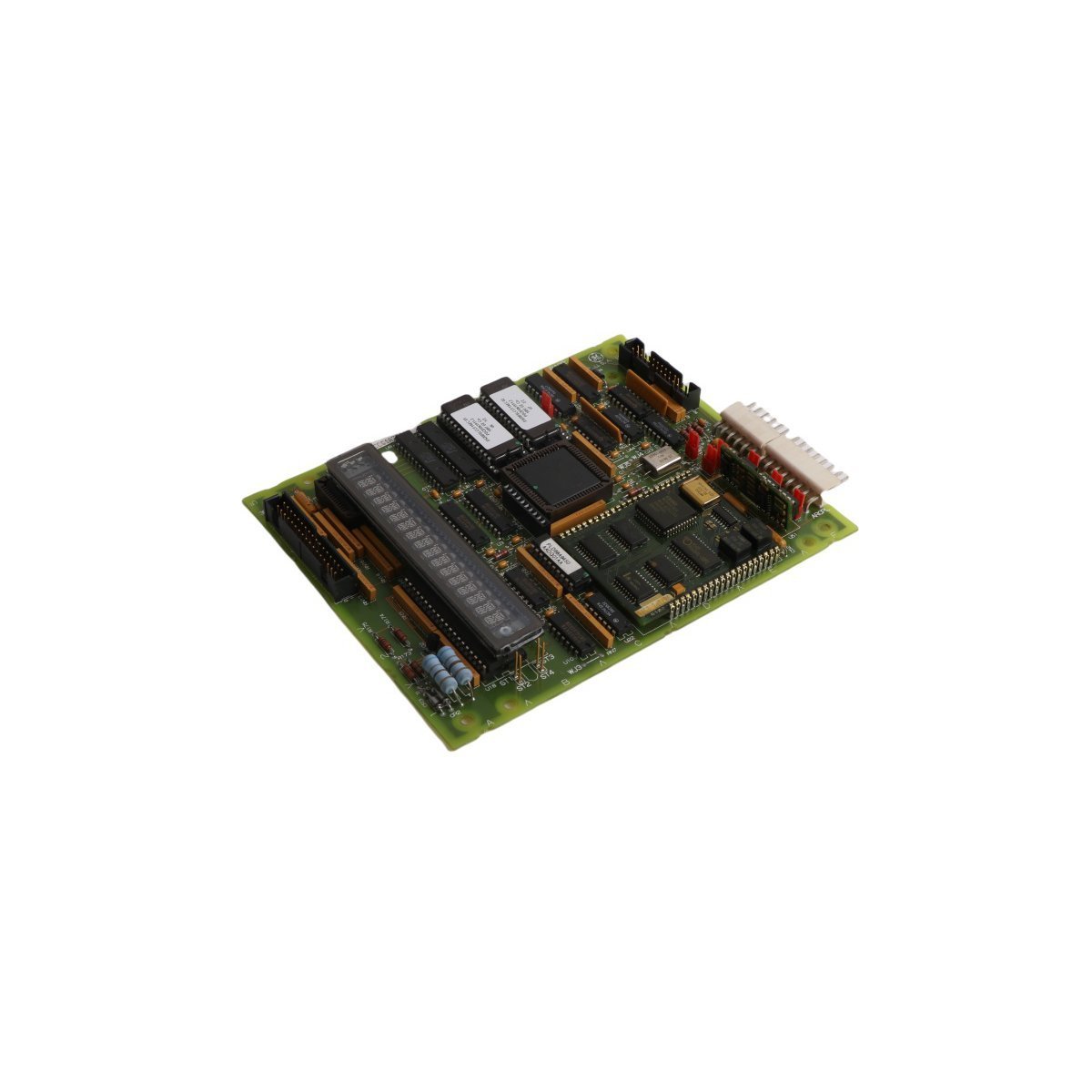

General electric DS215SLCCG1AZZ01A LAN Communications Card

The GE DS215SLCCG1AZZ01A is a LAN communications interface for Mark V Speedtronic systems. It features a dedicated LCP, dual EPROM slots, and supports ARCNET and DLAN networks. This 0.26kg card ensures reliable data exchange between turbine controllers and drive systems in demanding industrial power environments.

Request a Quote

The GE DS215SLCCG1AZZ01A serves as a critical communication gateway for the Mark V Speedtronic turbine control series. This card manages complex data traffic between the main turbine controller and peripheral drive systems. It utilizes proven Speedtronic technology to regulate gas, steam, and wind turbine operations. By facilitating high-speed networking, the module ensures precise synchronization across the entire control architecture. This hardware remains essential for maintaining legacy turbine systems in modern power generation environments.

Core Technical Specifications

ParameterSpecification Details
ManufacturerGeneral Electric (GE)
Model NumberDS215SLCCG1AZZ01A
Product RangeMark V Speedtronic
Processor TypeLAN Control Processor (LCP)
Supported NetworksDLAN and ARCNET
Memory ConfigurationDual Replaceable EPROM Slots
Physical Weight0.26 kg
Card Dimensions18.8 x 14.2 x 2 cm

Network Processing and Memory Architecture

The board features a dedicated LAN Control Processor (LCP) to offload communication tasks from the main drive processor. This LCP manages data packets across both DLAN and ARCNET industrial networks. Furthermore, the architecture includes dual EPROM slots for flexible firmware management and field updates. Integrated RAM facilitates the rapid exchange of information between the LCP and the drive control logic. These components work together to prevent communication bottlenecks during peak turbine load cycles.

Interface Connectivity and Configuration

Multiple connection points allow the DS215SLCCG1AZZ01A to interface with various system components. The board includes dedicated terminals for power input and connection to the main terminal board. Additionally, I/O ports support direct signal paths for ARCNET and DLAN communication lines. A specialized KPPL programming slot grants technicians access to internal diagnostics and system parameters. This interface allows for precise hardware customization to meet specific site requirements.

Operational Reliability and Applications

  • Real-time monitoring of gas and steam turbine drives
  • Synchronizing wind turbine pitch and speed controls
  • Executing diagnostic routines within the Mark V control rack
  • Managing distributed I/O signals across legacy ARCNET networks
