HIMA F6215 8-Channel Safe Analog Input Module

Technical Overview

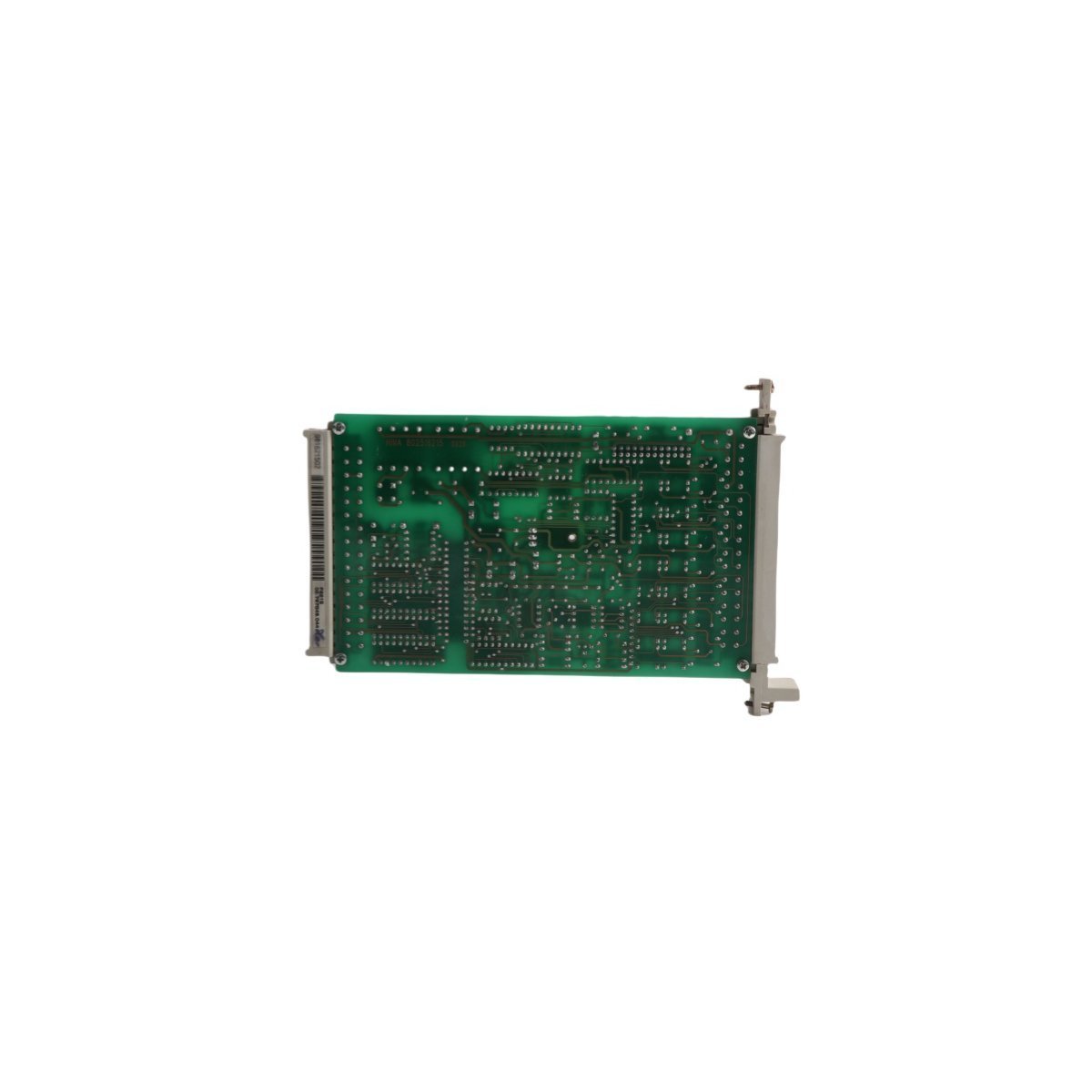

The HIMA F6215 serves as a high-precision, safety-certified analog input interface designed for integration with H41q and H51q safety systems. This module provides eight independent channels specifically engineered to monitor 0/4-20 mA signals from essential field sensors. As a fundamental component of a Safety Instrumented System (SIS), the F6215 ensures that process variables—such as pressure, temperature, and flow—are digitized with extreme accuracy and reliability to support critical fail-safe logic.

Functional Performance

This module utilizes sophisticated signal-processing hardware to maintain high measurement stability even in environments with significant electromagnetic interference. The F6215 incorporates comprehensive self-diagnostic routines that continuously verify the integrity of the internal analog-to-digital converters and the input signal paths. In the event of a channel discrepancy or hardware failure, the module immediately transitions to a fail-safe state, ensuring that the safety controller does not act upon corrupted or inaccurate data. Furthermore, the unit features galvanic isolation for each channel, protecting the system backplane from field-side electrical surges.

Key Technical Characteristics

• Brand: HIMA
• Model Number: F6215
• Module Type: 8-Channel Analog Input (Safety Related)
• Input Signal Range: 0 to 20 mA or 4 to 20 mA DC
• Resolution: 12-bit binary conversion
• Safety Integrity Level: Certified for use in SIL 3 applications (IEC 61508)
• Input Resistance: Typically 250 Ohms (Standard for current loops)
• Isolation: Comprehensive galvanic separation between inputs and system electronics
• Update Frequency: High-speed scanning suitable for dynamic process monitoring
• Status Indicators: Integrated front-panel LEDs for “Run,” “Fault,” and channel status

Primary Applications

• Refinery Pressure Monitoring: Capturing real-time data from pressure transmitters to prevent vessel overpressurization.
• Chemical Reactor Temperature Control: Providing reliable temperature readings to manage exothermic reactions safely.
• Storage Tank Level Monitoring: Ensuring high-accuracy level detection to prevent hazardous overflows in petrochemical facilities.
• Burner Management Systems (BMS): Monitoring air and fuel flow rates to maintain safe combustion ratios in industrial furnaces.

Operational Advantages

• Maximum Risk Reduction: Meets SIL 3 requirements, providing a high level of safety for personnel and environmental protection.
• Proactive Maintenance: Integrated diagnostics identify sensor drift and cable breaks, allowing for repairs before a system trip occurs.
• Robust Signal Integrity: Advanced filtering and isolation prevent electrical noise from distorting critical process measurements.
• Industrial Durability: Engineered for long-term operation in demanding industrial control rooms with high-density rack configurations.
