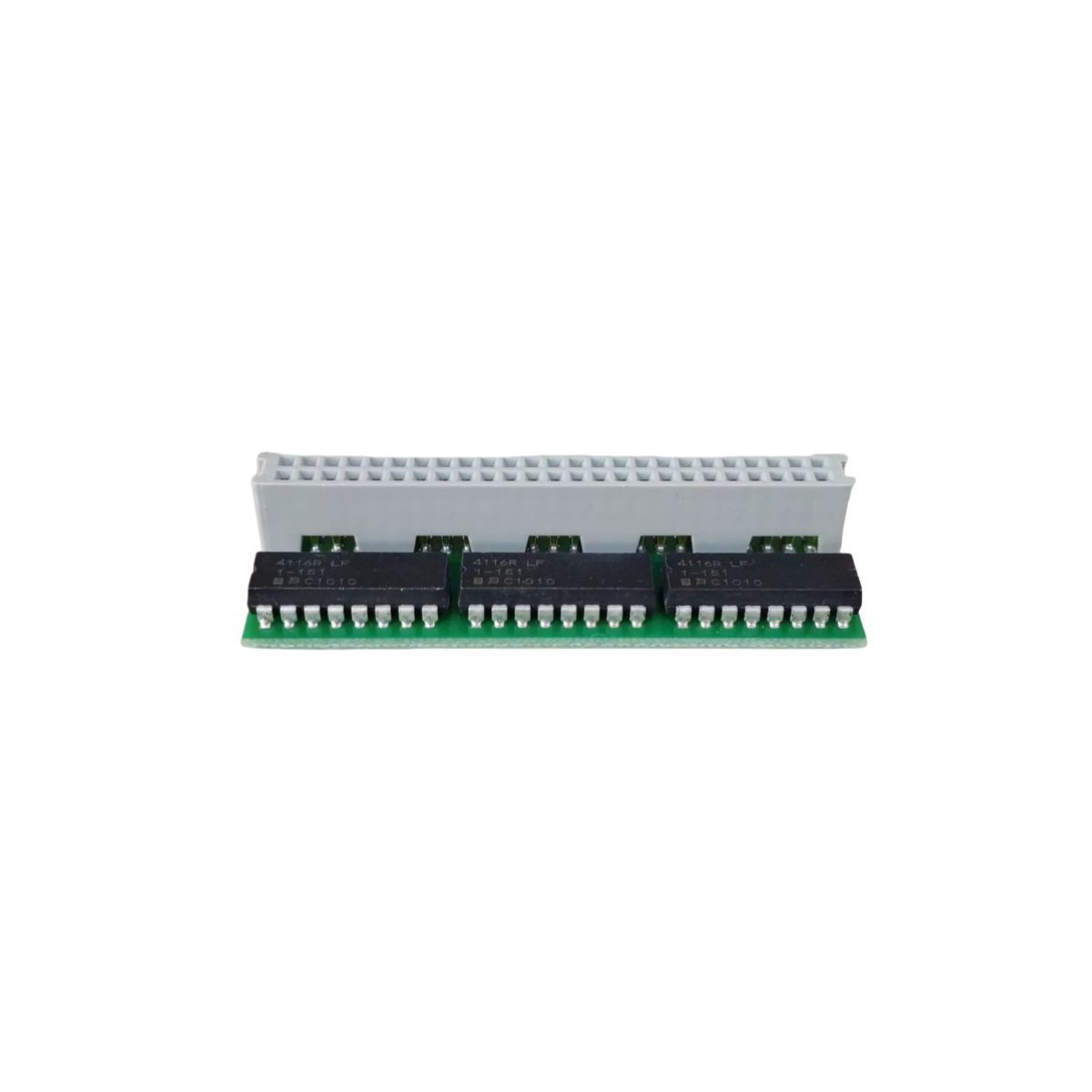

HIMA F7546 Bus Coupling Module for H41q/H51q Safety Systems

The HIMA F7546 is a SIL 3-certified I/O Bus Coupling Module designed for H41q and H51q safety systems. It provides essential communication bridging and bus termination for high-reliability industrial automation. This German-engineered module ensures rapid, fault-tolerant data transmission, making it ideal for critical emergency shutdown and process control applications in the energy and chemical sectors.

Product Overview

The HIMA F7546 functions as a high-integrity I/O Bus Coupling Module engineered specifically for the H41q and H51q PES (Programmable Electronic Systems). This module facilitates the seamless communication bridge between the central controller and the distributed I/O racks. By maintaining signal integrity across the backplane, the F7546 ensures that safety-critical data reaches the processor without deterministic delays. Consequently, the module supports the stringent requirements of SIL 3 applications, providing the foundation for reliable fault detection and emergency shutdown protocols in hazardous industrial environments.

Key Technical Characteristics

Architecture: Dual-channel, fault-tolerant design compliant with TÜV safety standards.
System Compatibility: Fully integrated with HIMA H41q and H51q safety platforms.
Response Timing: Supports high-speed logic processing with emergency response times typically under 100ms.
Electromagnetic Compatibility: Meets the 89/336/EWG directive for robust operation in high-interference areas.
Scaling Flexibility: Enables both single and redundant bus configurations to enhance system availability.
Physical Form Factor: Compact 20mm width design optimized for high-density cabinet installations.
Diagnostic Capabilities: Features built-in self-monitoring to identify bus faults or communication interruptions immediately.

Industrial Applications

Engineers primarily deploy the HIMA F7546 in sectors where process interruptions pose significant risks to personnel and infrastructure. In the petrochemical industry, the module manages safety loops for burner management systems and emergency shutdown (ESD) valves. Furthermore, power generation facilities utilize this coupling module to maintain oversight of critical turbine protection systems. Because the F7546 provides a stable interface for decentralized I/O, it remains a vital component for large-scale distributed control systems (DCS) requiring localized safety logic execution.
