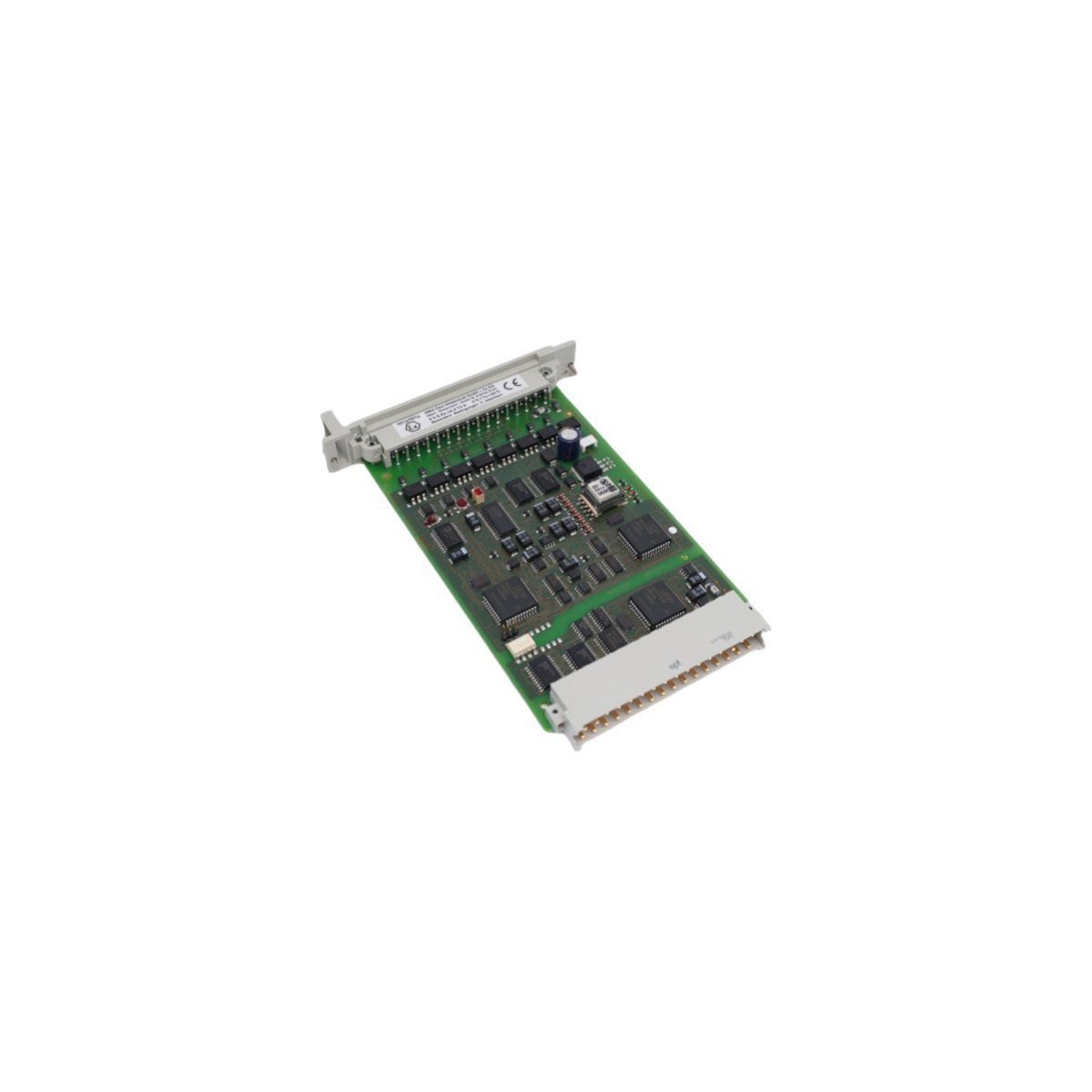

HIMA F6217 8-Channel Safe Analog Input Module

Technical Overview

The HIMA F6217 serves as a high-reliability analog input interface designed for the H41q and H51q safety systems. This module features eight independent channels engineered to process 0/4-20 mA signals from field transmitters with extreme precision. As a safety-related component, the F6217 incorporates internal diagnostic routines and redundant hardware paths to ensure that process data remains accurate and trustworthy. It plays a vital role in transforming physical measurements into digital data that the safety controller uses to make critical “go/no-go” decisions.

Functional Performance

This module utilizes a sophisticated 12-bit analog-to-digital converter (ADC) to provide high-resolution monitoring of process variables. Each of the eight channels includes integrated filter circuits to eliminate high-frequency noise and electromagnetic interference. The F6217 continuously performs self-tests, checking for internal hardware failures, cross-talk between channels, and out-of-range sensor signals. If the module detects an inconsistency or a hardware fault, it automatically enters a fail-safe state and reports the specific error code to the central processor, preventing the use of corrupted data in safety logic.

Key Technical Characteristics

• Brand: HIMA
• Model Number: F6217
• Module Type: 8-Channel Analog Input (Safety Related)
• Signal Range: 0 to 20 mA or 4 to 20 mA DC
• Resolution: 12-bit (providing 4000 units of quantization)
• Input Resistance: Typically 250 Ohms
• Safety Rating: Certified for use in SIL 3 environments (IEC 61508)
• Sampling Rate: High-speed scanning for dynamic process loops
• Galvanic Isolation: Comprehensive isolation between inputs and system electronics
• Status Display: Front-panel LEDs for system status and individual channel faults

Primary Applications

• Pressure Monitoring: Tracking high-pressure lines in chemical reactors to trigger emergency relief systems.
• Level Sensing: Monitoring tank levels in refineries to prevent overfill conditions and environmental hazards.
• Temperature Control: Capturing critical temperature data for Burner Management Systems (BMS) to ensure safe combustion.
• Flow Analysis: Measuring gas or liquid flow rates in Safety Instrumented Systems (SIS) to detect pipeline leaks.

Operational Advantages

• SIL 3 Certified Reliability: Provides the highest level of risk reduction for critical industrial processes.
• Intelligent Diagnostics: Simplifies troubleshooting by identifying open circuits, short circuits, and transmitter failures automatically.
• Rugged Construction: Built to withstand the harsh electrical and thermal environments typical of heavy industrial control rooms.
• Seamless System Integration: Plugs directly into standard HIMA subracks, allowing for rapid expansion of safety I/O capacity.
