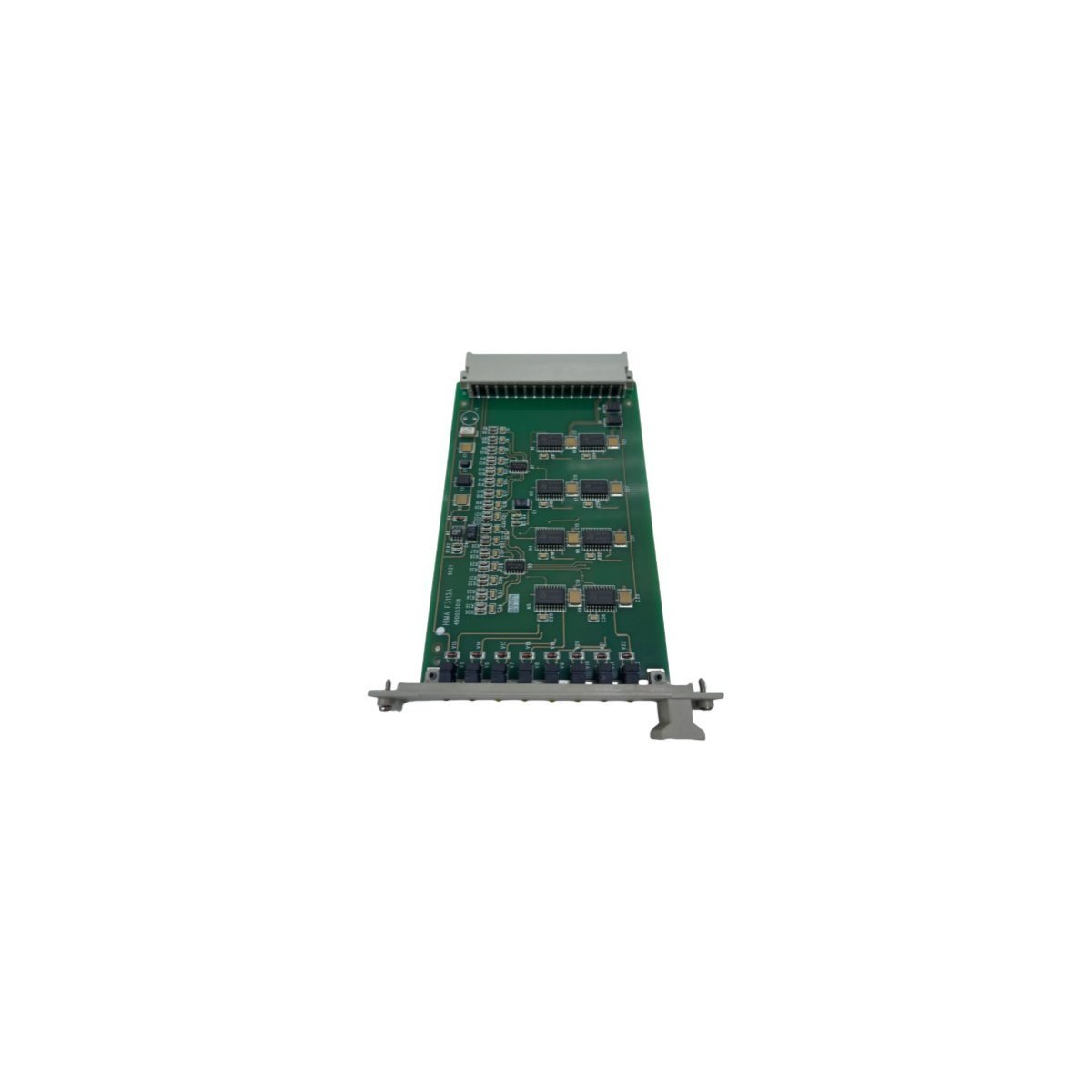

HIMA F3113A Output Module Amplifier for H41q/H51q Systems

Product Overview

The HIMA F3113A serves as a high-reliability output amplifier designed specifically for the H41q and H51q safety-related automation systems. This German-engineered module essentially acts as a critical signal conditioner, amplifying low-level controller signals to drive more demanding industrial loads. Because HIMA specializes in safety-critical DCS (Distributed Control Systems), this module integrates seamlessly into environments where downtime is not an option. Consequently, the F3113A provides the necessary physical interface to actuate field devices while maintaining the strict safety integrity required in oil and gas, chemical, and power generation sectors.

Technical Functionality

Regarding its electrical performance, the F3113A utilizes a stabilized 24V DC power supply to deliver a consistent 50mA output current. In order to manage heavy-duty field equipment, the module incorporates high-quality relays capable of switching loads up to 10A at 250V AC. Meanwhile, the internal circuitry maintains an impressive isolation resistance of 10MΩ, which effectively protects the core logic from electrical surges or field-side interference.

Furthermore, the module is engineered for extreme environmental resilience. It operates efficiently within a wide temperature range of -25°C to +85°C, ensuring that performance remains stable even in non-climate-controlled cabinets. Despite its powerful switching capabilities, the unit remains incredibly compact and lightweight, weighing only 0.16kg. This design allows engineers to maximize rack density without exceeding thermal or weight constraints.

Key Specifications

• Brand: HIMA
• Series: H41q / H51q
• Module Type: Analog/Discrete Output Amplifier
• Supply Voltage: 24V DC
• Output Current: 50mA
• Relay Rating: 10A at 250V AC
• Isolation Resistance: 10MΩ
• Load Impedance: 100 Ohms (Minimum)
• Operating Temperature: -25°C to +85°C
• Dimensions: 19.8 x 14.2 x 2.5 cm (Standard format)
• Weight: 0.16 kg

Installation and Reliability

In terms of system maintenance, the F3113A features an intuitive hardware interface that complies with international industrial standards. Because it is a component of the H41q/H51q safety family, the module undergoes rigorous testing to prevent signal degradation across low-impedance loads. Therefore, technicians can rely on clear and accurate signal transmission to valves, motors, or starters. Additionally, while the module is built for durability, it is recommended to ensure proper ventilation in high-density rack configurations to leverage its full temperature rating.
