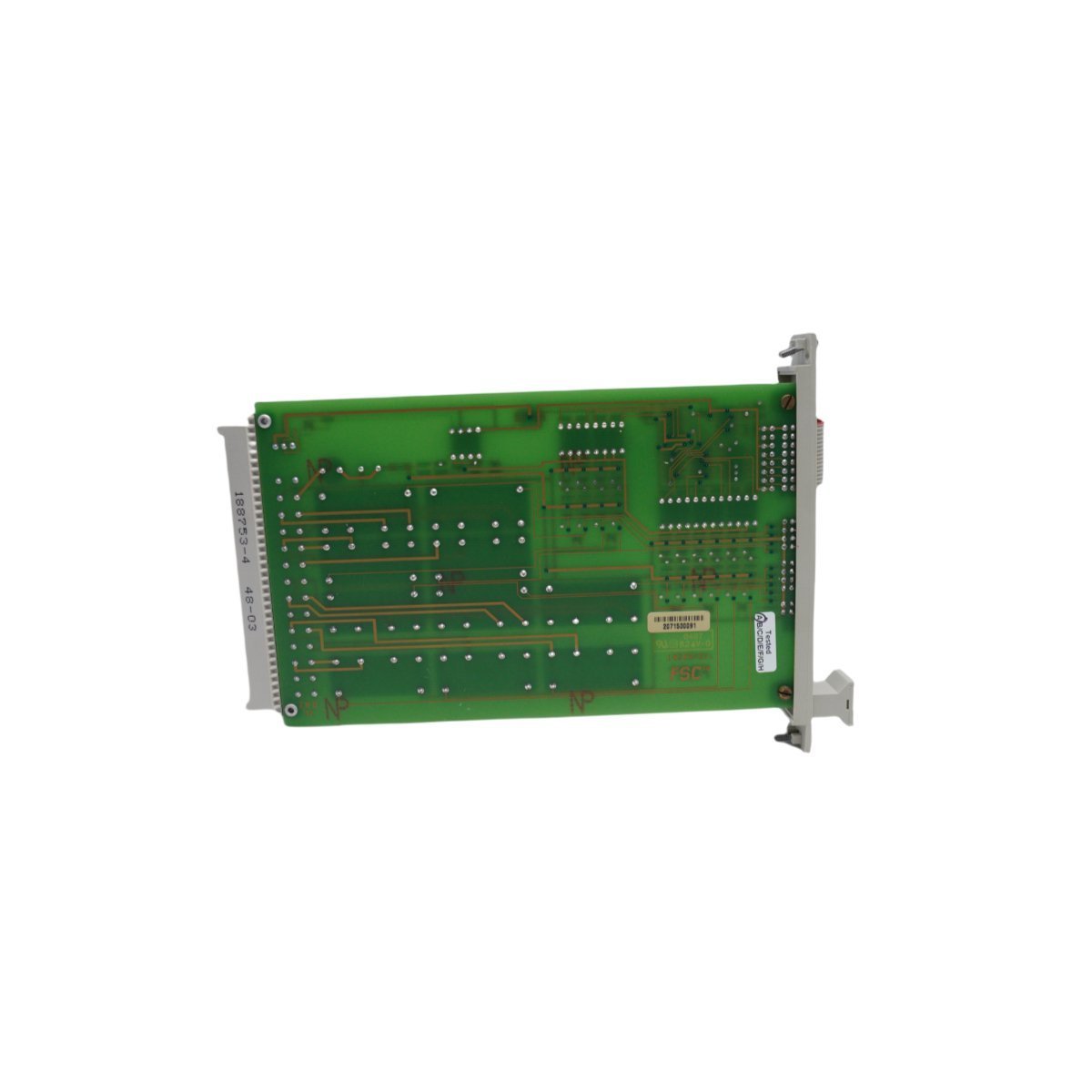

Honeywell 10208/2/1 Relay Output Module

The Honeywell 10208/2/1 is a high-performance Relay Output Module for FSC safety systems. It provides reliable switching, real-time diagnostics, and electrical isolation for critical DCS and PLC industrial automation applications.

Request a Quote

The Honeywell 10208/2/1 serves as a high-reliability relay output component within the Fail Safe Control (FSC) system architecture. This module facilitates critical interface functions between the logic solver and field-side actuators. It provides robust electrical isolation while managing switching operations for safety-instrumented functions. Engineers utilize this module to ensure discrete control across Distributed Control Systems (DCS) in hazardous or high-demand environments.

Operational Characteristics

This module integrates advanced diagnostic capabilities to monitor output integrity in real time. It supports multiple channels for redundant or independent switching configurations. The hardware design prioritizes low latency during data exchange, which is essential for maintaining safety loops. The unit effectively handles varying load types, including industrial solenoids, motor starters, and signaling devices.

Key Specifications

ParameterDetail
ManufacturerHoneywell
Model Number10208/2/1
System CompatibilityFSC (Fail Safe Control)
Device CategoryRelay Output Module
OriginUnited States
Weight0.14 kg
Dimensions20 x 188 x 128 mm
HS Code8537101190

Application and Integration

The 10208/2/1 excels in process industries requiring stringent safety standards. Common applications include emergency shutdown systems and fire and gas monitoring. Its compact form factor allows for efficient cabinet density in existing control rooms. The module supports seamless retrofitting for legacy FSC installations. Users benefit from the simplified configuration interface during initial commissioning or system expansion.
