Sale!
SKU: 51196653-100

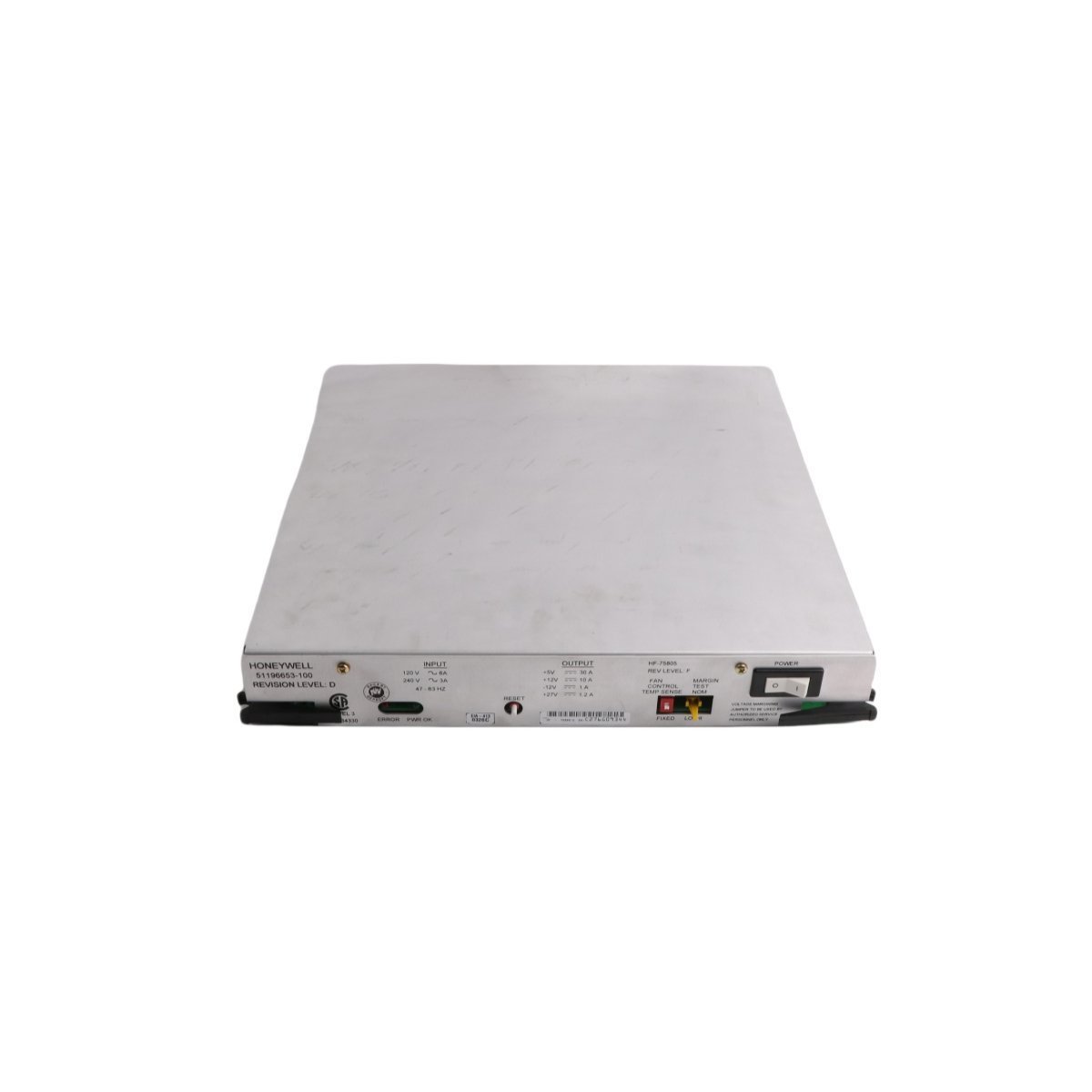

Honeywell 51196653-100 TDC 3000 Five-slot File Power Supply

The Honeywell 51196653-100 is a high-performance 24V DC power supply module designed for TDC 3000 and Experion PKS five-slot files. This industrial-grade component ensures stable power distribution and surge protection for critical DCS hardware.

Request a Quote

The Honeywell 51196653-100 serves as a critical power module for the TDC 3000 and Experion PKS Distributed Control Systems. This component provides regulated DC power to five-slot I/O files. It ensures stable voltage distribution across the backplane for process controllers and communication modules. The unit features a high-density design to maintain reliable operation within industrial cabinet environments.

Technical Specifications

FeatureSpecification
ManufacturerHoneywell
Model Number51196653-100
System CompatibilityTDC 3000 / Experion PKS
Module TypeFive-Slot File Power Supply
Input Voltage24V DC Nominal
Weight3.82 kg
Dimensions36.6 x 37.0 x 5.5 cm
Country of OriginUSA

Core Functional Characteristics

This power supply module utilizes advanced switching technology to convert primary input into clean, filtered power. It protects sensitive control hardware from voltage spikes and electromagnetic interference. The 51196653-100 includes integrated diagnostic indicators to monitor output status in real-time. This allows maintenance teams to identify power faults before they impact system uptime.

The rugged chassis design facilitates efficient heat dissipation during continuous operation. Engineers specifically built this hardware to withstand the thermal demands of high-density DCS cabinets. The module supports hot-swapping protocols in redundant configurations to prevent process interruptions.

Application and Installation

The 51196653-100 is essential for heavy industrial sectors like oil refining and chemical processing. It mounts directly into the TDC 3000 file assembly via standardized guide rails. Secure terminal connections ensure low-resistance power delivery to the bus bars. This module remains the primary choice for upgrading legacy TDC systems or maintaining modern Experion PKS installations.

Tags: ,
