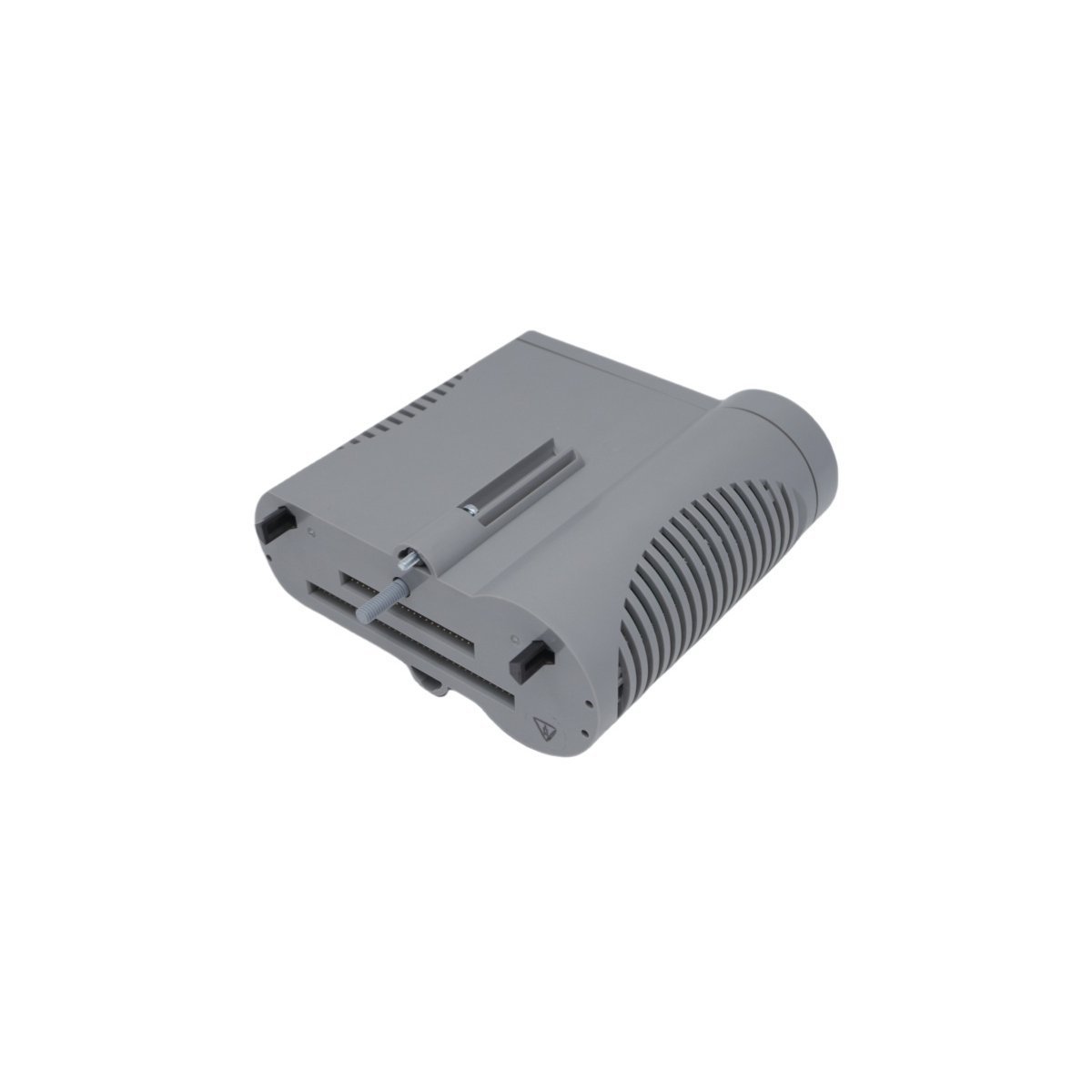

Honeywell CC-PDIL01 51405040-176 Digital Input Module

The Honeywell CC-PDIL01 functions as a high-density interface for the Experion PKS Series C architecture. This module captures discrete signals from various field devices like switches and sensors. It converts these 24V DC electrical states into digital data for the controller. Because it utilizes Series C vertical hardware, it optimizes cabinet space effectively. The module ensures high-speed data acquisition for time-critical automation tasks. Consequently, it supports stable process control in demanding industrial environments.

Core Technical Characteristics

• Adaptive Input Filtering: The hardware automatically adjusts to signal conditions to maintain high integrity.
• Advanced Noise Suppression: Integrated circuits filter out electrical interference from high-voltage machinery.
• Channel-to-Channel Isolation: Robust electrical barriers prevent cross-talk and protect the internal system bus.
• Real-time Diagnostics: Continuous self-monitoring detects field-side faults and internal hardware failures instantly.
• Series C Form Factor: The vertical mounting design facilitates efficient cooling and high-density installation.
• Low Power Consumption: Optimized electronics reduce heat generation within the control room cabinets.

Industrial Applications and Deployment

Engineers deploy the CC-PDIL01 51405040-176 in sectors requiring extreme reliability. It manages safety interlocks and status monitoring in automotive manufacturing plants. Furthermore, power generation facilities use this module for high-speed sequence-of-events recording. The hardware withstands significant vibrations and wide temperature swings during operation. Since it integrates with Experion PKS, it offers seamless configuration via the standard engineering environment. This compatibility reduces commissioning time for large-scale system upgrades.

Technical Data Summary

Operational Support and Maintenance

The CC-PDIL01 supports hot-swapping to ensure maximum process uptime during hardware replacement. This feature allow technicians to exchange modules without powering down the entire controller rack. Additionally, the clear LED status indicators provide immediate visual feedback for troubleshooting. The 51405040-176 remains a current, active product within the Honeywell DCS portfolio. Regular firmware updates through the Experion system keep the module secure and efficient. Therefore, it represents a long-term solution for sophisticated industrial automation needs.
