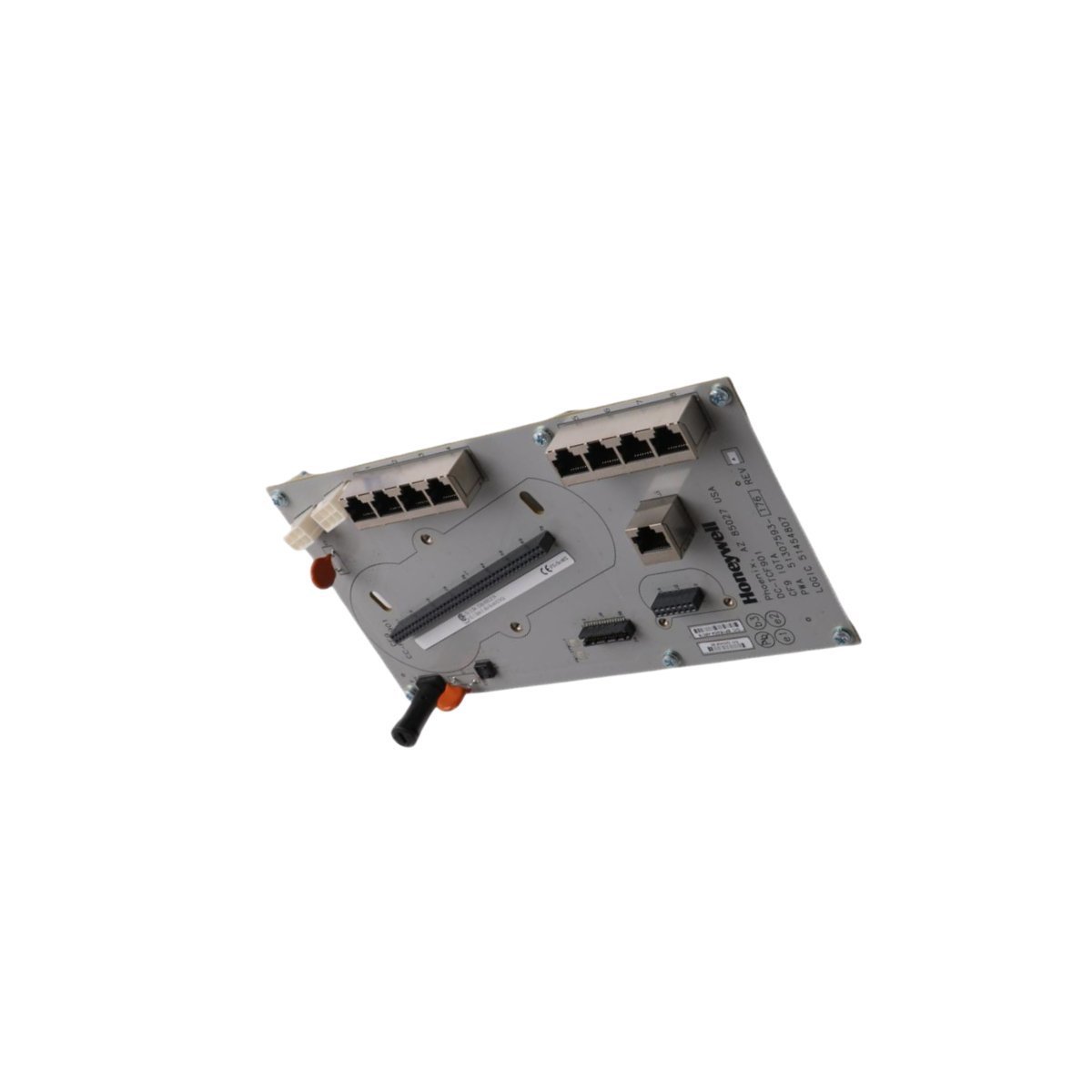

Honeywell DC-TCF901 51307593-176 Control Processor and Firewall Module

The Honeywell DC-TCF901 (51307593-176) is a versatile Processor Module and Firewall I/O Termination Assembly for DCS and safety systems. It features high-speed data processing, integrated port security, and a compact design, ensuring secure and efficient control in demanding industrial environments.

Request a Quote

Product Overview

The Honeywell DC-TCF901, identified by part number 51307593-176, functions as a high-performance Processor Module designed specifically for industrial Distributed Control Systems (DCS) and safety-critical environments. This advanced component serves a dual purpose: providing high-speed logic processing and acting as a secure Firewall I/O Termination Assembly. By integrating robust computational power with network security features, the DC-TCF901 ensures that process data remains accurate and protected from unauthorized network traffic. Consequently, it has become a fundamental building block for modern automated manufacturing and heavy processing industries.

Technical Performance and System Integration

To achieve maximum operational stability, the DC-TCF901 utilizes a high-speed data processing architecture that handles complex control algorithms with minimal latency. Moreover, the module serves as a Port Control Firewall, effectively isolating sensitive control networks from broader industrial Ethernet traffic. This integration simplifies system architecture because it combines security and processing into a single hardware footprint. Because the module is compatible with various legacy and modern backplanes, it facilitates seamless system expansions and hardware refreshes. Additionally, the user-friendly interface and modular design allow for rapid installation, which significantly reduces technical overhead during commissioning.

Technical Specifications

  • Manufacturer: Honeywell
  • Model Number: DC-TCF901
  • Part Number: 51307593-176
  • Module Type: Control Processor / Firewall I/O Termination Assembly
  • System Series: Experion PKS / Safety System
  • Physical Dimensions: 22 cm x 12 cm x 5.5 cm
  • Unit Weight: 0.22 kg
  • Communication Interface: Integrated Ethernet with Port Control
  • Country of Origin: United States (USA)
  • HS Code: 8537101190
  • Mounting Type: Backplane / Rack Mount

Industrial Application and Reliability

Honeywell engineered the DC-TCF901 to withstand the rigorous demands of harsh industrial zones, including power generation plants, chemical processing facilities, and large-scale manufacturing hubs. In these settings, the module provides long-term performance even when exposed to thermal fluctuations and electrical noise. Furthermore, since the module supports advanced diagnostics, maintenance teams can identify potential system issues before they lead to hardware failure. In addition to its durability, the DC-TCF901 plays a vital role in optimizing operational efficiency by ensuring continuous uptime. Ultimately, for facilities requiring a secure and high-quality automation solution, this processor module delivers the necessary stability for critical control applications.
