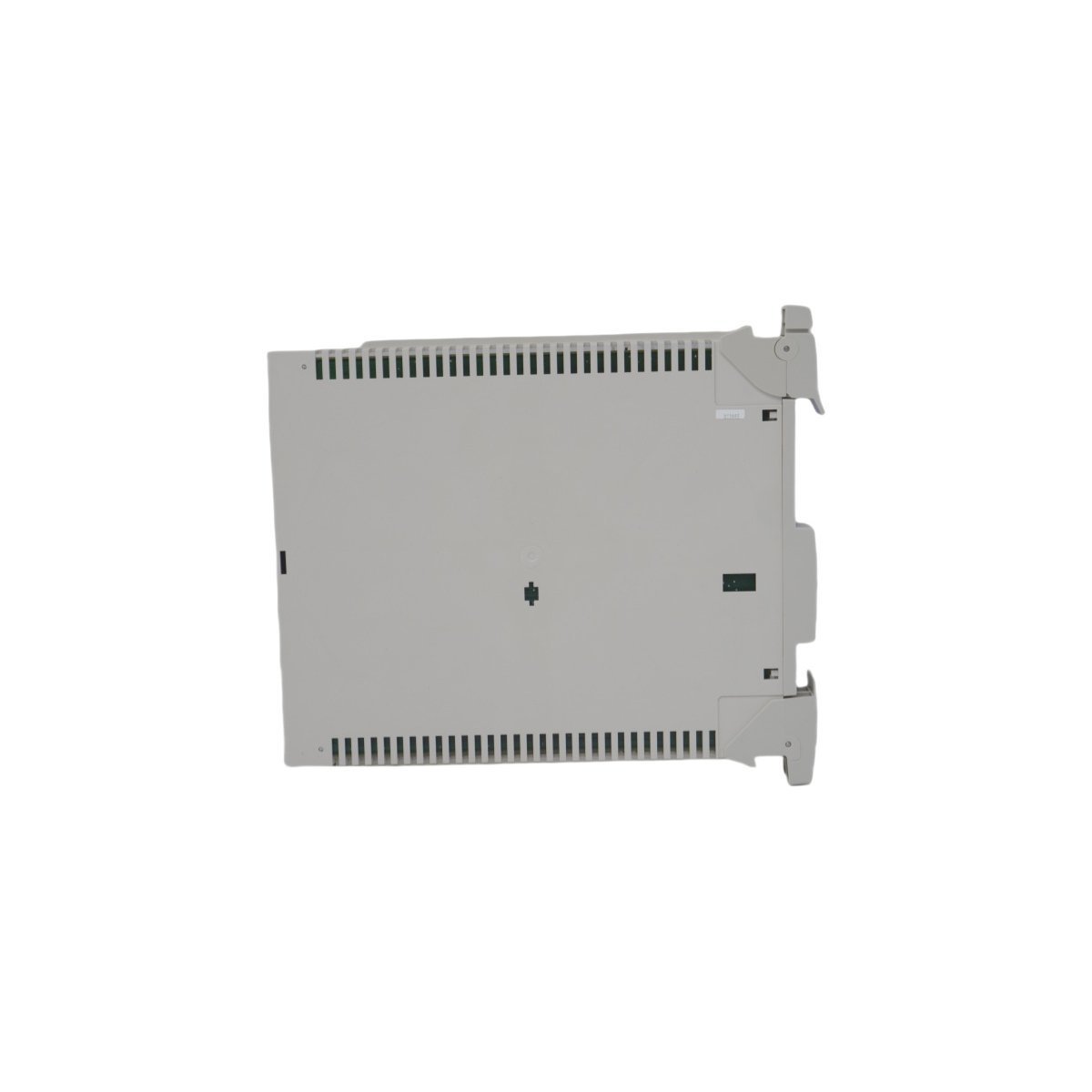

Honeywell MC-PAOX03 51309152-175 UCN Analog Output Card

The Honeywell MC-PAOX03 (51309152-175) is a high-performance UCN Analog Output Card. Designed for the MU-T series DCS, it provides precise control for actuators and valves. This USA-made module features advanced diagnostics and industrial-grade durability for mission-critical process automation.

Request a Quote

The Honeywell MC-PAOX03 (51309152-175) serves as a critical component for Universal Control Network (UCN) architectures. This analog output card converts digital processor commands into precise electrical signals for field devices. It primarily manages final control elements like valves, actuators, and motor drives. By providing stable current loops, the module maintains strict control over process variables. This capability ensures optimal performance in complex industrial loops. The card operates within the MU-T series to support legacy and modern DCS environments.

Signal Integrity and Advanced Processing

This module utilizes advanced signal processing to deliver high-resolution output data. It effectively minimizes signal drift and thermal interference during continuous operation. Consequently, operators achieve tighter control over sensitive chemical reactions and mechanical movements. The card features onboard intelligence to monitor its own circuit health. This self-diagnostic capability identifies potential channel failures before they impact production. This proactive design significantly enhances system reliability in 24/7 manufacturing cycles.

Industrial Durability and System Integration

Honeywell engineered the 51309152-175 for the most demanding industrial climates. The card withstands high vibrations and wide temperature fluctuations found in power plants. Furthermore, its hardware design ensures seamless interoperability with existing UCN infrastructure. Maintenance teams can install or replace these modules with minimal system disruption. This compatibility simplifies life-cycle management for aging DCS installations. The robust construction also provides excellent resistance to electromagnetic noise common in heavy industry.

Technical Specifications

  • Brand: Honeywell
  • Model Number: MC-PAOX03
  • Part/Order Number: 51309152-175
  • Module Type: UCN Analog Output Card
  • Product Series: MU-T Series
  • Application: Distributed Control Systems (DCS)
  • Weight: 0.58 kg
  • Dimensions: 2.9 cm x 31.9 cm x 27.9 cm
  • Manufacturing Origin: USA
  • HS Code: 8537101190
