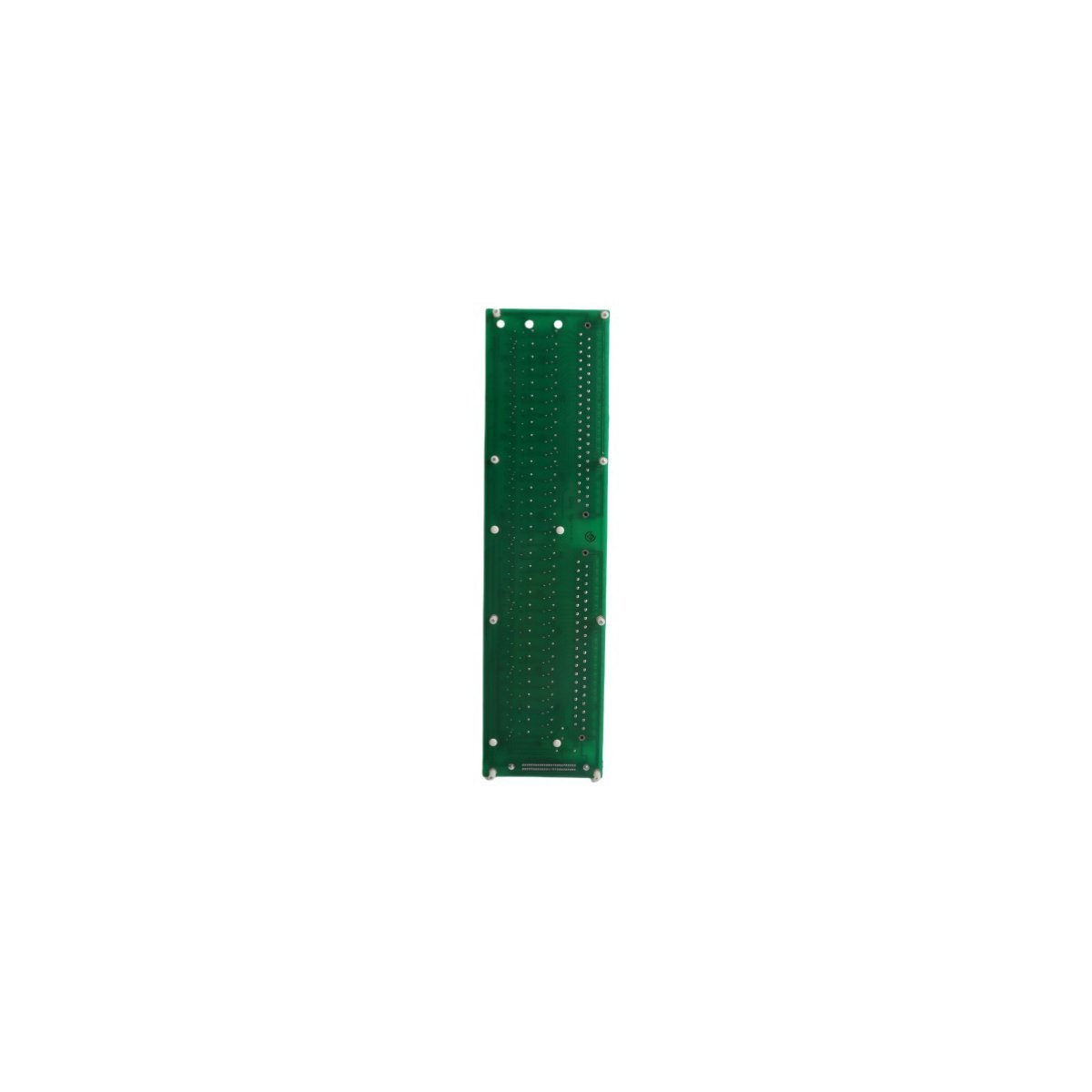

Honeywell MC-TDIA72 51303930-150 Digital Input Termination Assembly

The Honeywell MC-TDIA72 (51303930-150) is a 32-channel Digital Input Termination Assembly for HPM and TPS systems. It organizes 24V DC field signals with high-integrity conditioning, providing a rugged interface for critical DCS monitoring and safety applications.

Product Overview

The Honeywell MC-TDIA72, identified by part number 51303930-150, acts as a high-performance Digital Input Termination Assembly (DTA) for the Honeywell TotalPlant Solution (TPS) and Experion PKS environments. This board establishes a rugged physical and electrical bridge between field-level digital sensors and the High-Level Process Manager (HPM). By actively conditioning and organizing incoming discrete signals, the MC-TDIA72 guarantees that the control system processes only clean, precise data from various field contacts and switches.

Functional Performance

This termination board manages 24V DC field logic while maintaining a transparent path for signal transmission, which allows the controller to detect contact closures with absolute deterministic accuracy. Engineers designed the MC-TDIA72 specifically for mission-critical industrial loops, ensuring that the hardware supports rapid diagnostic access. Consequently, maintenance teams can verify loop integrity and perform signal testing without ever disconnecting the primary system hardware or interrupting the process flow.

Technical Characteristics

Brand: Honeywell
Model Number: MC-TDIA72
Part Number: 51303930-150
Product Type: Digital Input Termination Assembly (DTA)
System Compatibility: Honeywell TPS, Experion PKS, High-Level Process Manager (HPM)
Channel Support: 32-Channel Discrete Input capacity
Logic Voltage: 24V DC nominal
Connection Interface: High-density screw or compression terminals
Protection Rating: Supports G3 conformal coating for corrosive environments
Origin: USA

Primary Applications

Discrete Sensor Integration: Processes signals from limit switches, push-buttons, and proximity sensors in automated production lines.
Safety Interlock Management: Feeds critical status data from emergency stop circuits into the central DCS logic.
Plant-Wide Alarm Systems: Connects fire, gas, and smoke detectors to the safety monitoring infrastructure.
Equipment Status Monitoring: Tracks auxiliary contacts from motor starters and VFDs to confirm operational states across the facility.

Operational Advantages

Eliminates Signal Noise: Integrated filtering components reject electromagnetic interference, which prevents nuisance alarms and false triggers.
Streamlines Field Wiring: The organized terminal layout allows technicians to land field cables efficiently, reducing the risk of wiring errors during installation.
Enhances System Uptime: The board’s diagnostic-friendly design permits live testing, significantly lowering the Mean Time to Repair (MTTR) for field-side faults.
Maximizes Controller Safety: The MC-TDIA72 serves as a sacrificial interface that protects expensive I/O processors from field-side electrical surges and ground loops.
