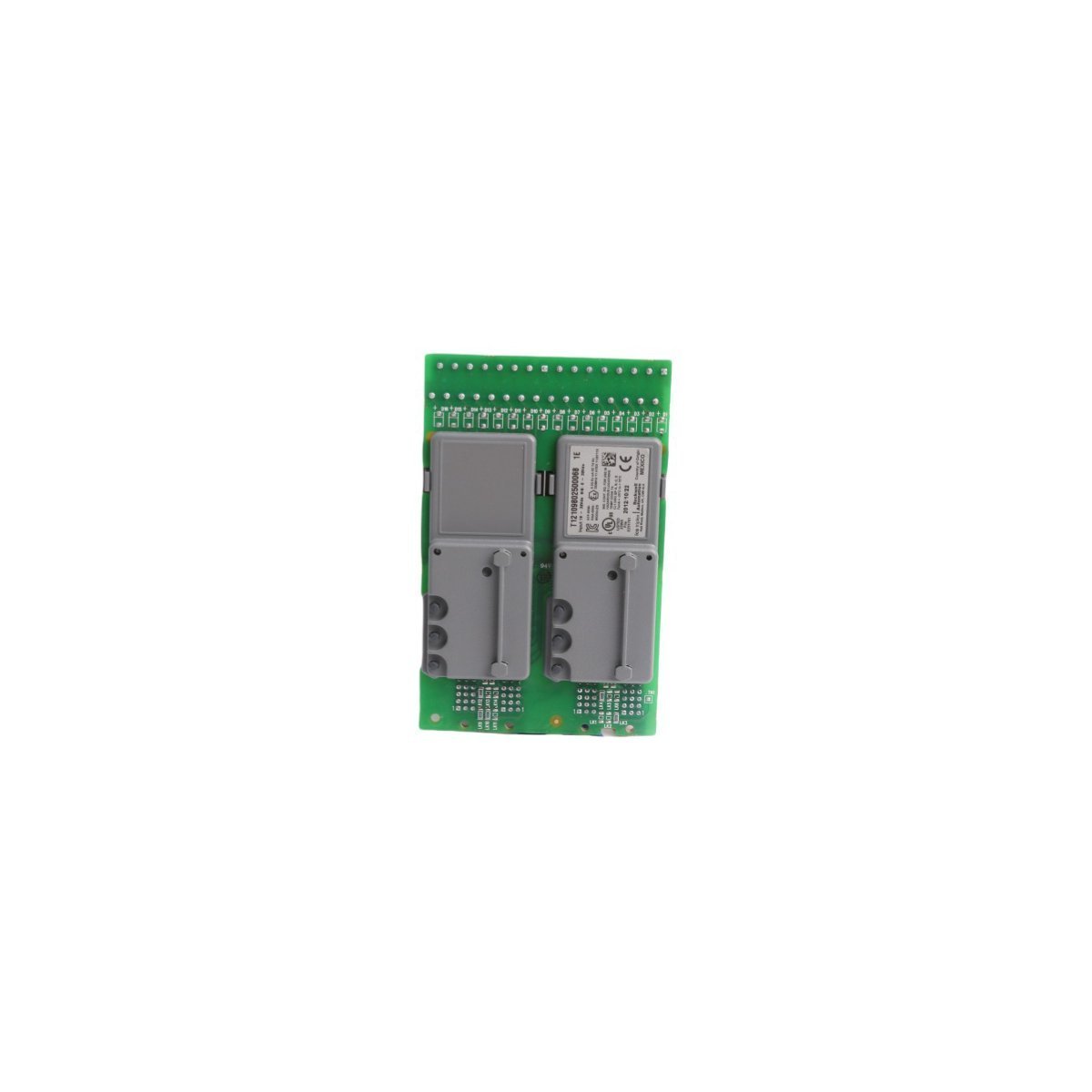

The ICS Triplex T9802 is a 16-channel Digital Input Termination Assembly for the AADvance safety system. Designed for SIL 3 applications, this robust terminal interface provides reliable field signal conditioning and secure wiring for emergency shutdown and process safety environments.
The ICS Triplex T9802 operates as a high-integrity Digital Input Termination Assembly specifically designed for the AADvance functional safety system. This module provides the critical physical interface between field-mounted sensors and the active input modules. Because the AADvance architecture prioritizes distributed safety logic, the T9802 facilitates the secure routing of discrete signals while maintaining galvanic isolation across the system. Furthermore, this assembly supports various redundancy levels, allowing engineers to configure the hardware for simplex, dual, or triple modular redundant (TMR) operation depending on the safety integrity requirement (up to SIL 3).
The T9802 manages 16 digital input channels, converting field signals into a format compatible with the AADvance controller. To ensure maximum signal precision, the board utilizes passive circuitry to condition incoming 24 VDC signals, effectively filtering out electromagnetic interference (EMI). Moreover, since the termination assembly acts as the landing point for field cables, it incorporates robust screw-terminal blocks that simplify wiring tasks. Consequently, this organized interface reduces the risk of wiring errors during installation or maintenance.
In addition to its routing functions, the T9802 supports comprehensive line monitoring when used with compatible input modules. This capability allows the system to detect open circuits or short circuits in the field wiring instantly. Furthermore, the unit features a compact, rail-mounted footprint that maximizes cabinet space efficiency. Because ICS Triplex manufactured this assembly using industrial-grade materials, the hardware withstands the vibration and thermal fluctuations common in offshore platforms and chemical refineries. As a result, the T9802 delivers a stable and durable foundation for safety-critical monitoring and process control.
| Parameter | Specification |
|---|---|
| Model | 2094-BM02-S |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 3.5 x 13 x 14.5 cm |
| Operating Temp | 0 to +50 deg C (Standard Industrial Range) |
| Power Consumption | 650 VDC nominal input / 115 Ohm internal shunt resistor |
| Module Type | Servo Drive (Axis Module) |
| Product Range | ControlLogix / Kinetix 6000 |
| System Classification | PLC Motion Control |
| Continuous Current | 10.3 A (RMS), 14.6 A (Sine Peak) |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Frequency | 1300 Hz |
| Efficiency Rating | 98% |
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
