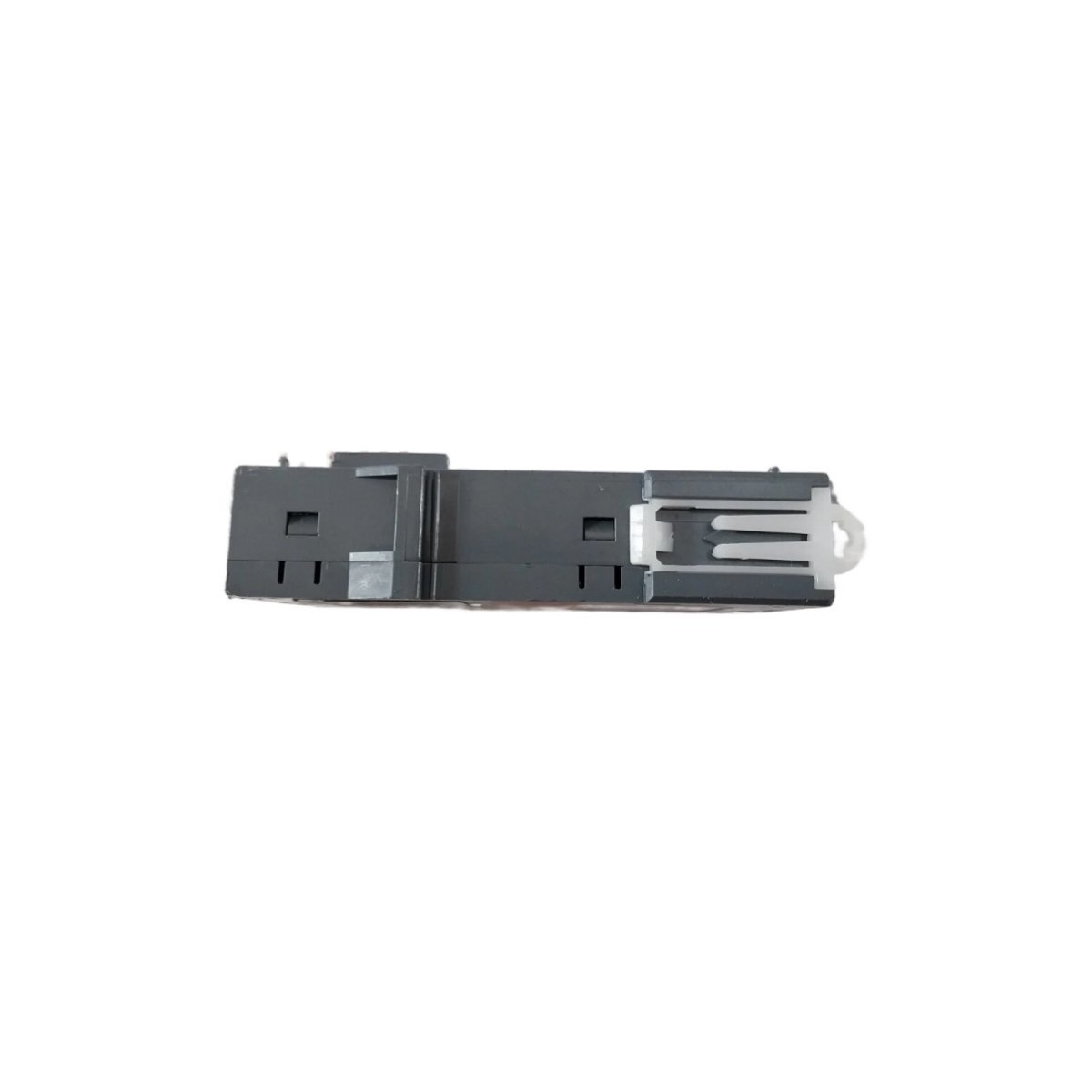

Honeywell MLF-AD08A Analog Input Module

The Honeywell MLF-AD08A serves as a core expansion component for the MasterLogic-50 PLC platform. This module precisely converts external analog signals into digital data for the controller. It supports eight independent channels to monitor various industrial sensors simultaneously. Furthermore, the hardware handles diverse signal types to ensure broad compatibility across different process environments. It provides a reliable link between field instrumentation and the central control logic.

Technical Specifications

Precise Signal Conversion and Data Processing

This unit utilizes a high-performance 12-bit converter to maintain data accuracy. Consequently, the PLC receives highly detailed information regarding temperature, pressure, or flow. Programmers can choose from four different data output formats. These options include signed integers, unsigned integers, engineering units, or percentage values. Such flexibility simplifies the integration process for complex automation software. The module ensures consistent performance by utilizing high-impedance inputs to prevent signal loading.

Advanced Industrial Reliability

Honeywell engineered the MLF-AD08A to withstand the electrical noise found in manufacturing plants. Each channel features internal protection to safeguard the PLC backplane from external faults. Moreover, the compact design allows for high-density I/O configurations in small control cabinets. The module maintains excellent linearity and stability over its entire operating range. These characteristics make it suitable for mission-critical applications in energy management and factory automation.

Versatile Field Applications

• Real-time monitoring of industrial temperature and pressure sensors.
• Integration of flow meters and level transmitters into PLC logic.
• High-speed data acquisition for manufacturing process control.
• Analog signal monitoring in HVAC and energy management systems.
