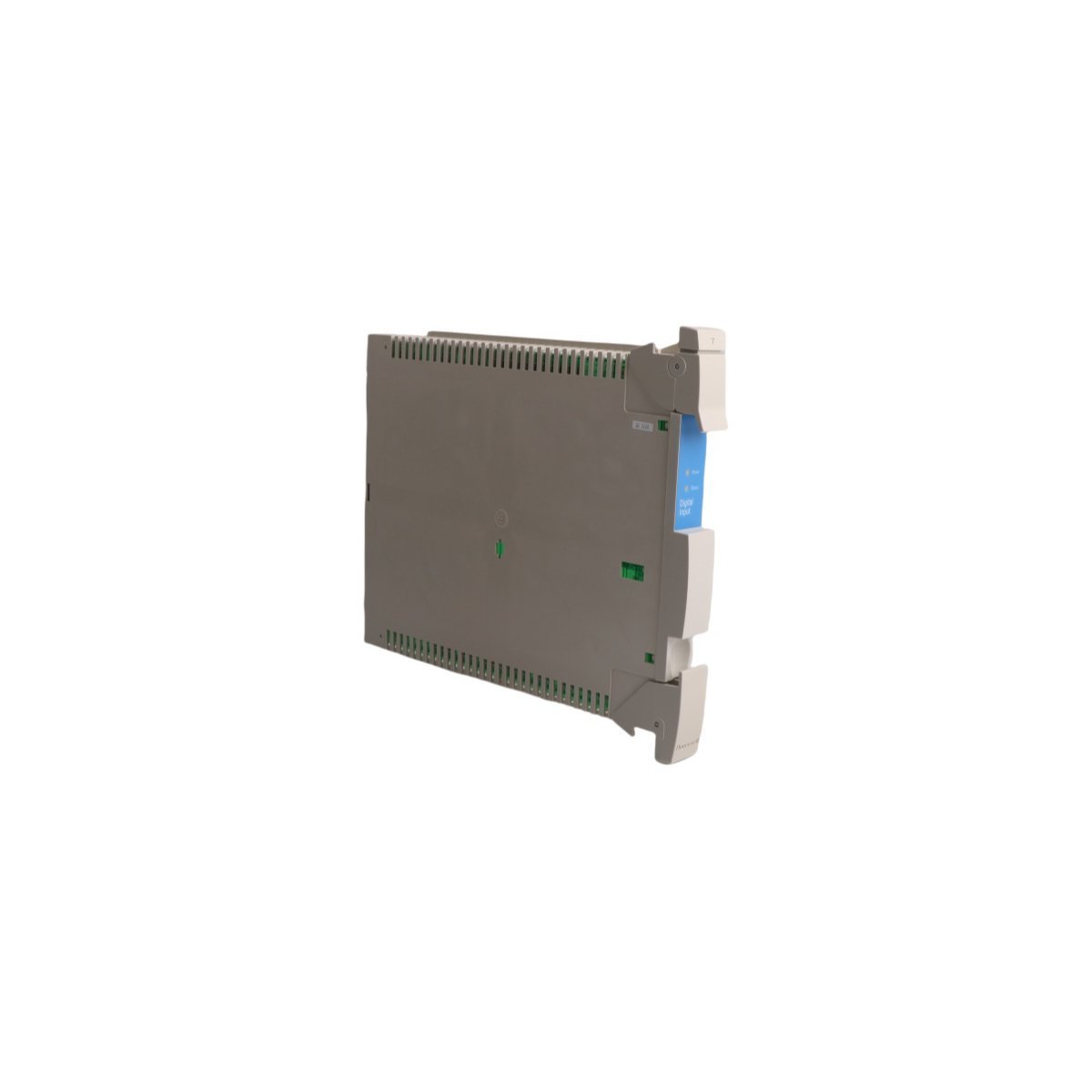

Honeywell MU-PDIX02 51304485-100 Digital Input Processor

Technical Specifications

Primary Function and System Role

The Honeywell MU-PDIX02 51304485-100 functions as a high-density interface for discrete signal acquisition. This module captures digital data from field devices like limit switches and push buttons. It translates external binary states into system-readable data for the TDC 3000 and Experion PKS environments. Consequently, the processor enables precise monitoring of real-time process states and safety interlocks.

Core Technical Characteristics

This Digital Input Processor provides 16 independent channels for versatile field connectivity. Each input utilizes robust isolation circuitry to protect the controller from electrical noise. The module operates reliably across an extended temperature range of -40°C to +85°C. Furthermore, the IP20-rated housing safeguards internal components against particulate ingress in industrial cabinets.

Integration occurs smoothly via the integrated RS-485 communication interface. This standard protocol ensures high-speed data synchronization with the primary DCS network. The design focuses on energy efficiency with a power draw under 5 watts. Moreover, the slim profile optimizes rail space within high-density control enclosures.

Application Environments

The MU-PDIX02 51304485-100 serves critical roles in manufacturing and chemical processing plants. It excels in monitoring system functions where timing and reliability are paramount. Maintenance teams often select this module for its proven durability in harsh environments. Its plug-and-play compatibility simplifies the replacement of legacy hardware in active systems.
