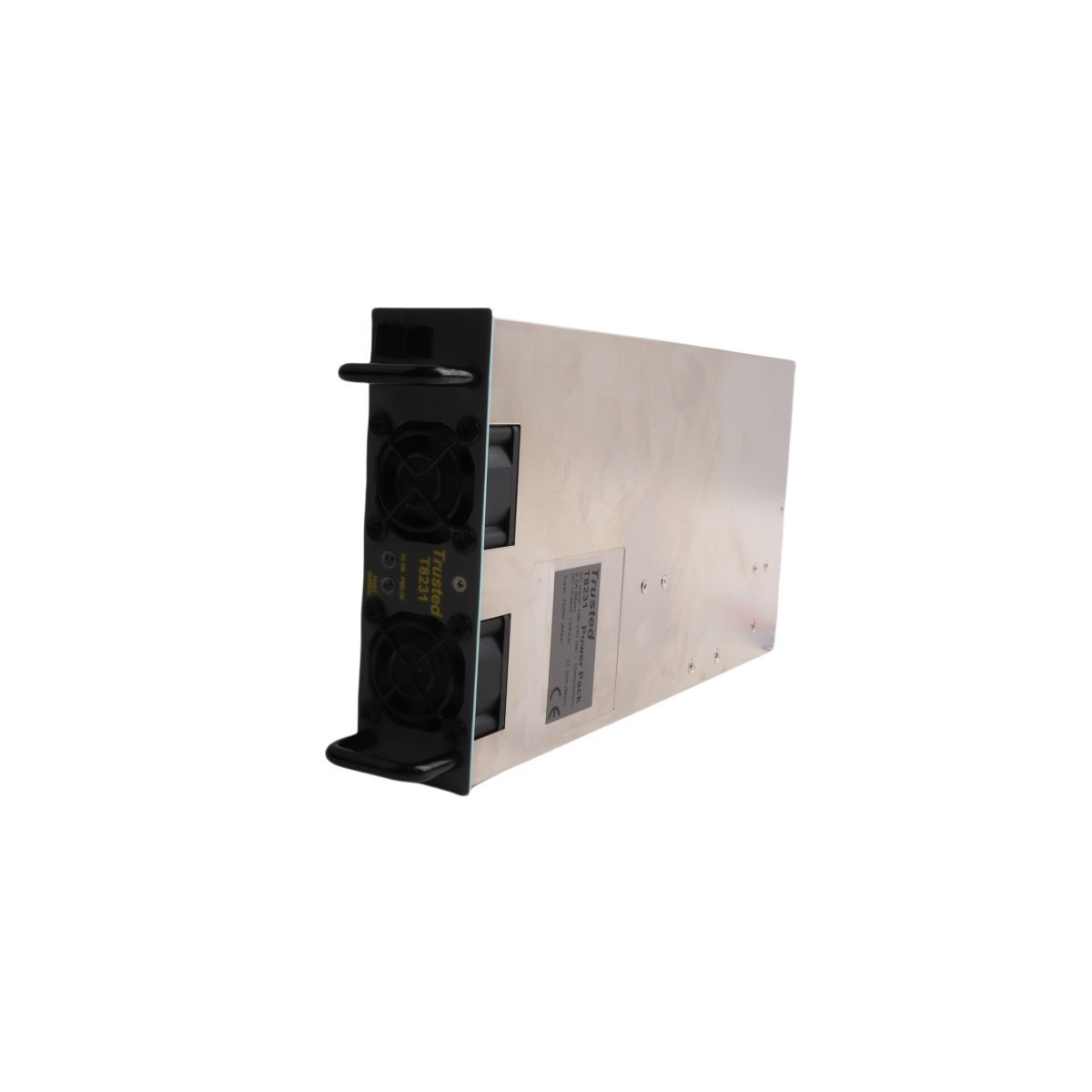

ICS Triplex Trusted T8231 Power Pack Module

The ICS Triplex T8231 is a redundant, hot-swappable Power Pack designed for the Trusted TMR system. It delivers stable, regulated DC power to the system chassis and features advanced diagnostics to ensure continuous operation of safety-critical controllers.

Request a Quote

Product Overview

The ICS Triplex T8231 functions as a high-efficiency Power Pack specifically engineered to provide regulated DC power to the Trusted Triple Modular Redundant (TMR) System. Primarily, this module converts external AC or DC source power into the precise voltage levels required by the Trusted chassis and its associated I/O modules. Consequently, it serves as the foundational energy source for the entire safety system, ensuring that critical controllers and communication links remain energized. By incorporating a heavy-duty industrial design, the T8231 maintains a stable power supply even when subjected to the fluctuations common in large-scale industrial electrical grids.

Technical Performance and Functional Features

  • Redundant Load Sharing: In addition to its primary power conversion role, the T8231 supports parallel operation with multiple power units. As a result, the system automatically balances the electrical load across all active Power Packs, which significantly extends the lifespan of internal components.
  • Fault-Tolerant Architecture: Furthermore, the module facilitates seamless power redundancy. Thus, if one Power Pack fails, the remaining units immediately assume the full load without causing a system reset or interrupting safety-critical logic.
  • Comprehensive Diagnostic Monitoring: To ensure operational visibility, the T8231 utilizes integrated sensors to monitor output voltage, current levels, and internal temperature. Moreover, it communicates this status data to the Trusted Controller, allowing operators to identify power irregularities before they lead to system downtime.
  • Overvoltage and Overcurrent Protection: Regarding hardware security, the module incorporates robust protection circuitry that shields the system backplane from electrical surges. Consequently, it prevents external power faults from damaging sensitive microprocessor-based modules.
  • Hot-Swappable Capability: To simplify maintenance routines, the hardware supports online replacement. Therefore, technicians can remove and replace a faulty T8231 unit while the system remains fully operational, thereby maintaining 100% process uptime.

Operational Compatibility and Integration

System engineers seamlessly install the T8231 into the dedicated power slots of the Trusted Controller Chassis or Expansion Chassis. In addition to its physical reliability, the module features front-panel status indicators that provide instant visual confirmation of health and load status. Furthermore, because the T8231 adheres to the strict safety and environmental standards of the Trusted TMR platform, it successfully meets the reliability requirements of high-risk industries such as offshore oil platforms and nuclear power facilities. Ultimately, these features combine to provide a dependable and resilient power infrastructure for mission-critical automation.

Technical Specifications Summary

  • Manufacturer: ICS Triplex (Rockwell Automation)
  • Model Designation: T8231
  • Product Series: Trusted TMR System
  • Module Type: Power Pack / Power Supply Module
  • Output Configuration: Regulated DC for Trusted Backplane
  • Redundancy: Supported (N+1 or N+N configurations)
  • Cooling: Forced Air / Convection
  • Mechanical Format: Chassis-mounted Plug-in Module
  • Status Indicators: LED for Power OK, Over-temp, and Fault
