SKU: T8431CX

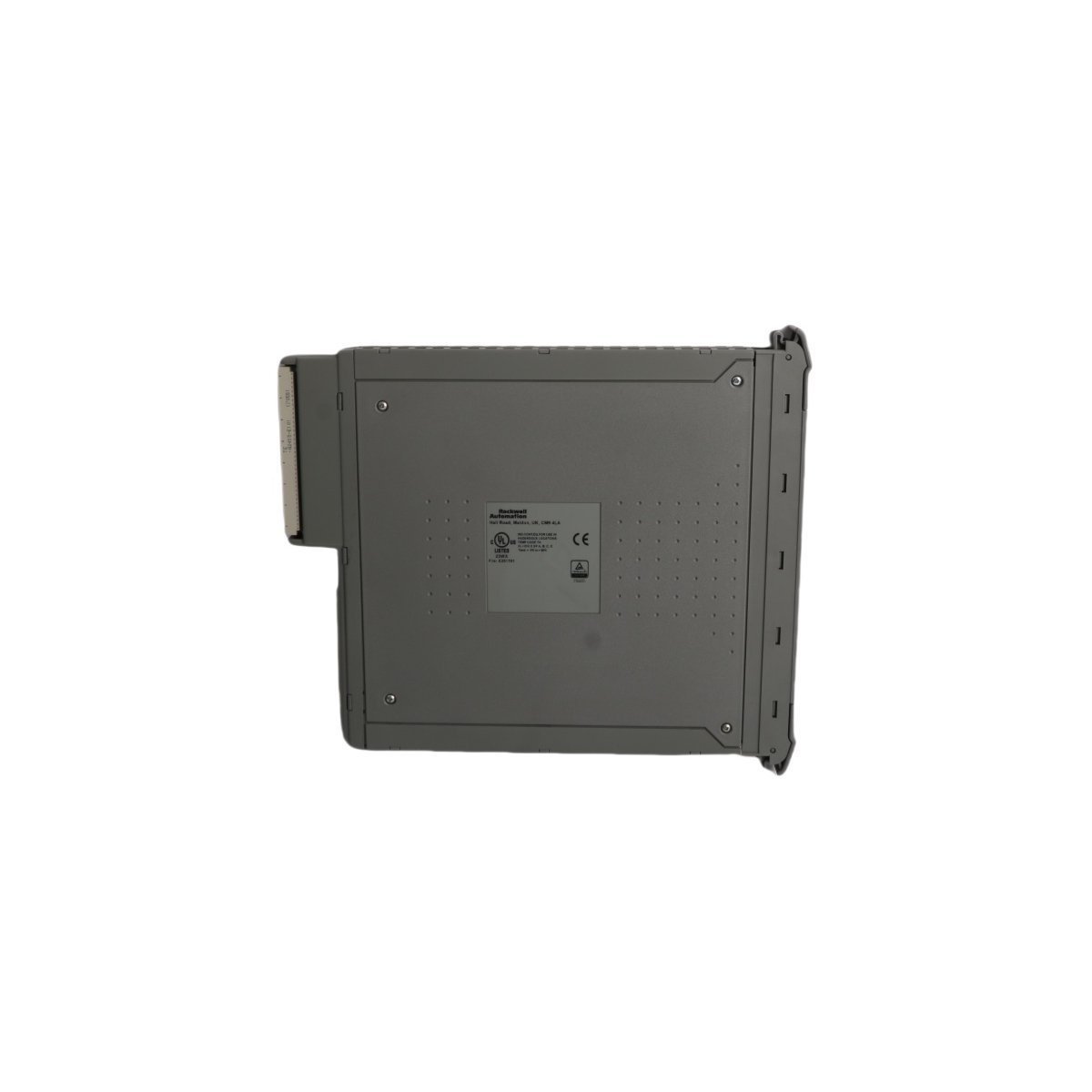

ICS Triplex Trusted T8431CX 40-Channel Analog Input Module

The ICS Triplex T8431CX is a 40-channel triplicated analog input module designed for the Trusted TMR system. It provides SIL 3-rated safety monitoring with integrated line diagnostics and high-speed signal processing for mission-critical industrial applications.

Product Overview

The ICS Triplex T8431CX functions as a high-density, 40-channel analog input interface specifically engineered for the Trusted Triple Modular Redundant (TMR) System. Primarily, this module captures precision signals from field-side transmitters and sensors, converting them into digital data for the triplicated controller. Consequently, it serves as the primary data acquisition point for critical process variables such as pressure, temperature, and flow. By utilizing the proprietary “CX” high-performance architecture, the T8431CX delivers the extreme reliability and fault tolerance required for Safety Instrumented Systems (SIS) in high-risk environments.

Technical Performance and Functional Features

Triplicated Signal Processing: In addition to its high channel count, the module processes every input across three independent paths. The system then executes a majority voting algorithm, which ensures that a single hardware fault never compromises the accuracy of the process data.
Extensive Internal Diagnostics: Furthermore, the T8431CX performs continuous self-tests to identify both overt and hidden failures. Because the module monitors its own health in real-time, it maintains the highest levels of safety integrity without requiring manual intervention.
Integrated Line Monitoring: To secure the field-to-module connection, the hardware detects open-circuit and short-circuit conditions on the field wiring. As a result, operators receive immediate alerts regarding cabling issues, preventing the system from acting on corrupted or missing signals.
On-Board Galvanic Isolation: Regarding electrical protection, the module incorporates robust isolation barriers that shield the internal system bus from field-side transients. Thus, it prevents external electrical noise from affecting the stability of the central safety processor.
High-Resolution Data Conversion: To ensure control precision, the module utilizes advanced analog-to-digital converters that provide high-resolution signal mapping. Moreover, it maintains low drift and high accuracy across a broad industrial temperature range.

Operational Compatibility and Integration

System architects seamlessly deploy the T8431CX into standard Trusted Controller or Expansion Chassis slots. In addition to its plug-and-play hardware design, the module integrates fully with the Trusted toolset, which allows engineers to configure scaling, thresholds, and alarm limits through an intuitive software interface. Furthermore, the T8431CX supports hot-standby and online repair configurations. Consequently, maintenance personnel can replace a module while the process remains active, thereby eliminating the need for costly production shutdowns. Because this module complies with SIL 3 requirements, it successfully meets the stringent safety standards of the global petrochemical and subsea sectors.
