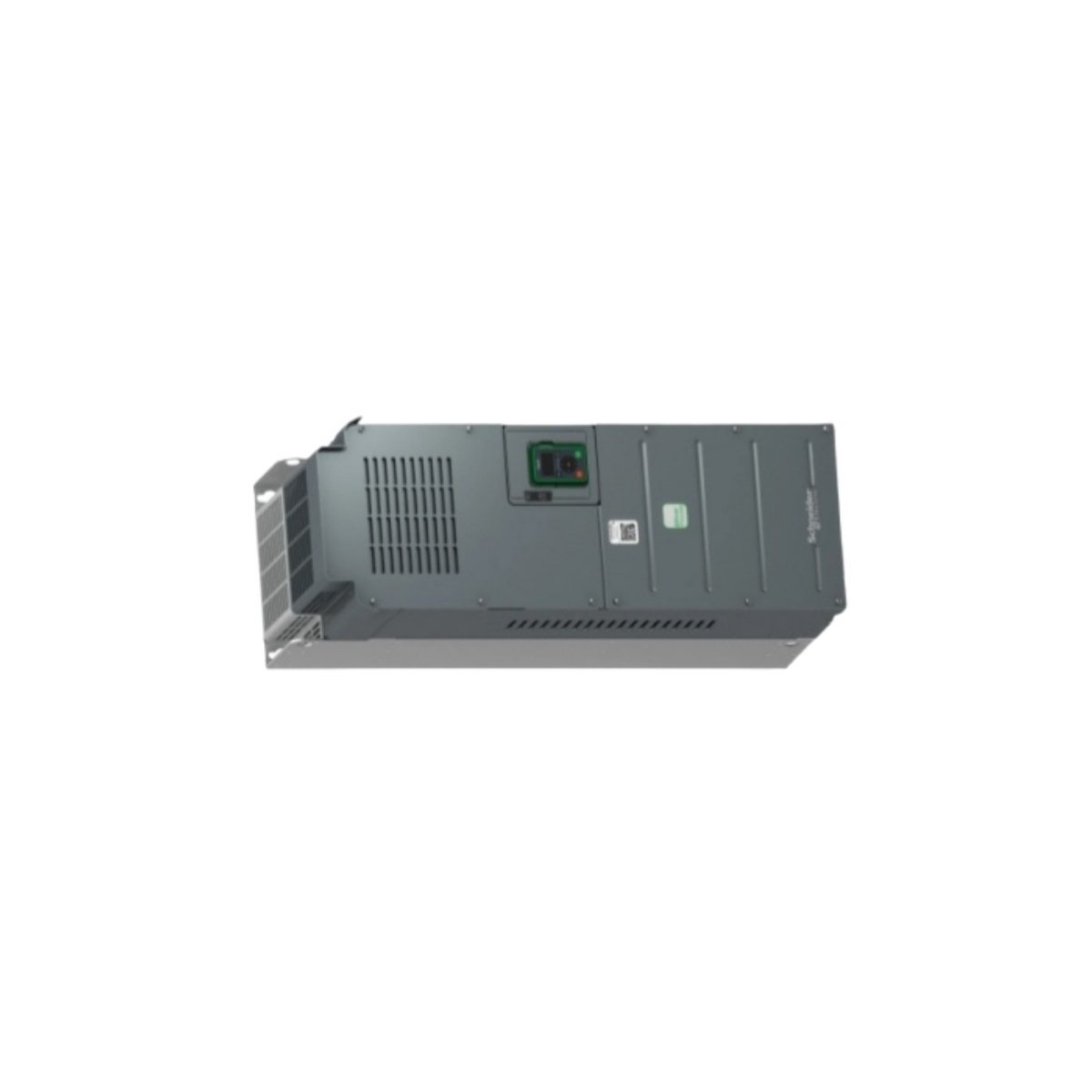

The Schneider Electric ATV610C16N4 is a 160kW (215HP) frequency inverter. This Easy Altivar 610 drive optimizes pump and fan control for 380-415V industrial systems.
The Schneider Electric ATV610C16N4 is a specialized frequency inverter within the Easy Altivar 610 family. This 160kW drive provides efficient control for three-phase asynchronous motors in various industrial environments. It operates primarily within a 380V to 415V AC voltage range. Moreover, the plug-and-play design allows for rapid commissioning using factory-preset parameters. This model serves as a reliable solution for optimizing pump and fan performance in heavy-duty sectors.
| Feature | Detailed Specification |
| Manufacturer | Schneider Electric |
| Model Number | ATV610C16N4 |
| Rated Power (Normal Duty) | 160 kW (215 HP) |
| Rated Power (Heavy Duty) | 132 kW (175 HP) |
| Nominal Output Current | 302 A (Normal Duty) |
| Frequency Range | 0.1 Hz to 500 Hz |
| Cooling System | Forced convection via internal fans |
| Enclosure Rating | IP20 / UL Type 1 |
The ATV610C16N4 excels in managing fluid and air handling systems. It supports multiple motor control profiles to match specific torque requirements. Additionally, the unit provides 16 preset speeds for complex operational cycles. The adjustable switching frequency helps reduce motor noise and electrical stress. Consequently, users can fine-tune the drive to suit compressors, conveyors, and centrifugal pumps. These features ensure stable operation across the water treatment and oil industries.
Seamless system connectivity remains a major advantage of the ATV610C16N4 architecture. The drive includes a standard Modbus serial port for immediate network linking. Furthermore, an expansion slot supports optional modules like Profibus DP V1 and I/O extensions. This flexibility allows the drive to integrate into diverse PLC-managed automation systems. The unit also features an integrated EMC filter to minimize electromagnetic interference. Therefore, it maintains high signal integrity within crowded electrical control cabinets.
Engineered for longevity, the ATV610C16N4 weighs approximately 82kg and features a robust metal frame. The forced convection cooling system manages internal temperatures during continuous full-load operation. Moreover, the drive includes comprehensive protection against overcurrent, overvoltage, and thermal overloads. These integrated safeguards prevent expensive motor damage and reduce maintenance costs. The large physical dimensions facilitate easy access to power terminals for secure installation. This drive represents a dependable investment for large-scale building and process management.
