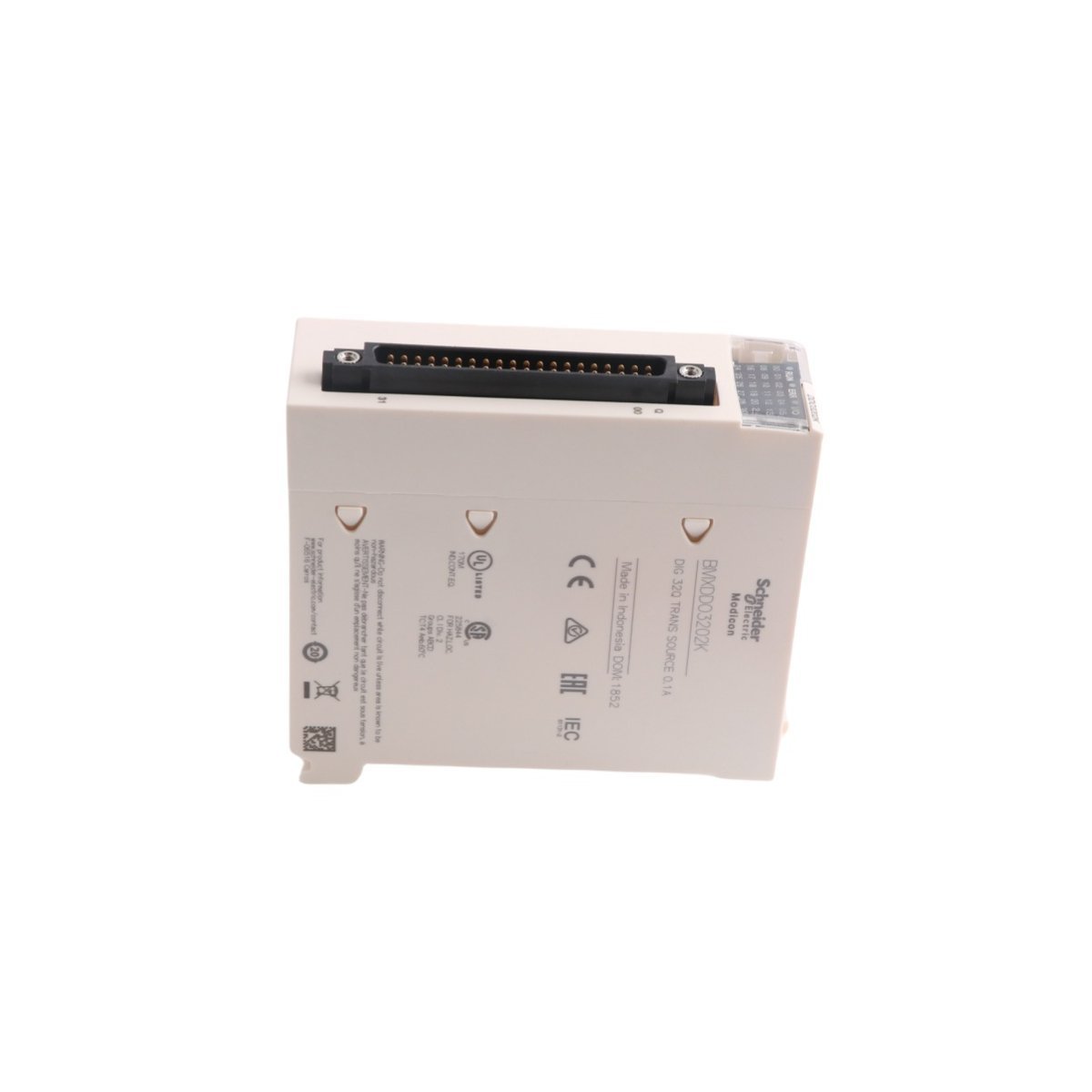

Schneider Electric BMXDDO3202K Modicon X80 Discrete Output Module

Product Overview

The Schneider Electric BMXDDO3202K is a high-density, 32-channel discrete output module specifically engineered for the Modicon X80 automation platform. This module serves as a critical interface in Modicon M340 and M580 PLC systems, allowing the controller to manage multiple field devices simultaneously. By utilizing solid-state transistor technology, the BMXDDO3202K offers rapid switching speeds and a significantly longer operational life compared to traditional relay modules. Its compact, single-slot design is ideal for space-constrained control cabinets where high I/O density is required.

Functional Capabilities

• High-Density Control: Provides 32 discrete output channels in a single slot, effectively doubling the capacity of standard 16-channel modules and reducing the physical footprint of the PLC rack.
• Solid-State Reliability: Features 24V DC transistor outputs with Positive Logic (Source). This design ensures that when an output is active, the module “sources” current to the load, which is a standard safety preference in many industrial regions.
• Electrical Precision: Maintains high efficiency with a low voltage drop (less than 1.5V) and minimal leakage current (less than 0.1mA), ensuring that connected actuators like solenoids or indicators receive clean, stable power.
• Robust Isolation: Offers superior electrical safety with an insulation resistance exceeding 10MΩ at 500V DC. This isolation prevents electrical noise or faults in the field from affecting the sensitive backplane electronics.
• Thermal Management: Engineered for energy efficiency, the module dissipates only 3.6W of power at full load. This low heat output allows it to operate reliably in ambient temperatures up to 60°C (140°F) without external cooling.

Technical Specifications

• Manufacturer: Schneider Electric
• Model Number: BMXDDO3202K
• Product Range: Modicon X80 (Compatible with M340 and M580)
• Discrete Output Number: 32 Channels
• Discrete Output Type: Transistor (Solid-state)
• Discrete Output Logic: Positive (Source)
• Rated Supply Voltage: 24V DC
• Current per Channel: 0.1A
• Total Maximum Current: 3.2A per module
• Protection Type: IP20
• Operating Temperature: 0°C to 60°C
• Weight: 0.12 kg
• Dimensions: 3.1 x 10.5 x 10.3 cm

Primary Applications

Industrial automation engineers typically deploy the BMXDDO3202K in environments requiring high-speed, repetitive switching where mechanical relays would fail prematurely. It is extensively used in:

• Automated Packaging: Controlling high-speed sorters, pneumatic valves, and labeling equipment.
• Material Handling: Driving small contactors and signal lamps across large-scale conveyor systems.
• Process Control: Interfacing with distributed actuators in water treatment and chemical processing plants.
• Manufacturing: Managing high-density sensor/actuator clusters in automotive assembly lines.
